Test F: Door Lock Inhibit Inoperative: Notes

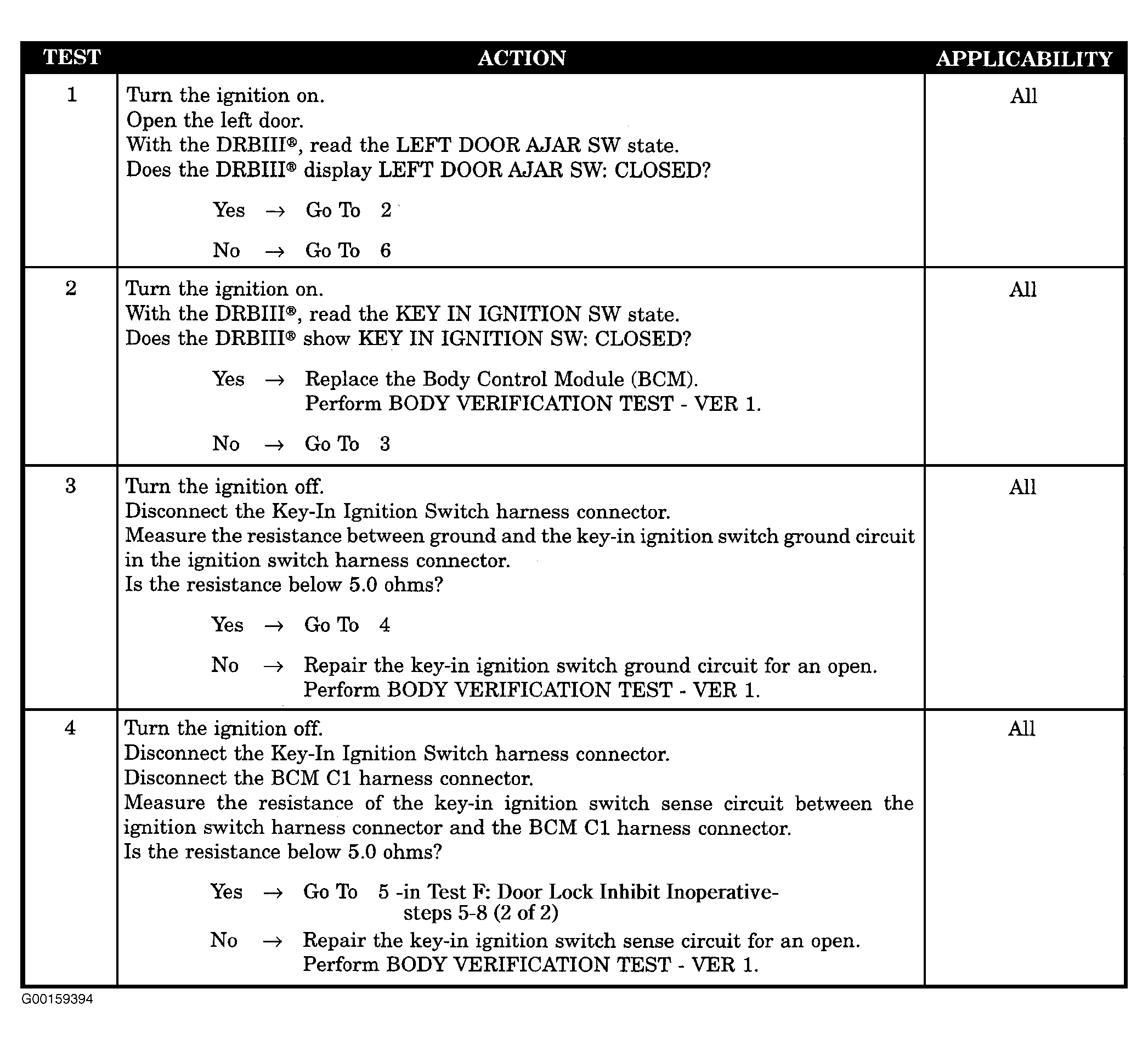

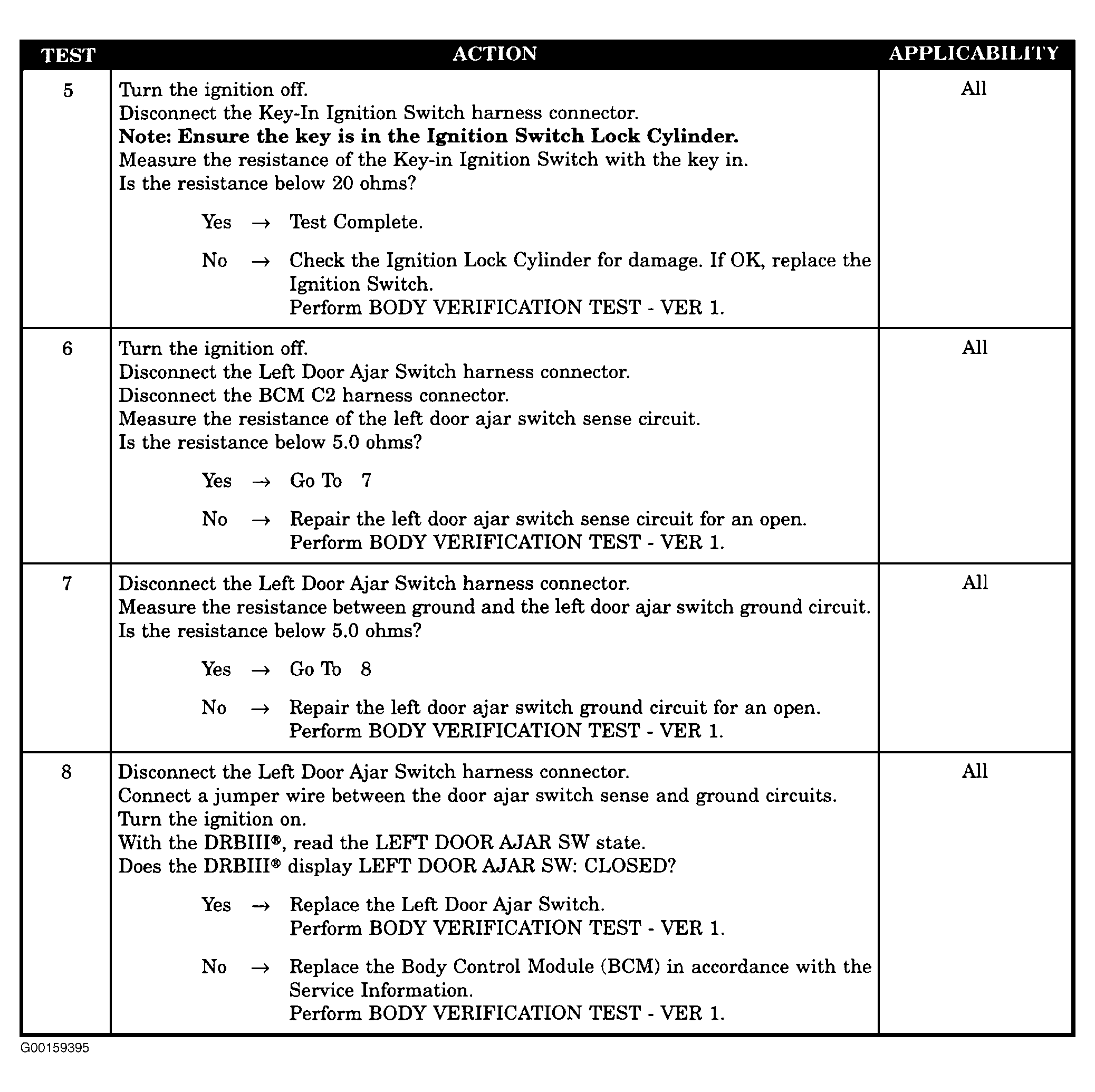

For door lock inhibit inoperative diagnostic procedures, see Figure and Figure . For component locations, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For circuit and wiring diagrams, see WIRING DIAGRAMS .
