Test C: Automatic Door Locks Inoperative: Notes

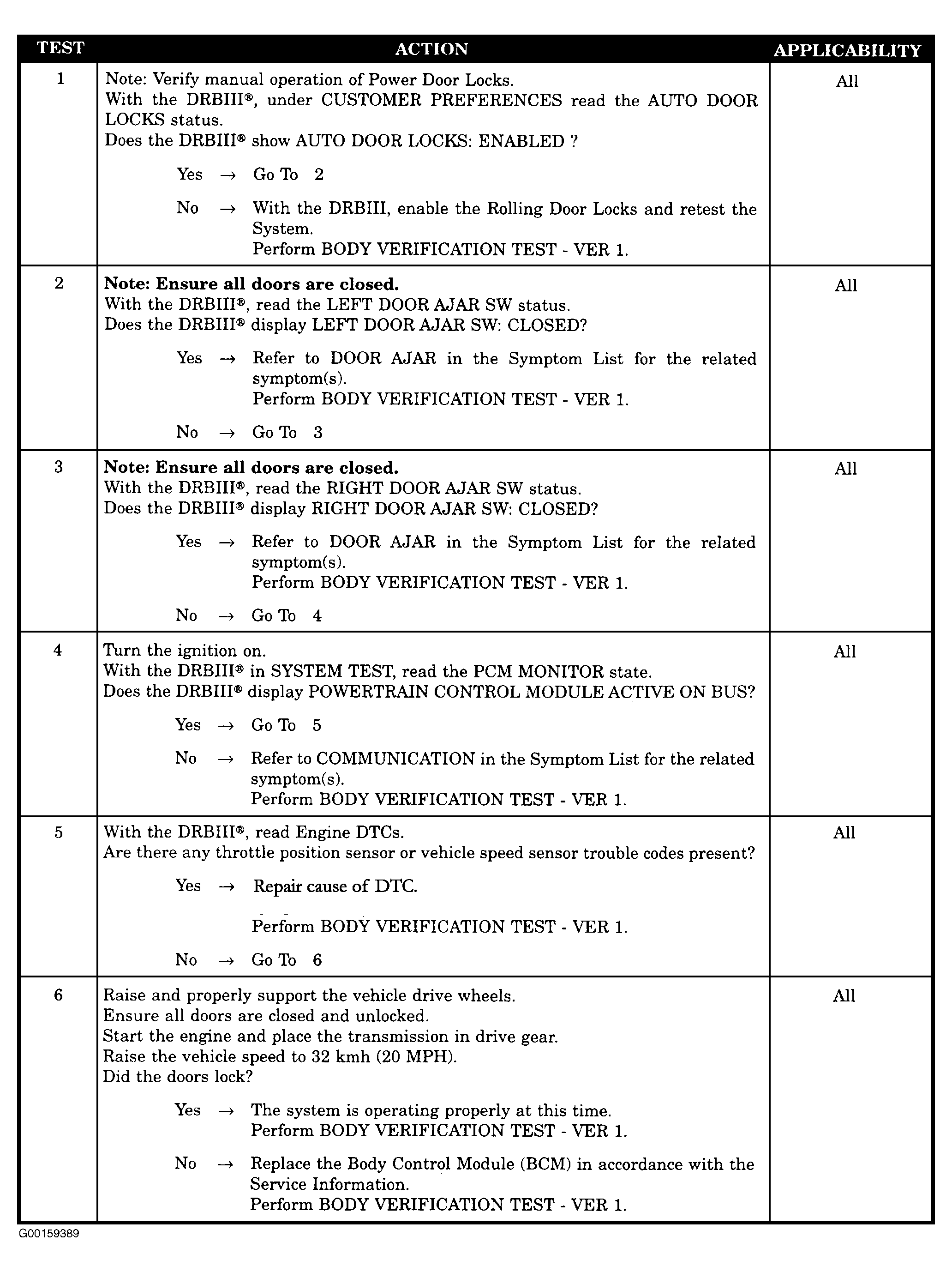

For automatic door locks inoperative diagnostic procedures, see Figure. For component location, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For circuit and wiring diagrams, see WIRING DIAGRAMS .
