Crankshaft Position Sensor: Installation

1. If reusing crankshaft position sensor, clean old paper spacer from crankshaft end of crankshaft position sensor. See Fig 4. Install NEW paper spacer on crankshaft end of crankshaft position sensor. On all crankshaft position sensors, install crankshaft position sensor.
2. Push crankshaft position sensor fully downward. Install and tighten retaining bolt to specification while holding crankshaft position sensor downward. See TORQUE SPECIFICATIONS . Install electrical connector.

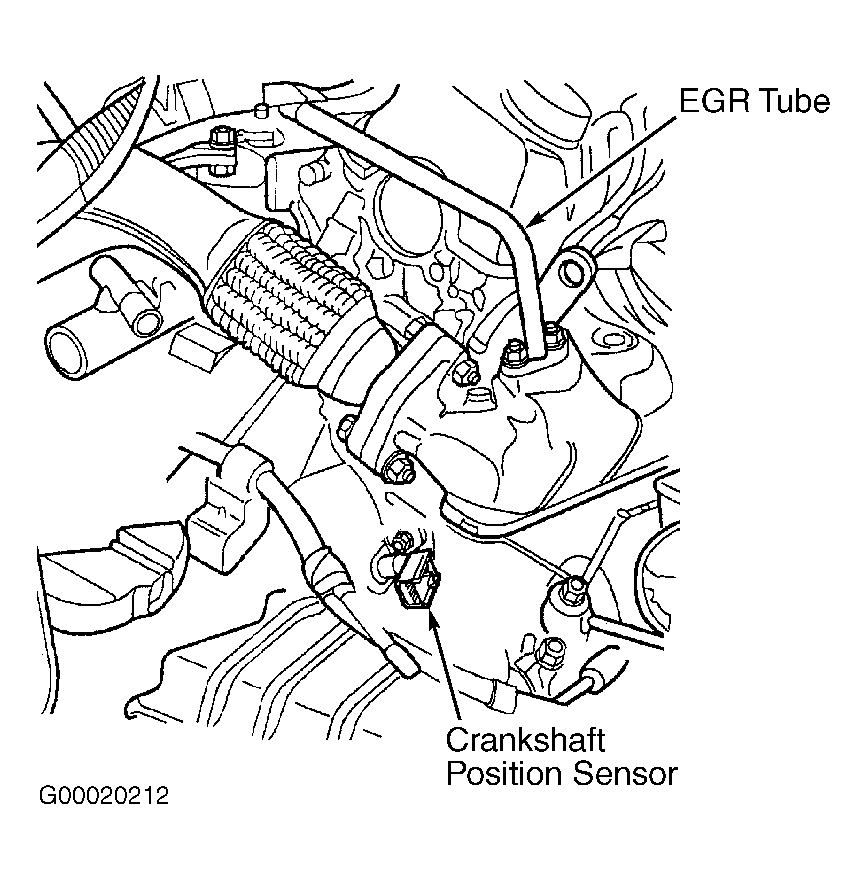

Fig 1: Locating CKP Sensor (2.4L)

Courtesy of DAIMLERCHRYSLER CORPORATION

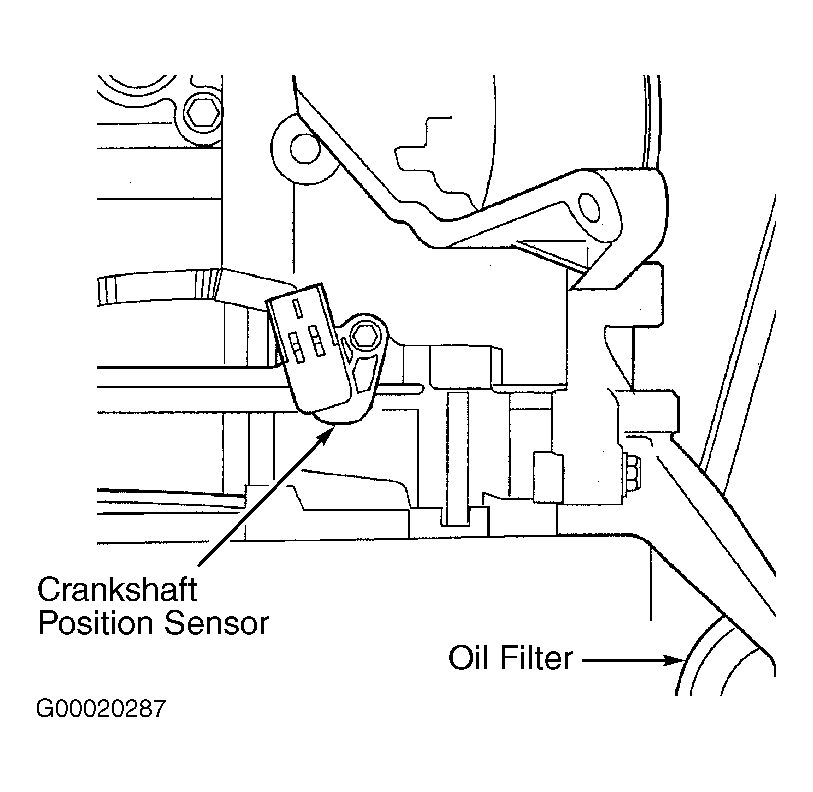

Fig 2: Locating CKP Sensor (3.0L)

Courtesy of DAIMLERCHRYSLER CORPORATION

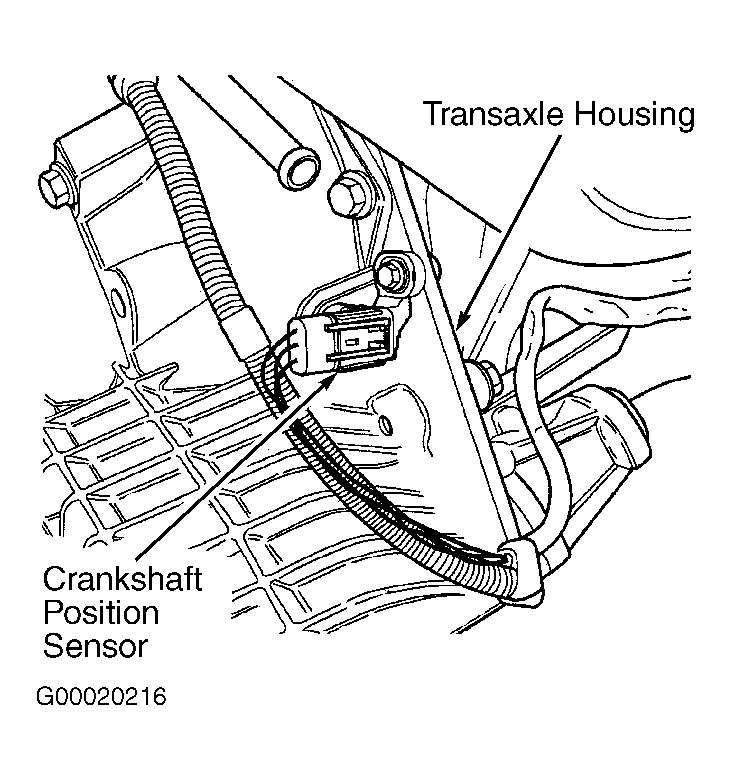

Fig 3: Locating CKP Sensor (3.3L & 3.8L)

Courtesy of DAIMLERCHRYSLER CORPORATION

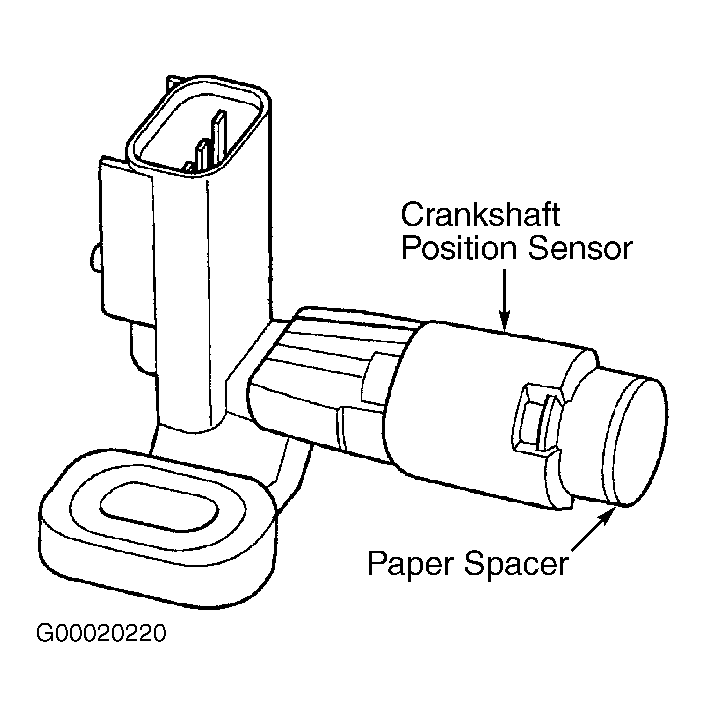

Fig 4: Identifying Paper Spacer On CKP Sensor (2.4L, 3.0L, 3.3L & 3.8L)

Courtesy of DAIMLERCHRYSLER CORPORATION
