Wiring Diagrams

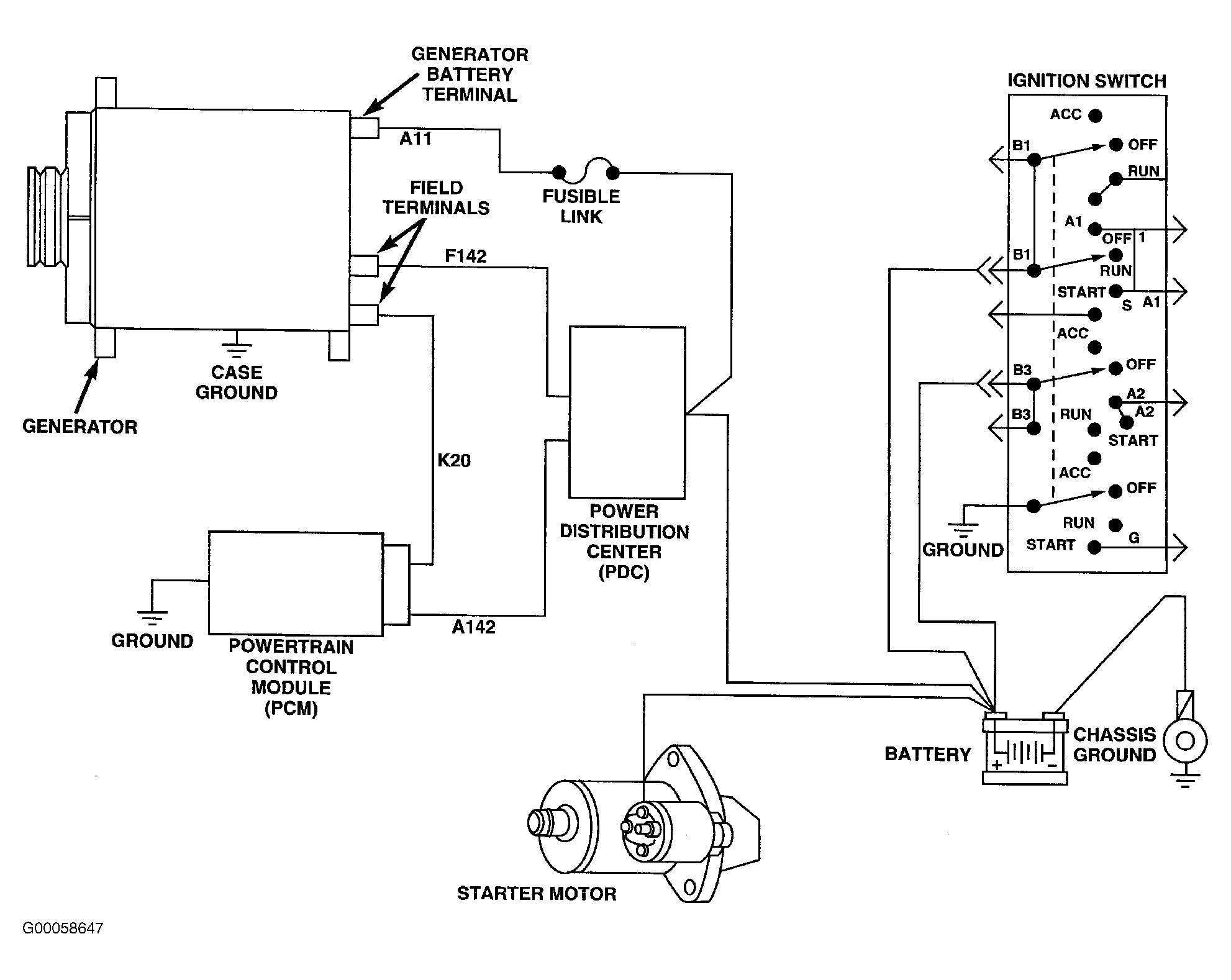

Fig 1: Charging System Schematic Wiring Diagram

G00058647

Courtesy of CHRYSLER CORP.
