Wiring Diagrams: Notes

NOTE: For additional wiring diagrams, connector identification and splice locations, see SYSTEM WIRING DIAGRAMS .

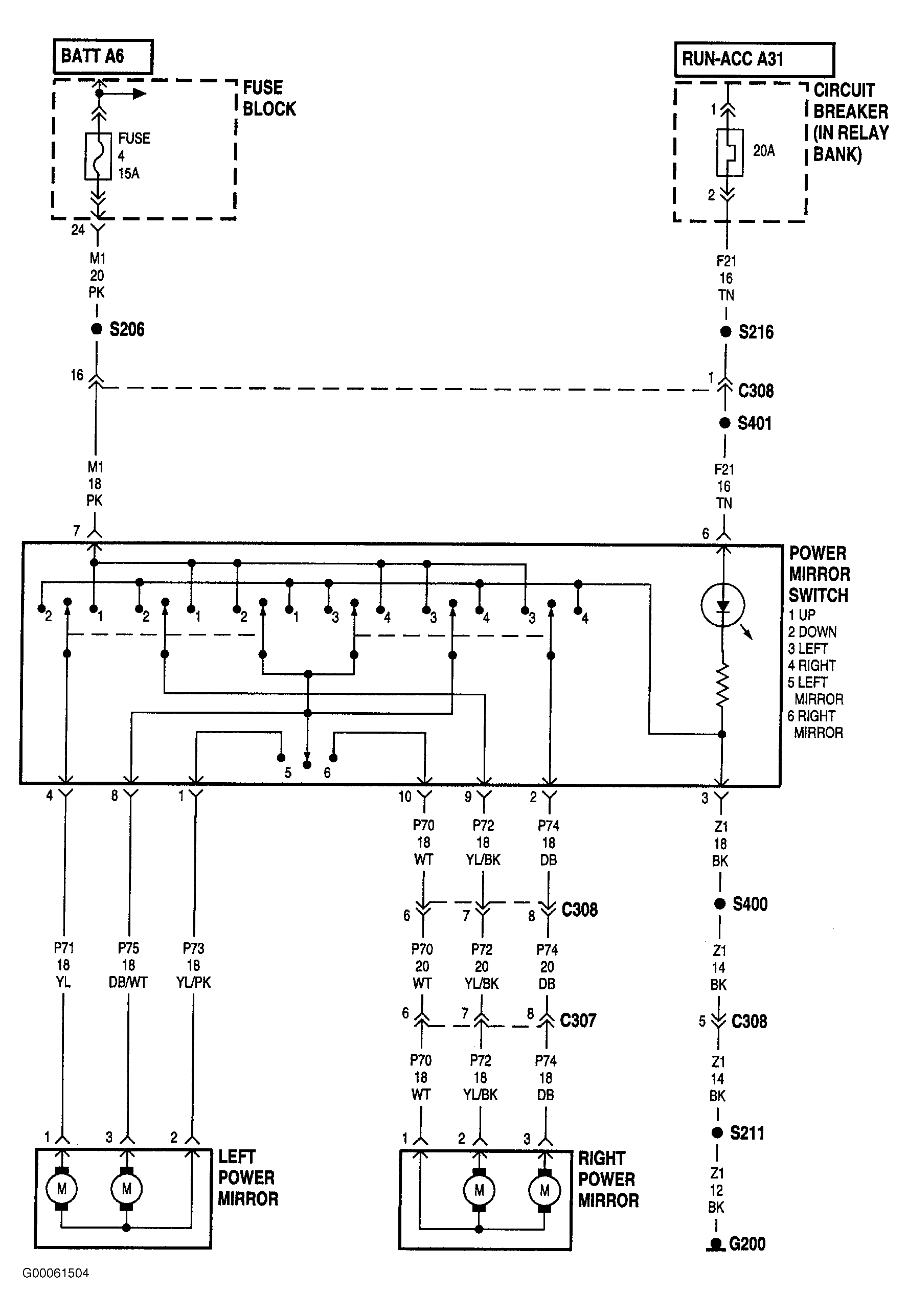

Fig 1: Power Mirrors Wiring Diagram

G00061504

Courtesy of CHRYSLER CORP.
