Wiring Diagrams

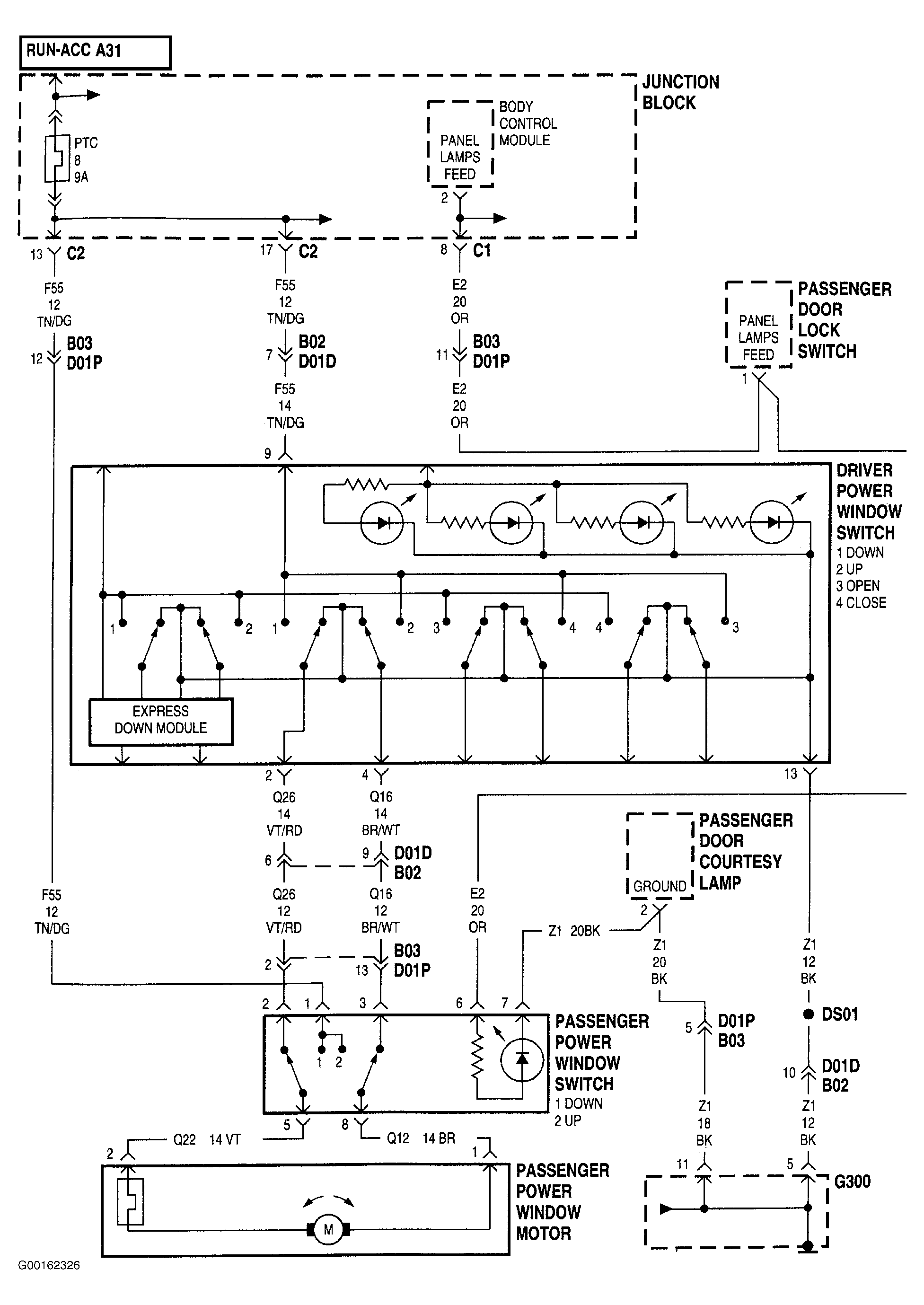

Fig 1: Power Windows Circuit Wiring Diagram (1 Of 2)
Courtesy of CHRYSLER CORP.

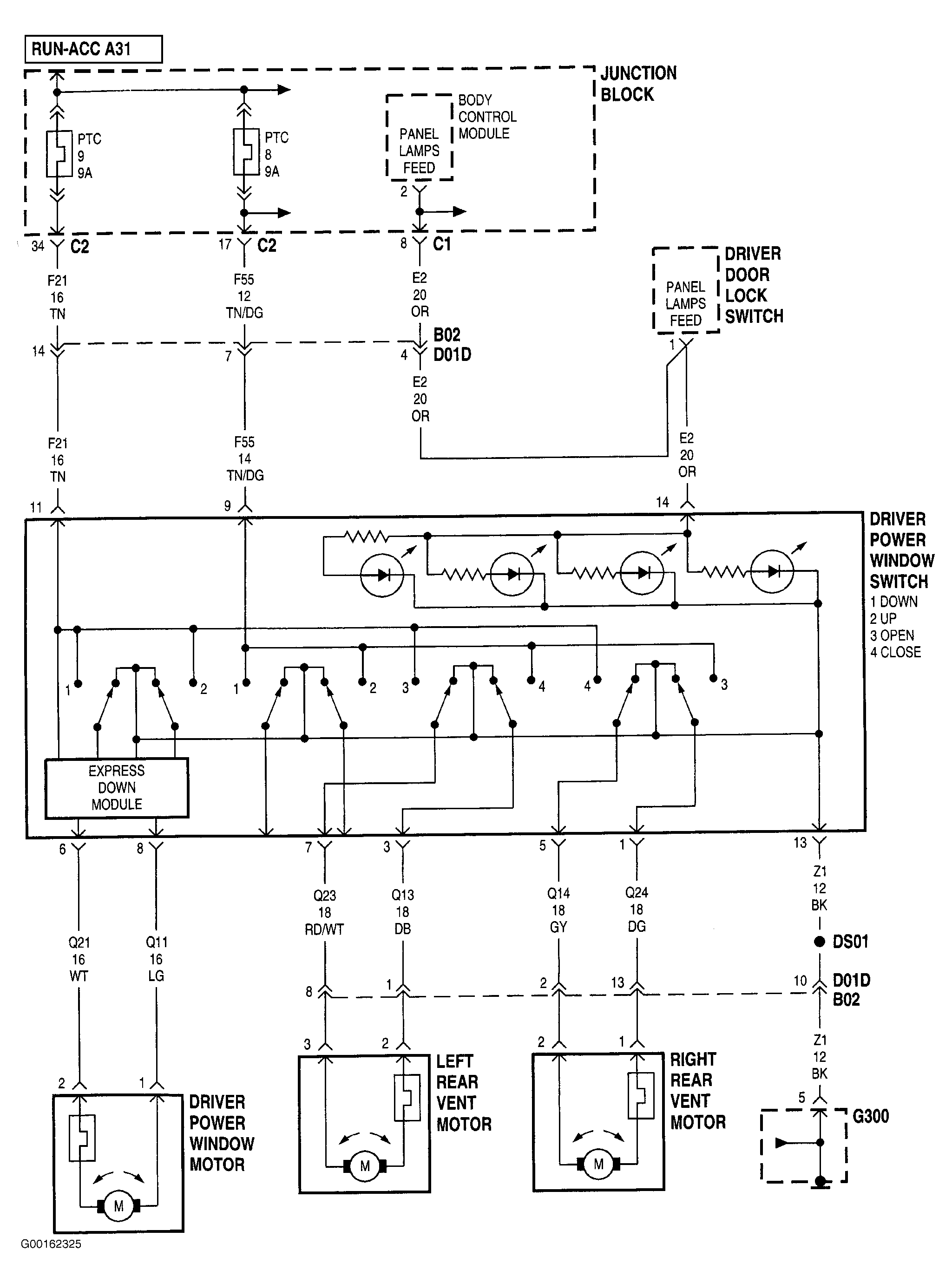

Fig 2: Power Windows Circuit Wiring Diagram (2 Of 2)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
