Body Control Module Connector Pin-Outs

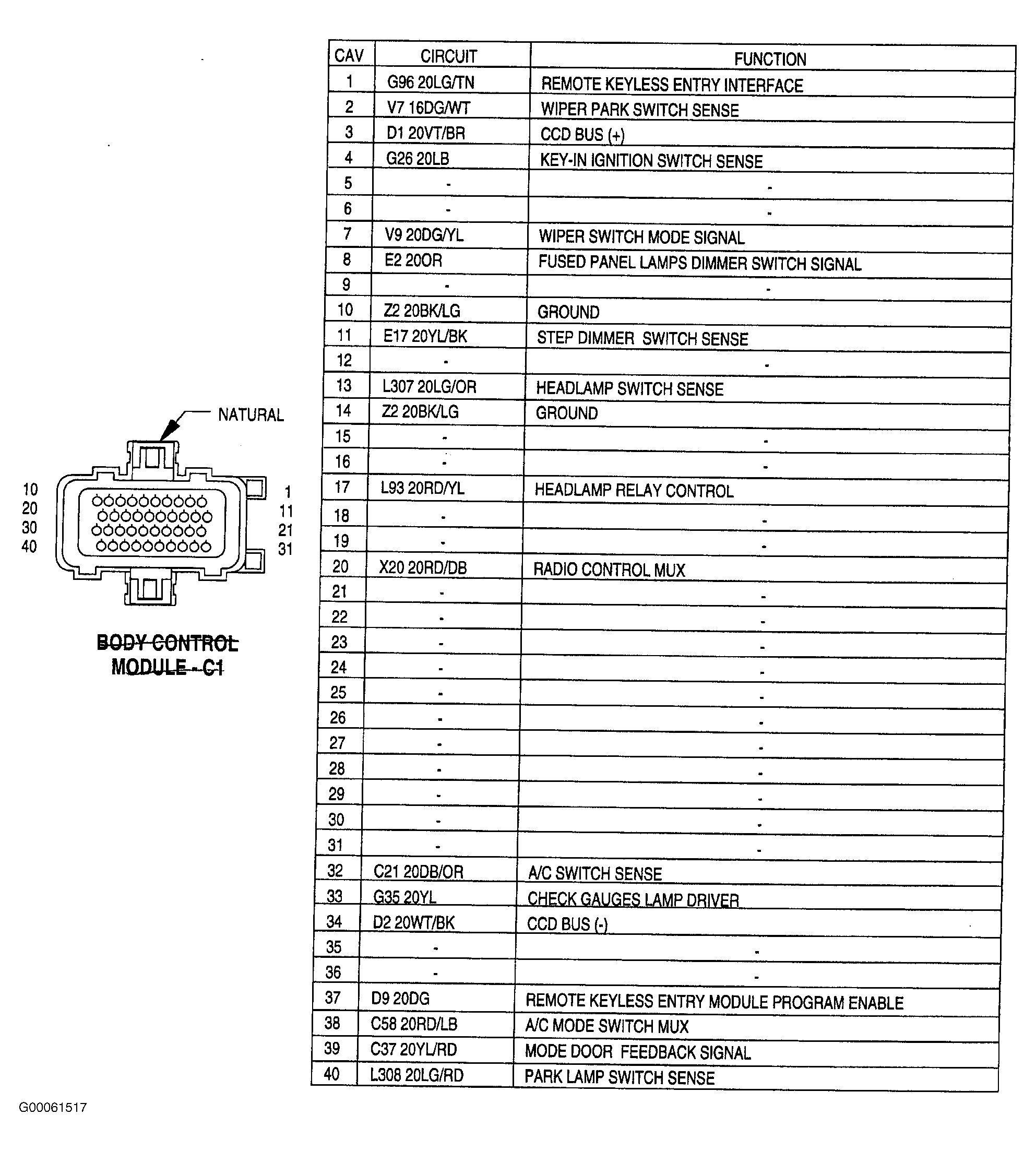

Fig 1: Body Control Module Connector Pin-Out (C1)
G00061517Courtesy of CHRYSLER CORP.

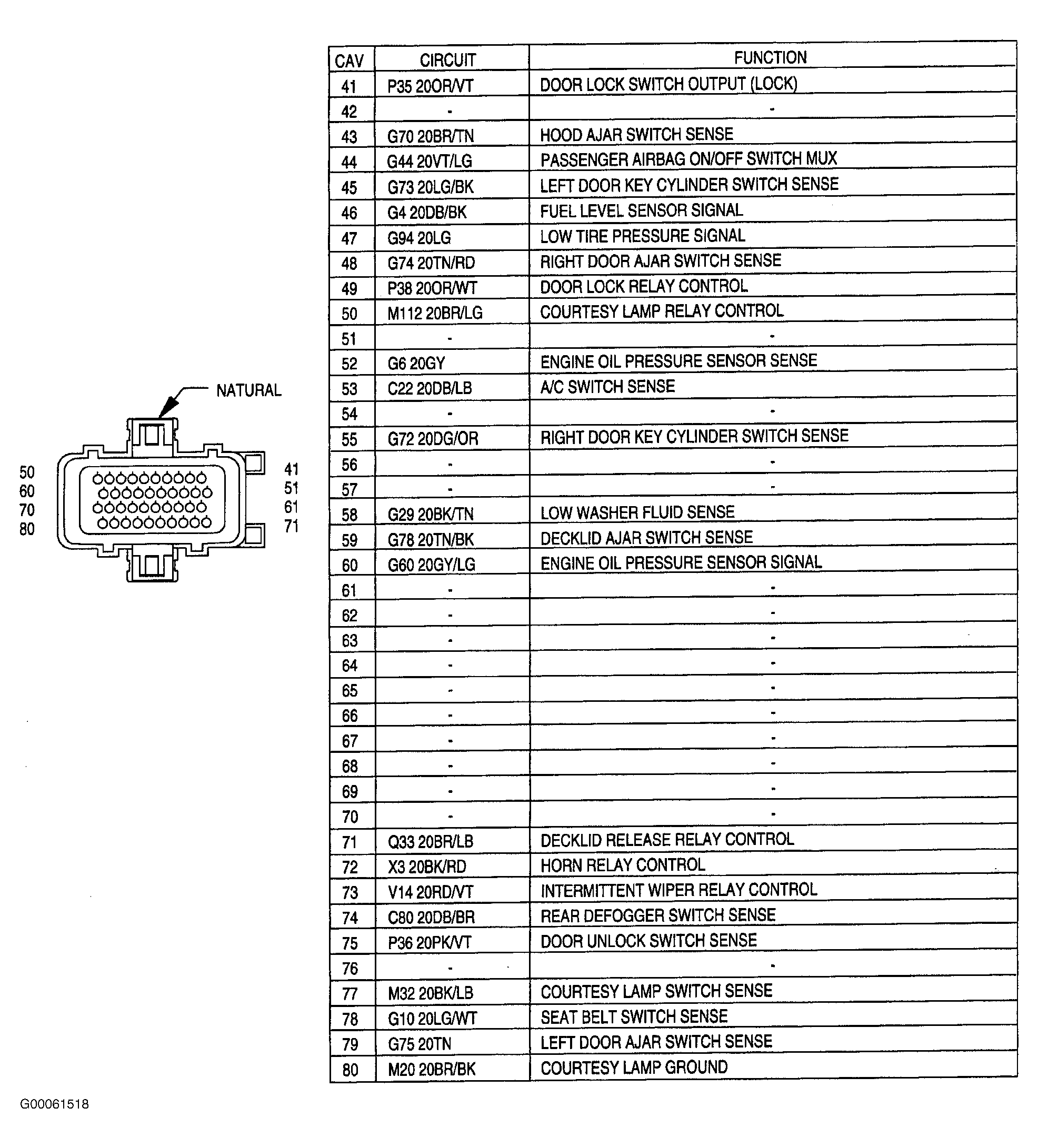

Fig 2: Body Control Module Connector Pin-Out (C2)
G00061518Courtesy of CHRYSLER CORP.

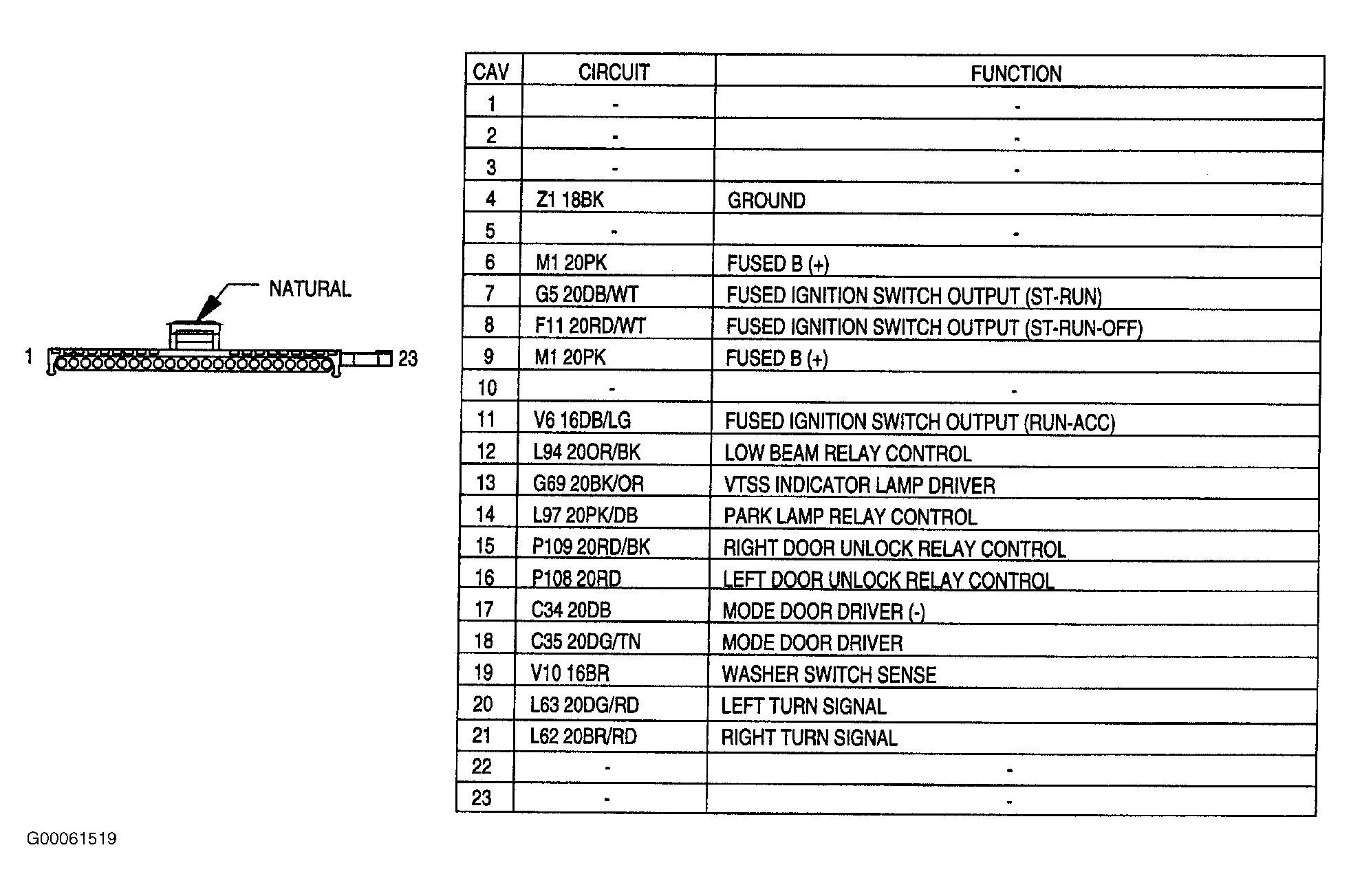

Fig 3: Body Control Module Connector Pin-Out (C3)
G00061519Courtesy of CHRYSLER CORP.
