Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment

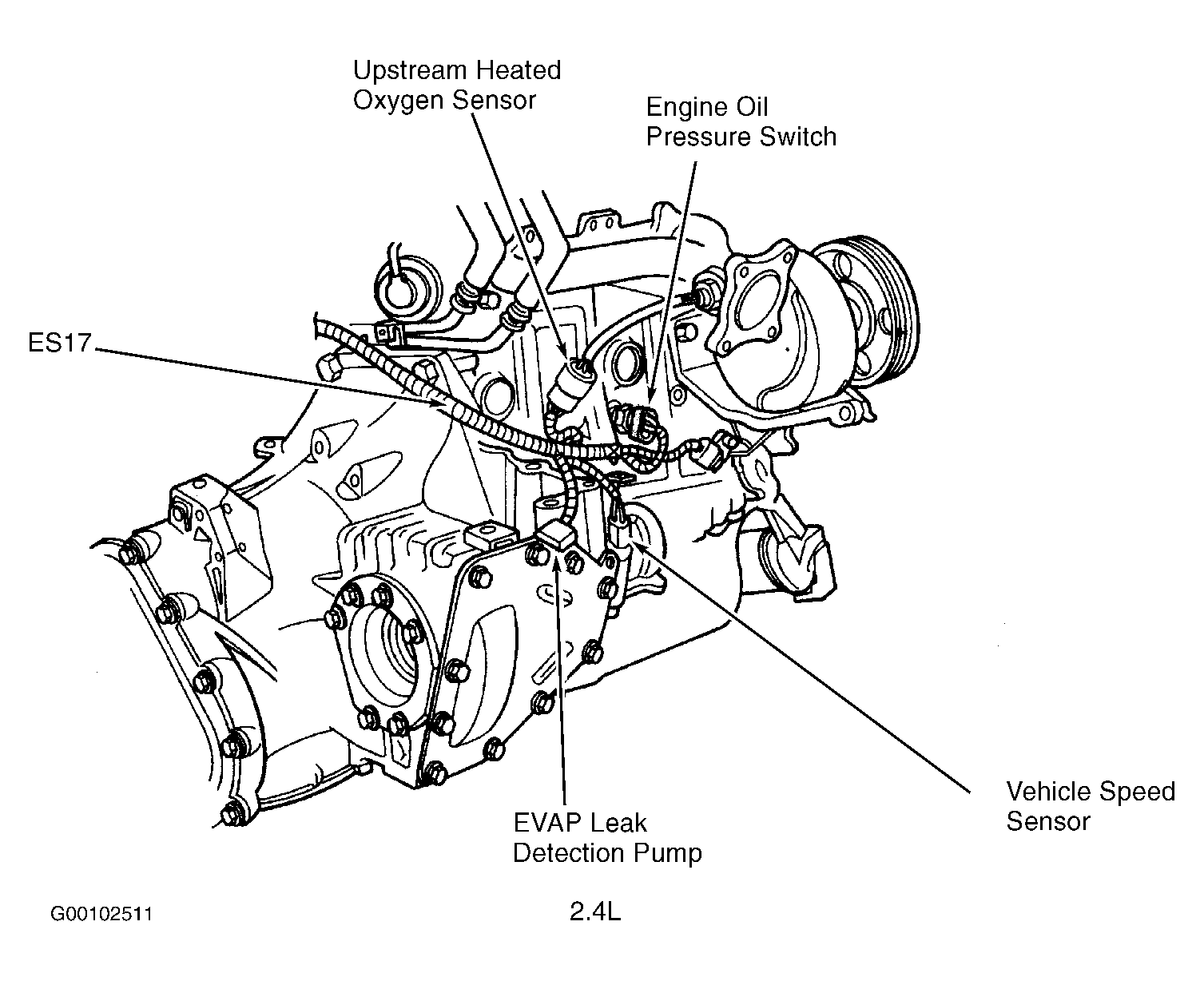

Fig 2: Left Side Of Engine Compartment

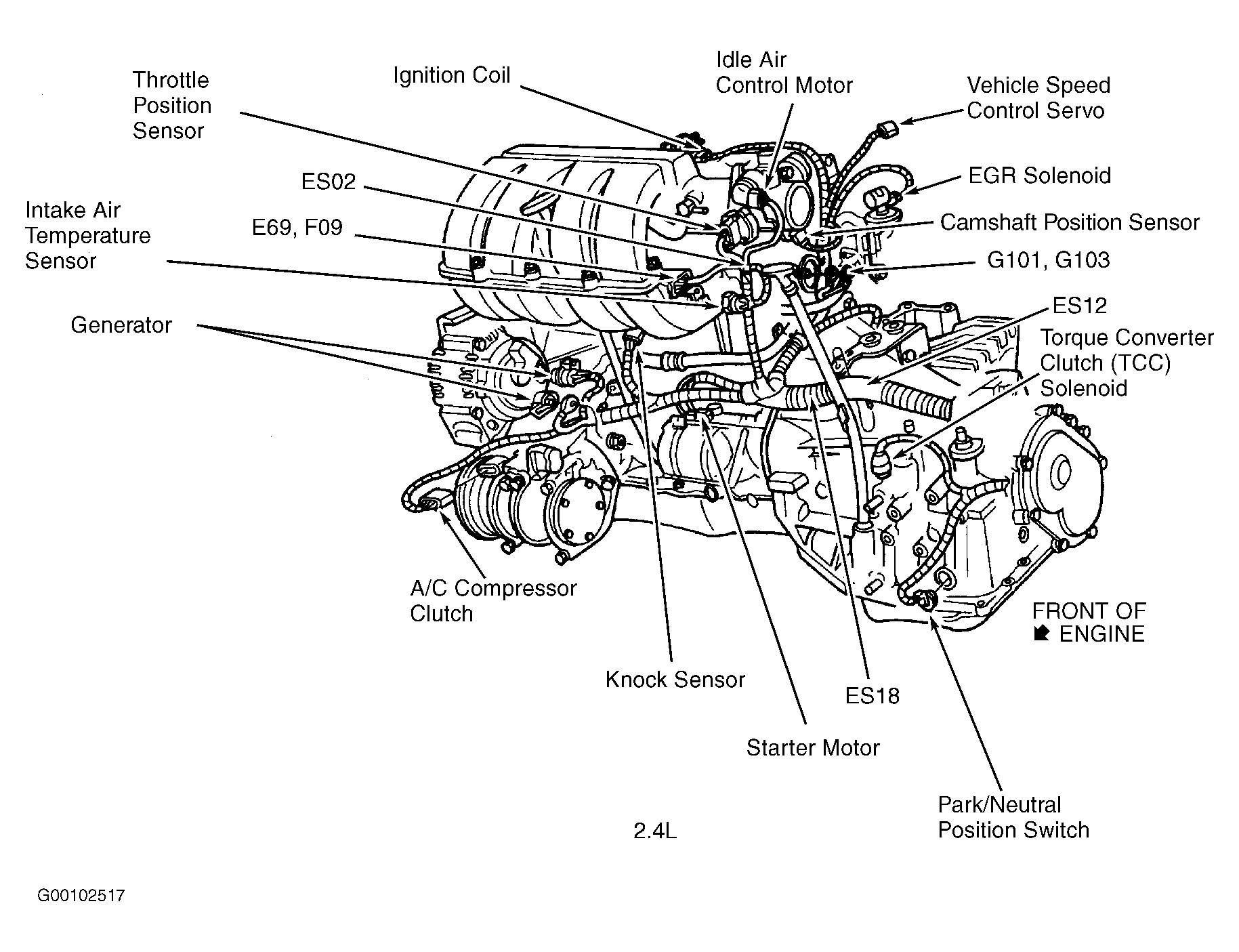

Fig 3: Left Side Of Engine (2.4L)

Fig 4: Right Side Of Engine (2.4L)

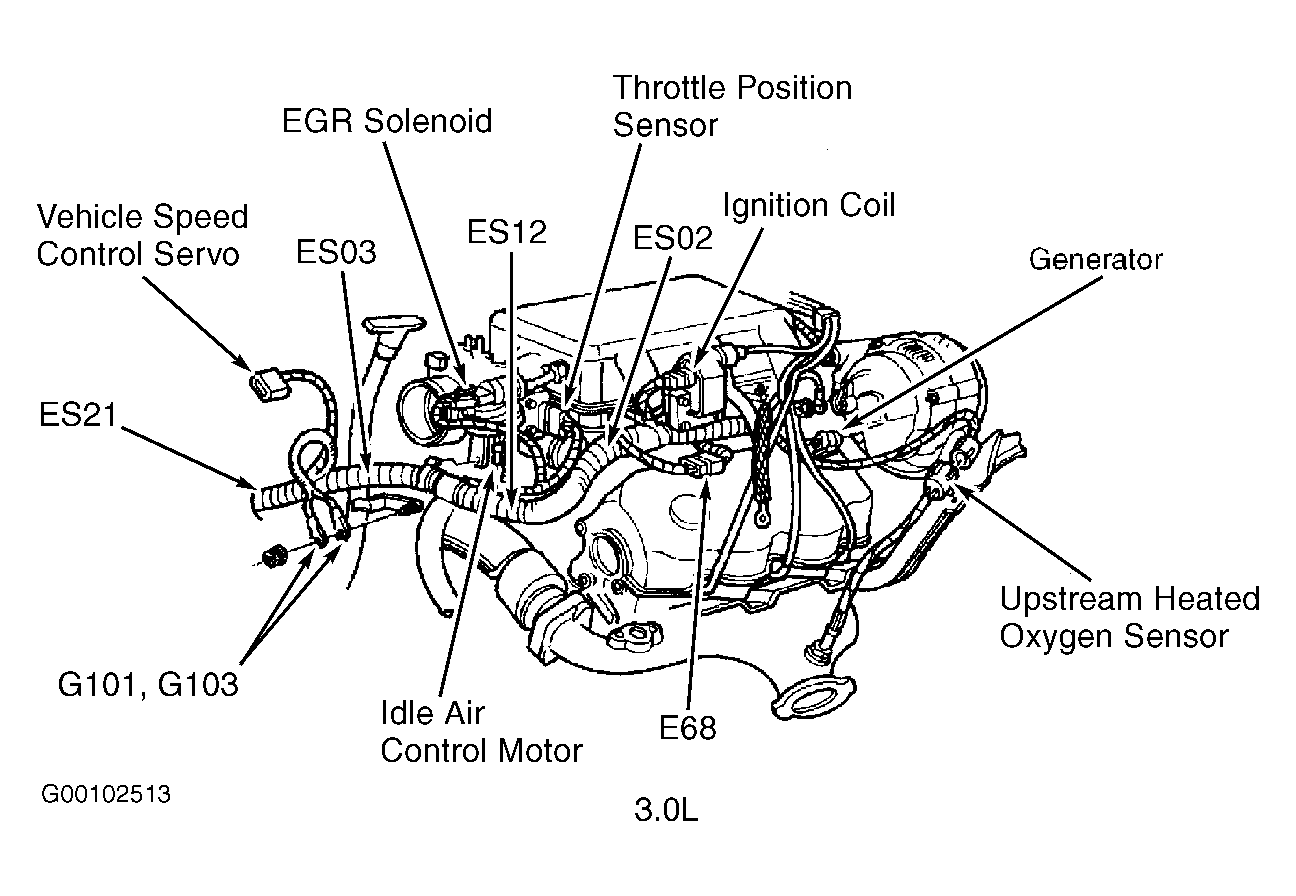

Fig 5: Lower Left Side Of Engine (3.0L)

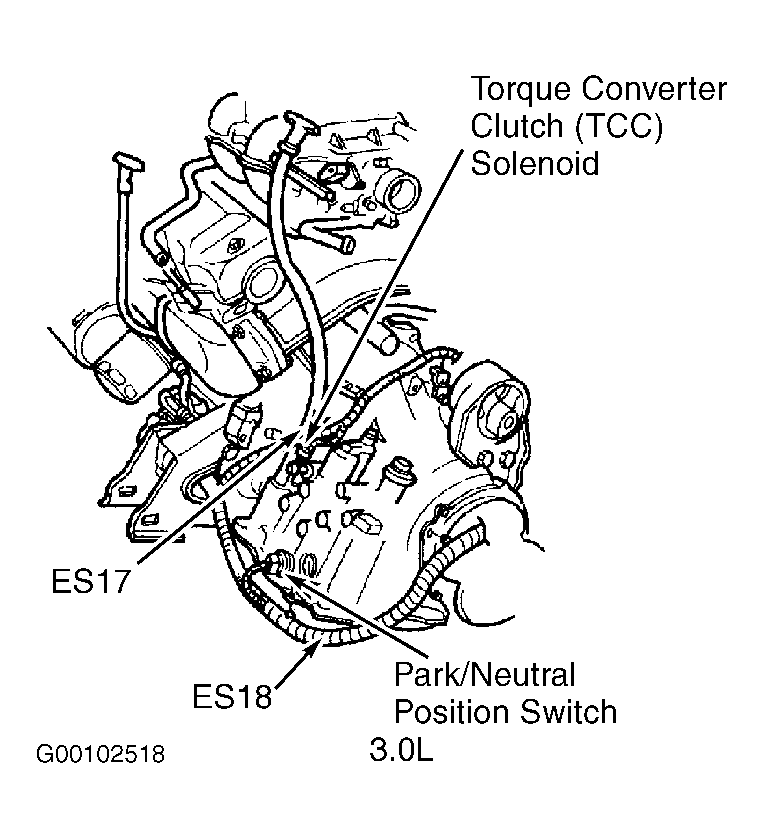

Fig 6: Engine/Transmission (3.0L)

Fig 7: Right Side Of Engine (3.0L)

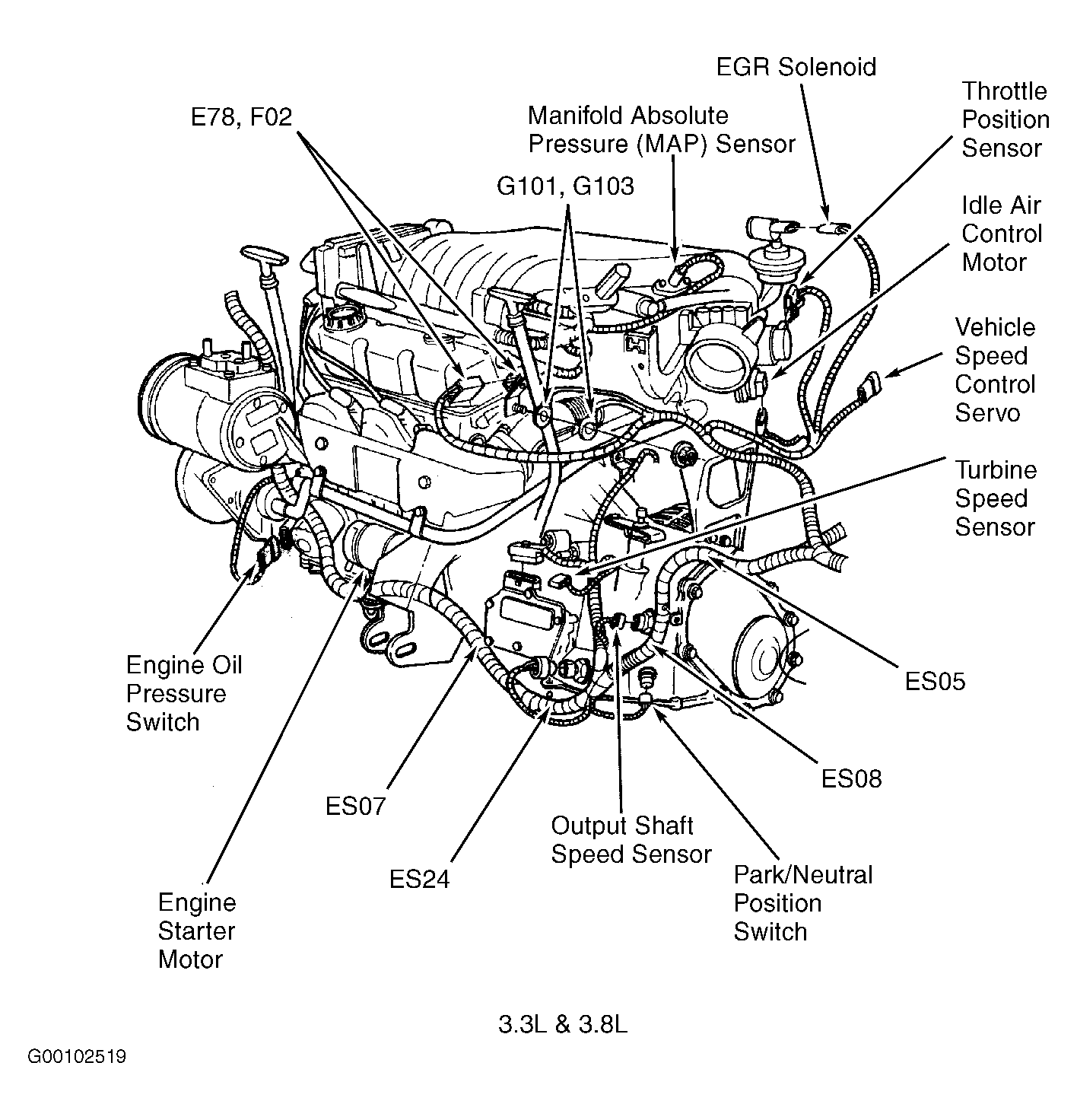

Fig 8: Top Of Engine (3.3L & 3.8L)

Fig 9: Left Side Of Engine (3.3L & 3.8L)

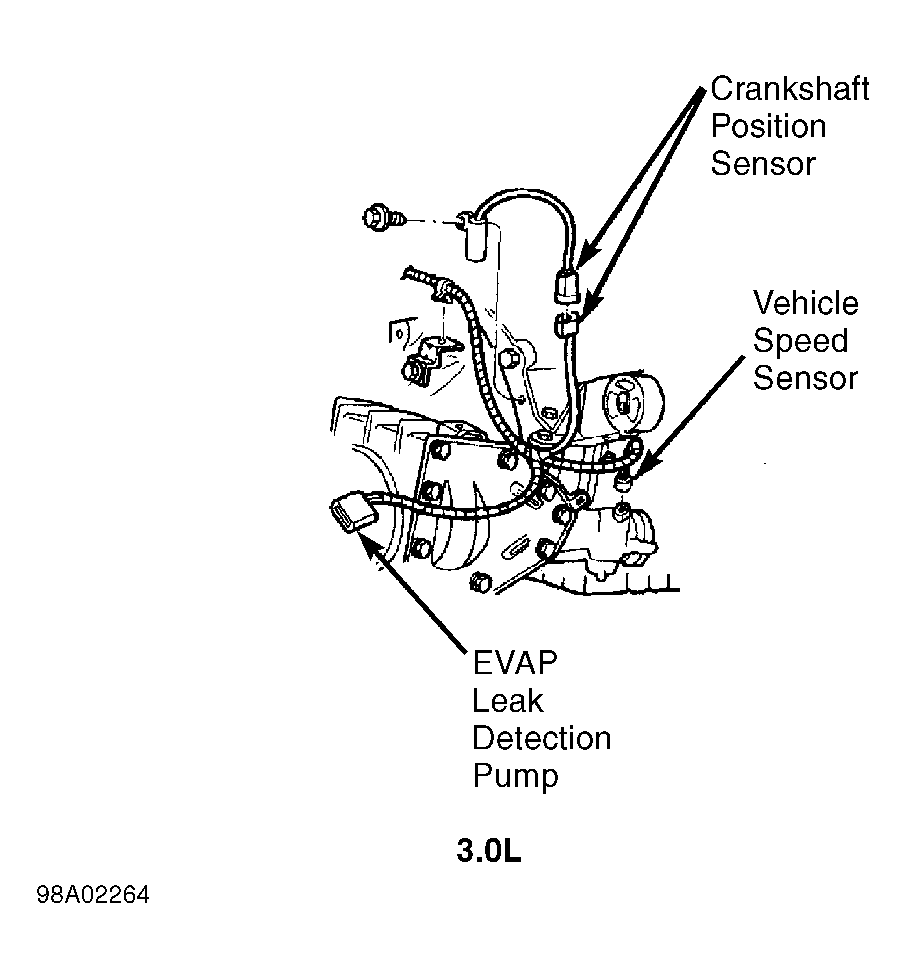

Fig 10: Left Rear Of Engine (3.0L)

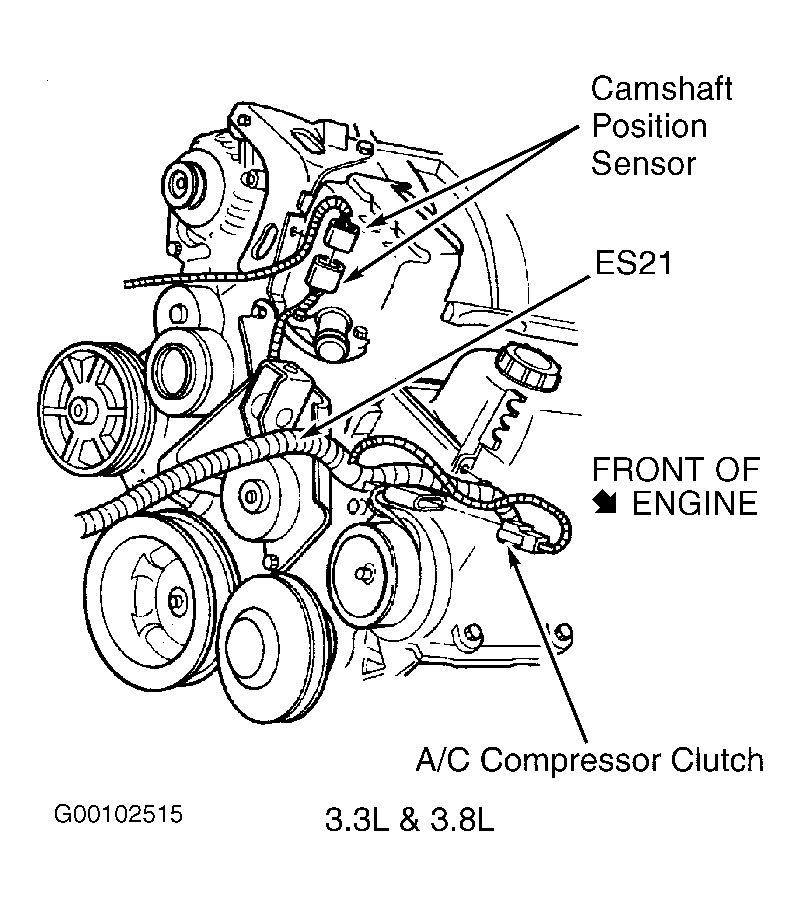

Fig 11: Front Of Engine (3.3L & 3.8L)

Fig 12: Right Side Of Engine (3.3L & 3.8L)
