Connector Identification

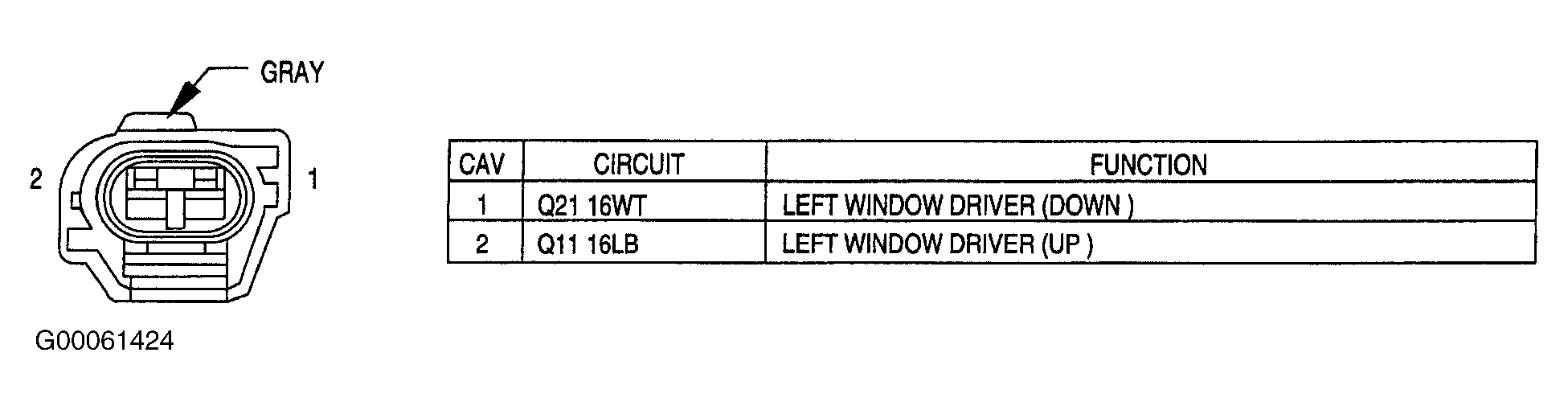

Fig 1: Left Power Window Motor Connector Pin-Out

G00061424

Courtesy of CHRYSLER CORP.

Fig 2: Right Power Window Motor Connector Pin-Out

G00061467

Courtesy of CHRYSLER CORP.
