Window Regulator: Removal

  1. Remove the door trim panel and watershield.
  2. Remove speaker.
  3. Loosen the window regulator guide rail. See Fig 1 .
  4. Turn jack screws fully clockwise to "bottom out" on the regulator brackets.
  5. Remove inner belt weathershield and glass.
  6. Carefully remove regulator out access hole in door.

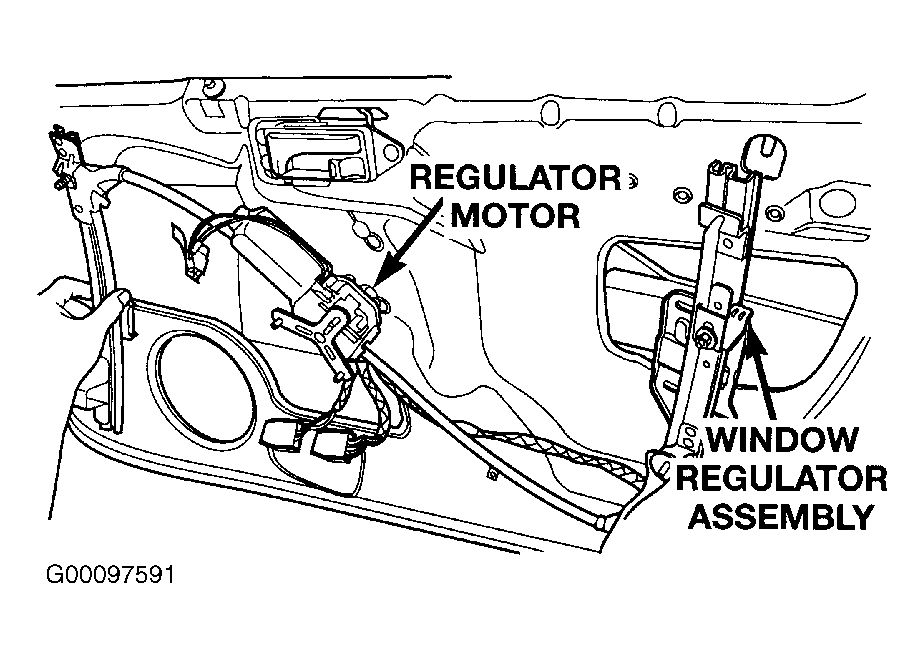

Fig 1: Identifying Window Regulator Guide Rail
G00097591Courtesy of CHRYSLER CORP.
