Service Point Locations

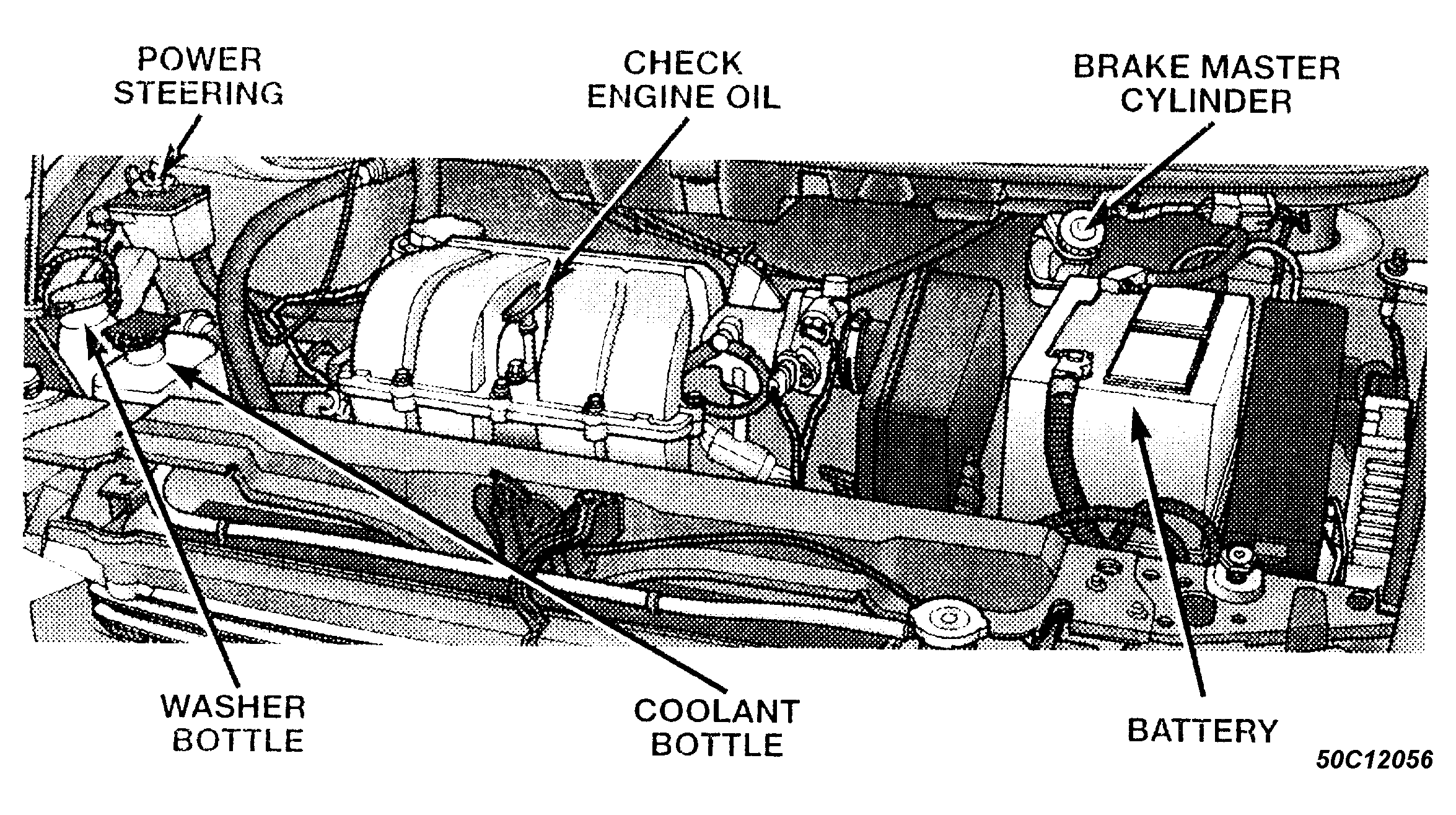

Fig 1: Service Point Locations (2.4L 4-Cylinder)

G50C12056

Courtesy of CHRYSLER CORP.

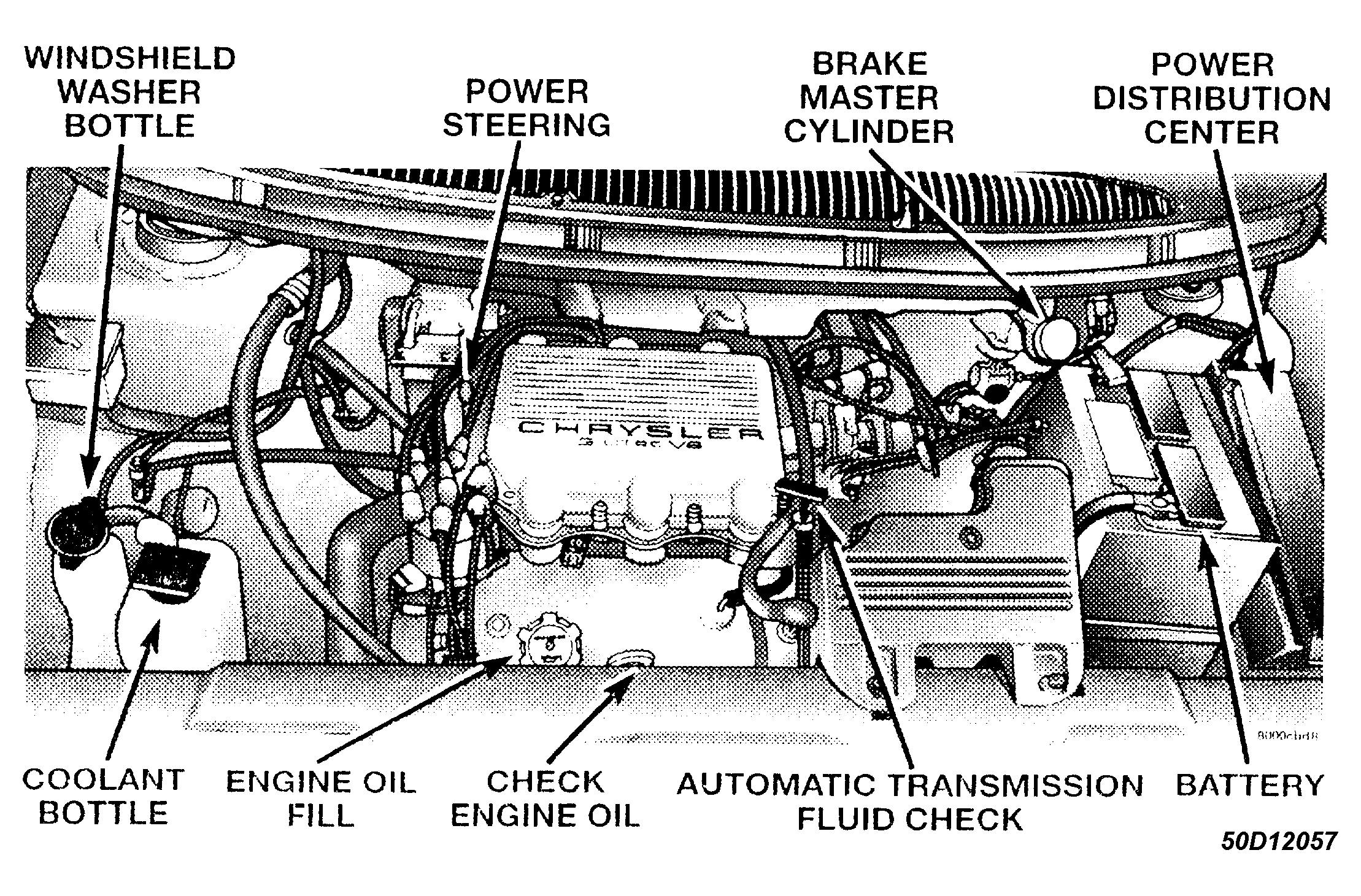

Fig 2: Service Point Locations (3.0L V6)

G50D12057

Courtesy of CHRYSLER CORP.

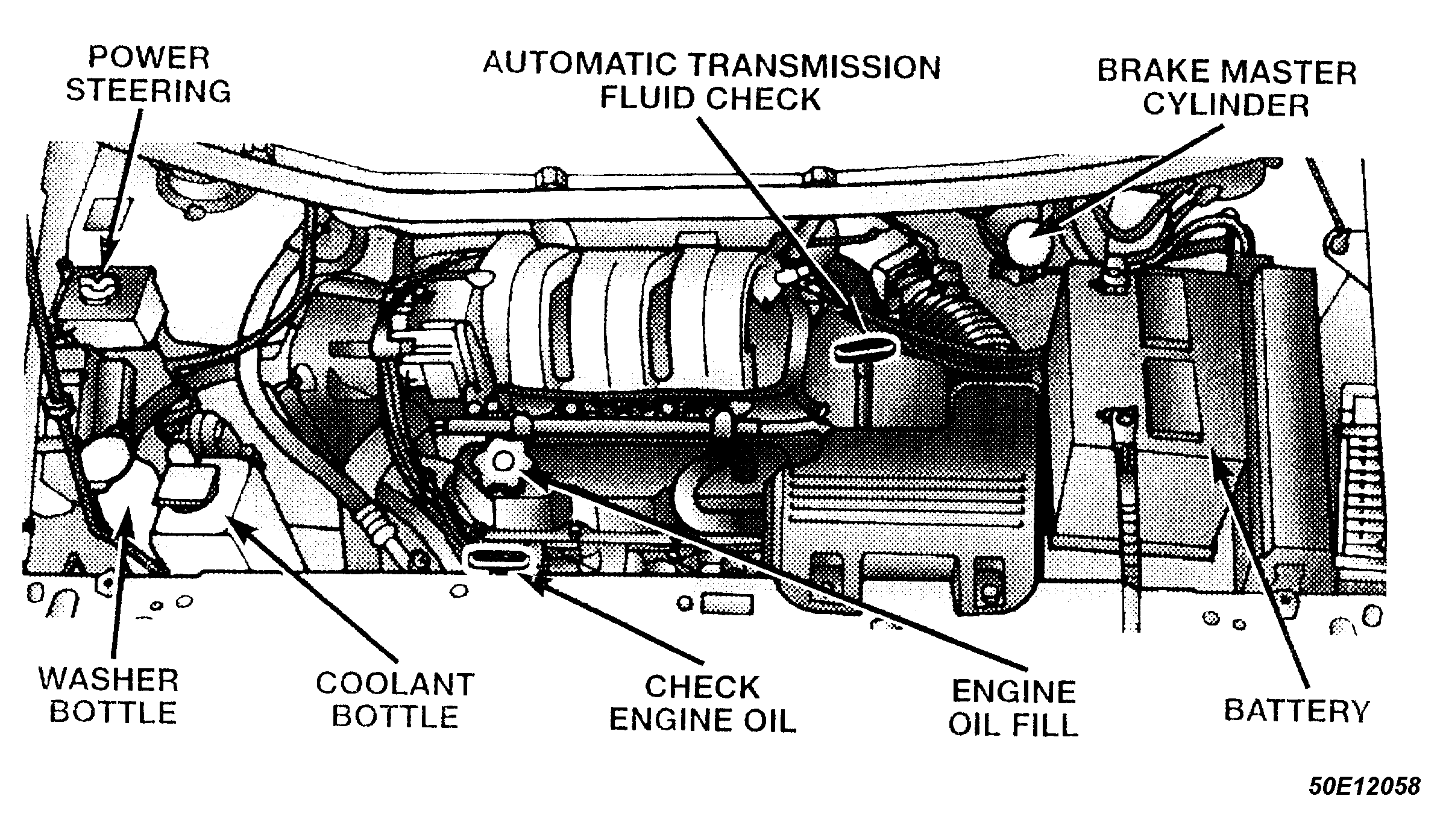

Fig 3: Service Point Locations (3.3L and 3.8L V6)

G50E12058

Courtesy of CHRYSLER CORP.

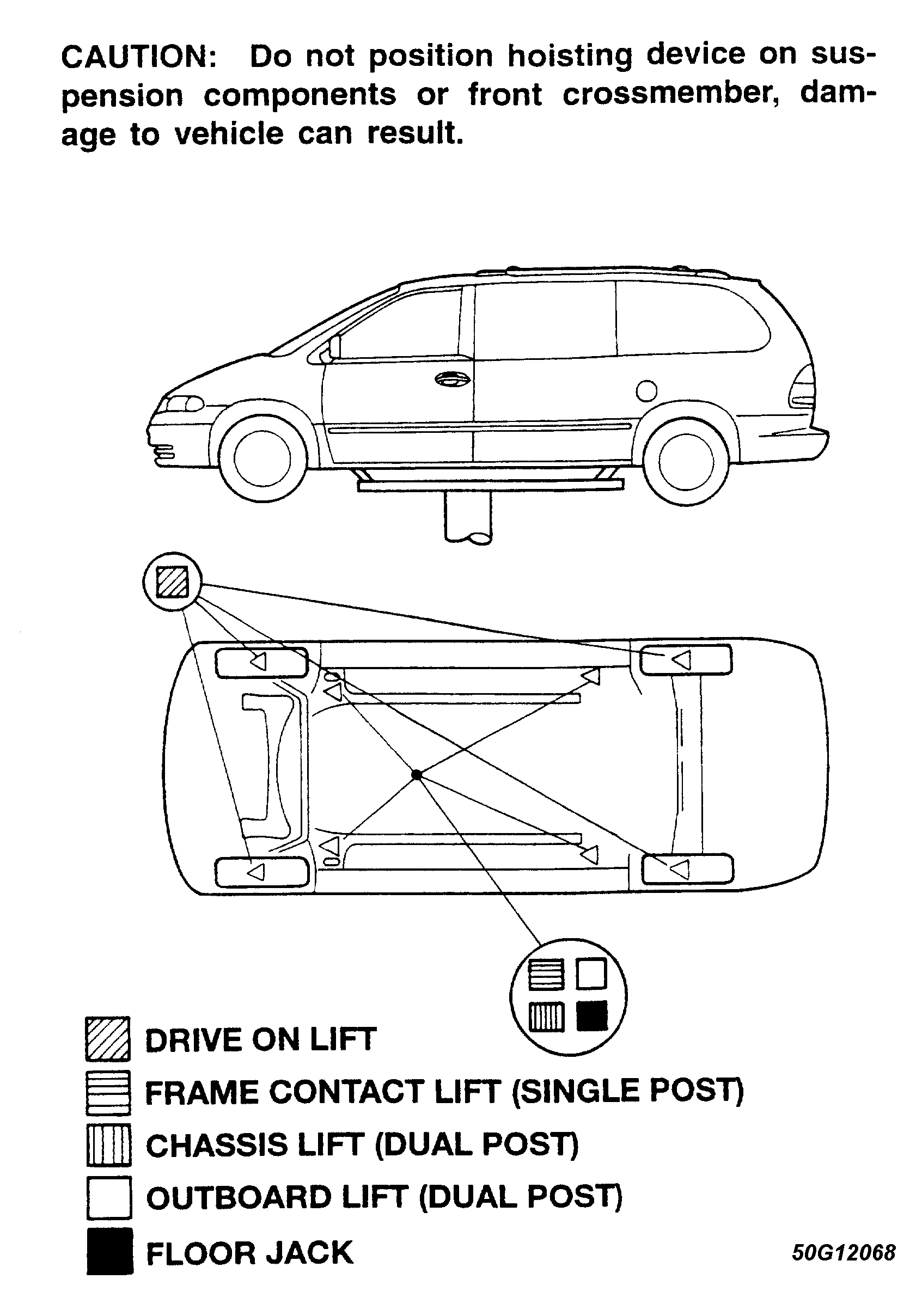

Fig 4: Vehicle Lift Points

G50G12068

Courtesy of CHRYSLER CORP.
