Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/C-Heater Control Module | Dash center stack. |

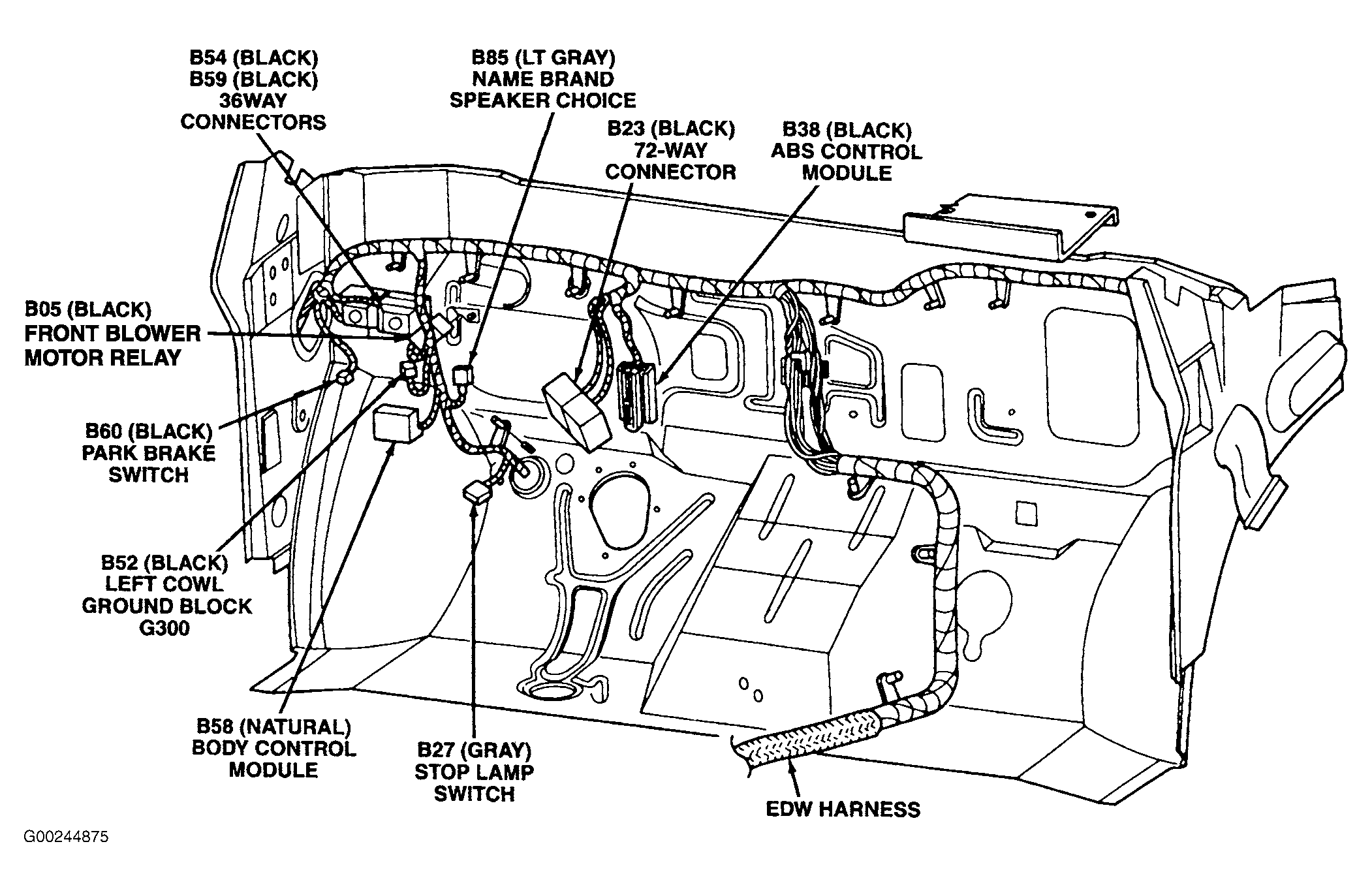

| ABS Control Module | Under dash, on left inboard brake pedal bracket. See Figure . |
| Air Bag Control Module | Behind lower portion of dash center stack. |
| Body Control Module | On junction block, behind left side of dash. See Figure . |
| Combination Flasher/DRL Module | On junction block, behind left side of dash. |
| Controller Anti-Lock Brake | Under dash, on left inboard brake pedal bracket. |
| Fuel Pump Module | On fuel tank. |
| Memory Seat/Mirror Module | Under driver's seat. |
| Powertrain Control Module | Left fender side shield. See Figure . |
| Powertrain Control Module (CNG) | Left inner fender panel, by battery. |
| Remote Keyless Entry Module | Under left side of dash top cover. |
| Speed Control Dimming Module | Base of steering column. |

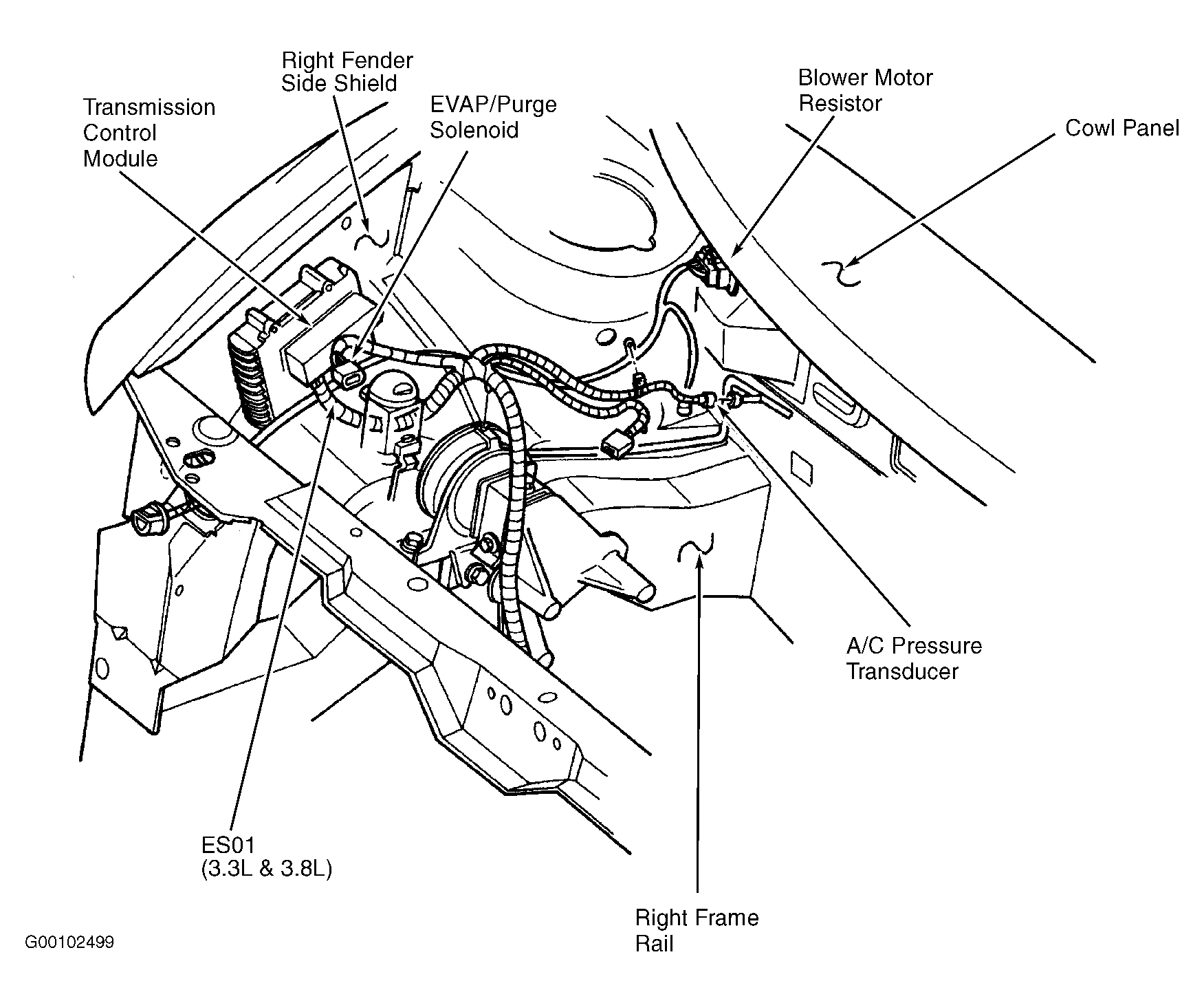

| Transmission Control Module | Right side of engine compartment. See Figure . |
