Seat Switch Test

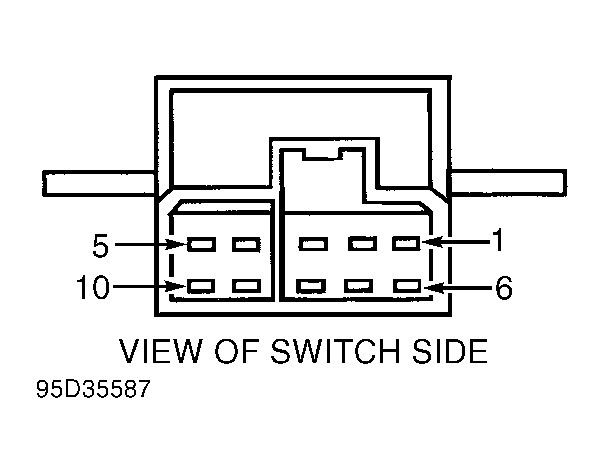

Remove switch. See SEAT SWITCH under REMOVAL & INSTALLATION. Check switch continuity with switch in specified positions. See Fig 1 . See SWITCH CONTINUITY TEST table.
SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Pins No. |
|---|---|
| Off | 5 & 4; 5 & 3; 5 & 2; 5 & 6; 5 & 7; 5 & 8; 5 & 9; 5 & 10 |
| Front Riser Up | 5 & 6; 1 & 9 |
| Front Riser Down | 5 & 9; 1 & 6 |
| Center Switch Forward | 5 & 3; 1 & 10 |
| Center Switch Rearward | 5 & 10; 3 & 1 |
| Rear Riser Up | 5 & 7; 1 & 8 |
| Rear Riser Down | 5 & 8; 1 & 7 |
| Recliner Up | 5 & 2; 4 & 1 |
| Recliner Down | 5 & 4; 4 & 1 |
