Connector Identification

CONNECTOR IDENTIFICATION

Connector	See
A/C Clutch Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2
Camshaft Position (CMP) Sensor	Fig 3
CNG Low Pressure Sensor	Fig 4
CNG Temperature Sensor	Fig 5
Crankshaft Position (CKP) Sensor	Fig 6
Data Link Connector (DLC)	Fig 7
Engine Coolant Temperature (ECT) Sensor	Fig 8
Fuel Injector	Fig 9
High Pressure Fuel Shutoff Relay	Fig 10
High Pressure Fuel Shutoff Solenoid	Fig 11
Idle Air Control (IAC) Motor	Fig 12
Ignition Coil	Fig 13
Intake Air Temperature (IAT) Sensor	Fig 14
Low Pressure Fuel Shutoff Solenoid	Fig 15
Manifold Absolute Pressure (MAP) Sensor	Fig 16
Park/Neutral (P/N) Position Switch	Fig 17
Powertrain Control Module (PCM)	Fig 18
Oxygen Sensor	Fig 19
Throttle Position (TP) Sensor	Fig 20
Vehicle Speed Sensor (VSS)	Fig 21

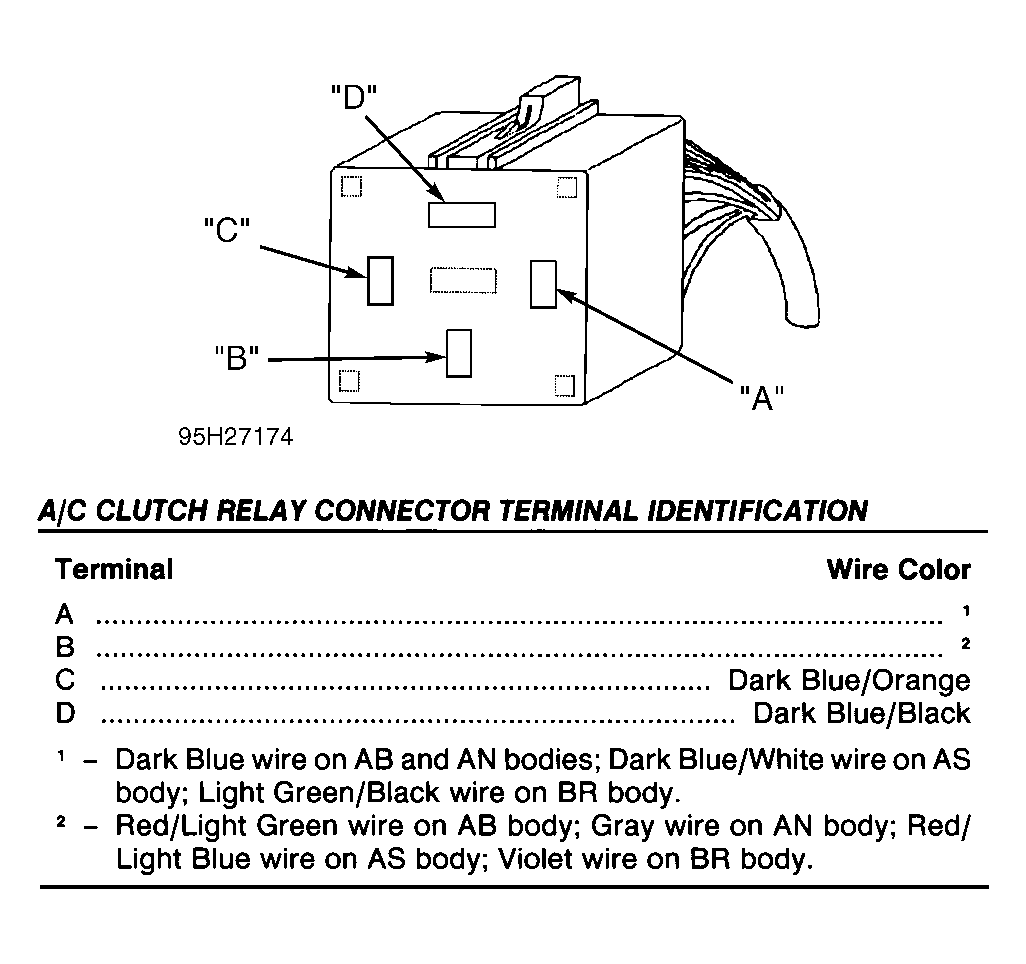

A/C CLUTCH RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color
A	Dark Blue/White
B	Red/Light Blue
C	Dark Blue/Orange
D	Dark Blue/Black

Fig 1: A/C Clutch Relay Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

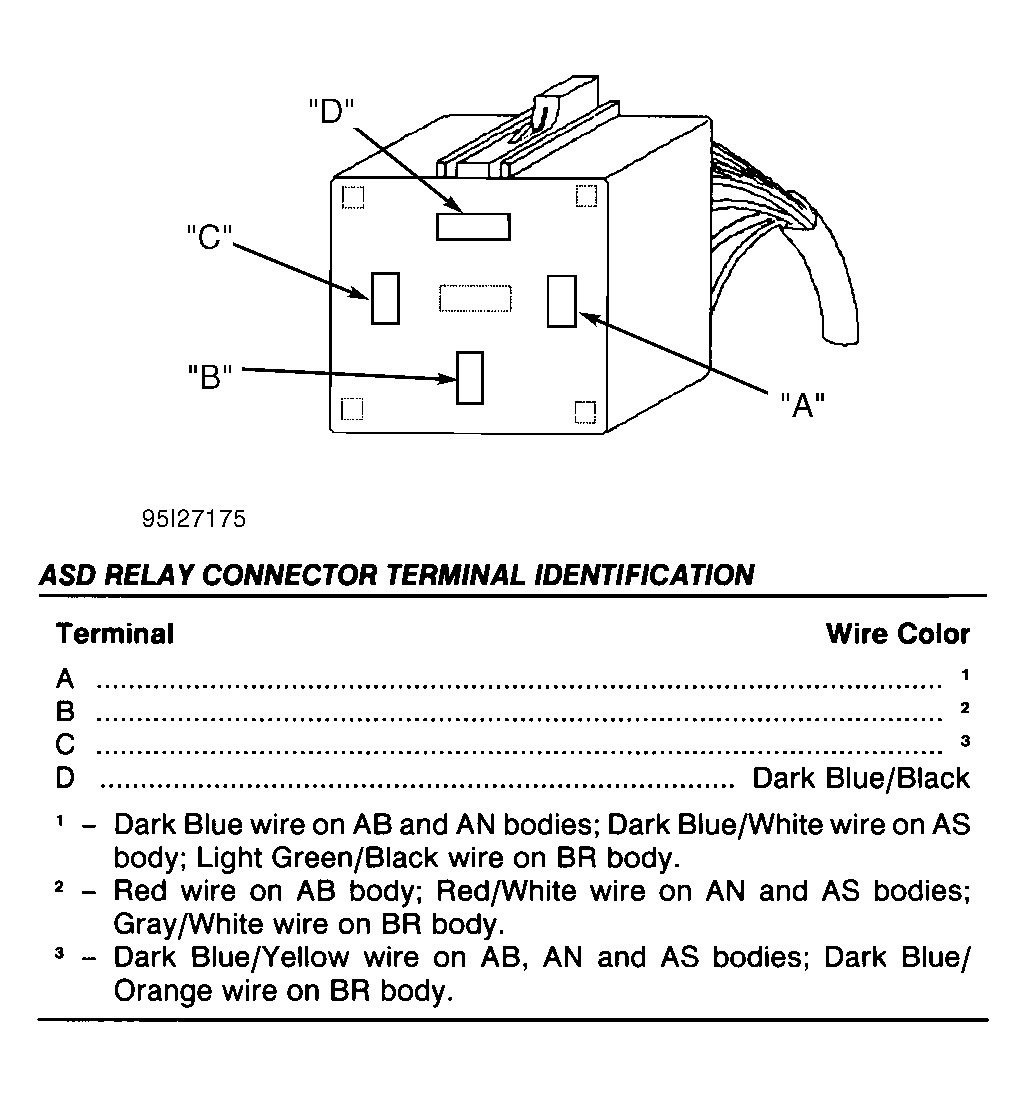

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color
A	Dark Blue/White
B	Red/White
C	Dark Blue/Yellow
D	Dark Blue/Black

Fig 2: ASD Relay Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 3: CMP Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

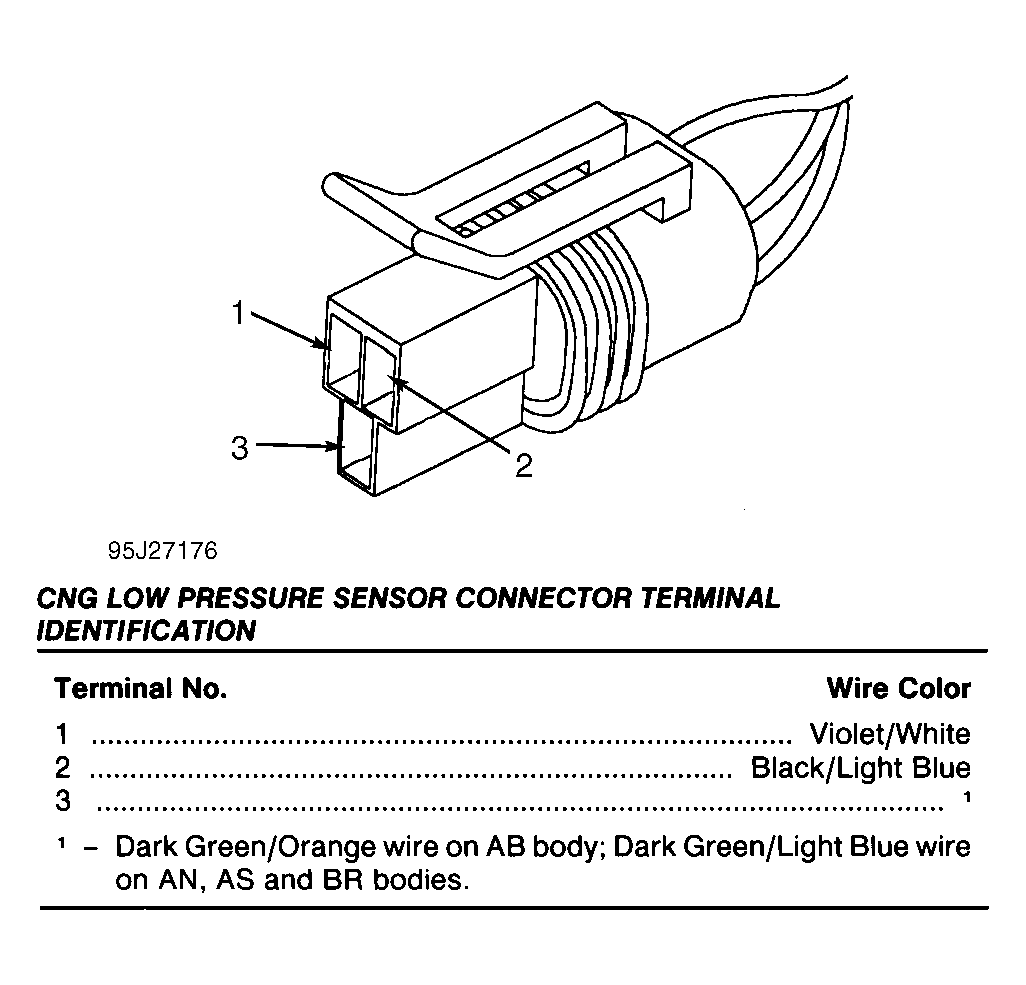

CNG LOW PRESSURE SENSOR CONNECTOR TERMINAL ID

Terminal No.	Wire Color
1	Violet/White
2	Black/Light Blue
3	Dark Green/Light Blue

Fig 4: CNG Low Pressure Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 5: CNG Temp. Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

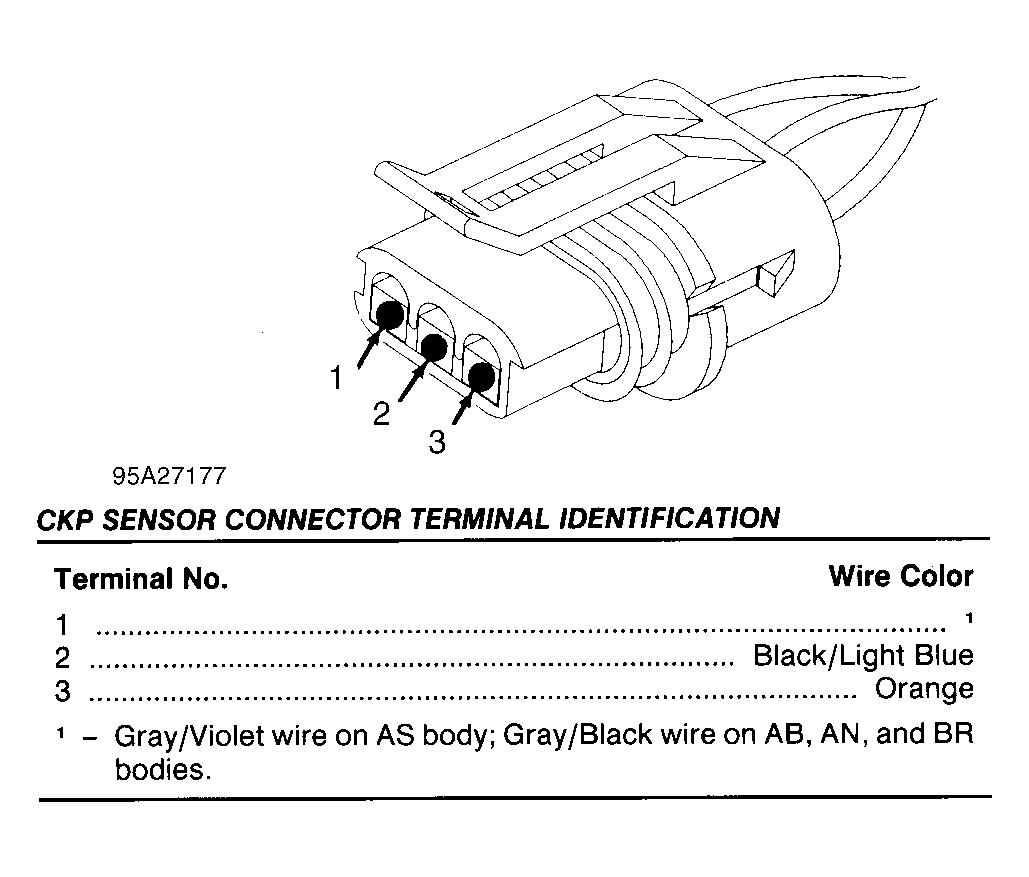

CKP SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Wire Color
1	Gray/Violet
2	Black/Light Blue
3	Orange

Fig 6: CKP Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 7: Data Link Connector (DLC) Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 8: ECT Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

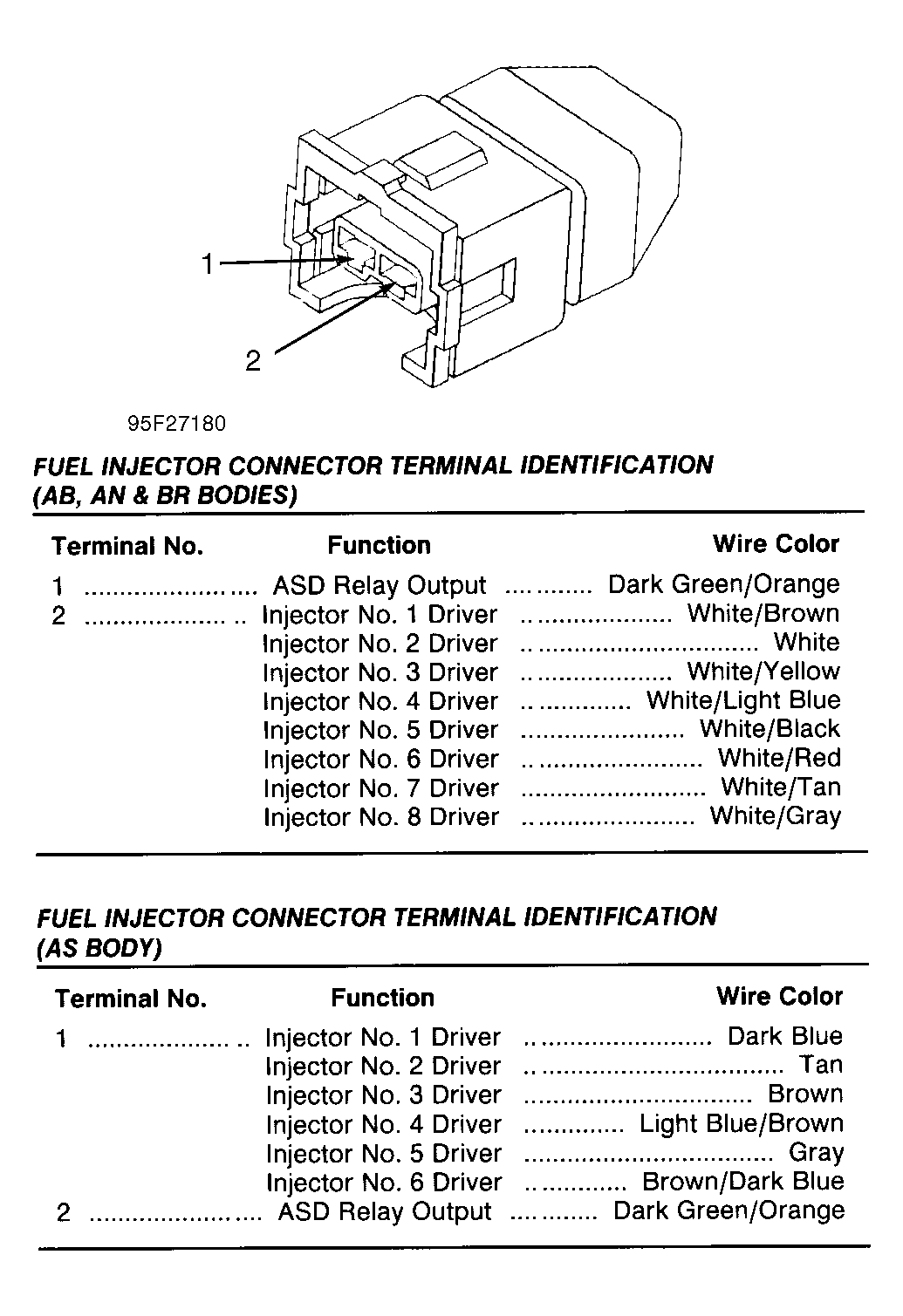

FUEL INJECTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Function	Wire Color
1	Injector No. 1 Driver	Dark Blue
1	Injector No. 2 Driver	Tan
1	Injector No. 3 Driver	Brown
1	Injector No. 4 Driver	Light Blue/Brown
1	Injector No. 5 Driver	Gray
1	Injector No. 6 Driver	Brown/Dark Blue
2	ASD Relay Output	Dark Green/Orange

Fig 9: Fuel Injector Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

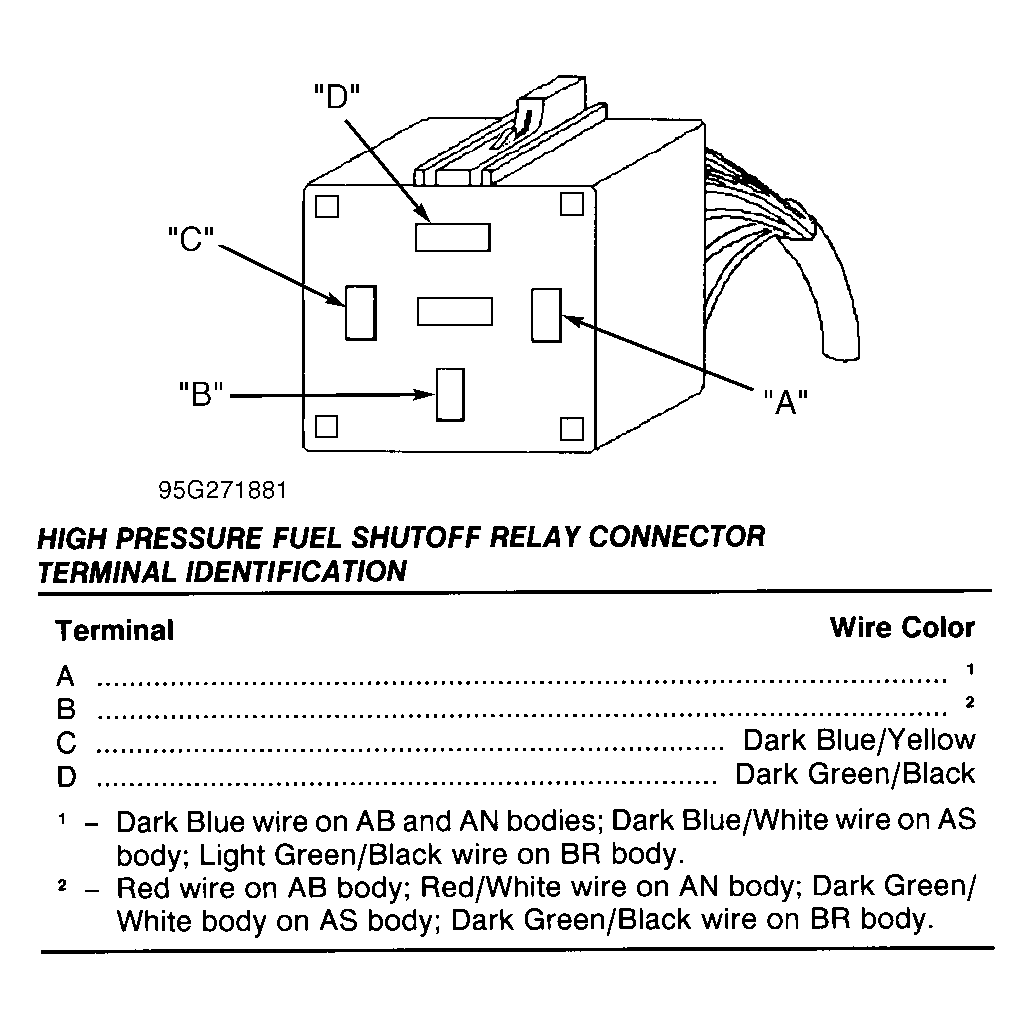

HIGH PRESSURE FUEL SHUTOFF RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color
A	Dark Blue/White
B	Green/White
C	Dark Blue/Yellow
D	Dark Green/Black

Fig 10: High Pressure Fuel Shutoff Relay Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 11: High Pressure Fuel Shutoff Solenoid Conn. Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 12: IAC Motor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 13: Ignition Coil Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 14: IAT Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

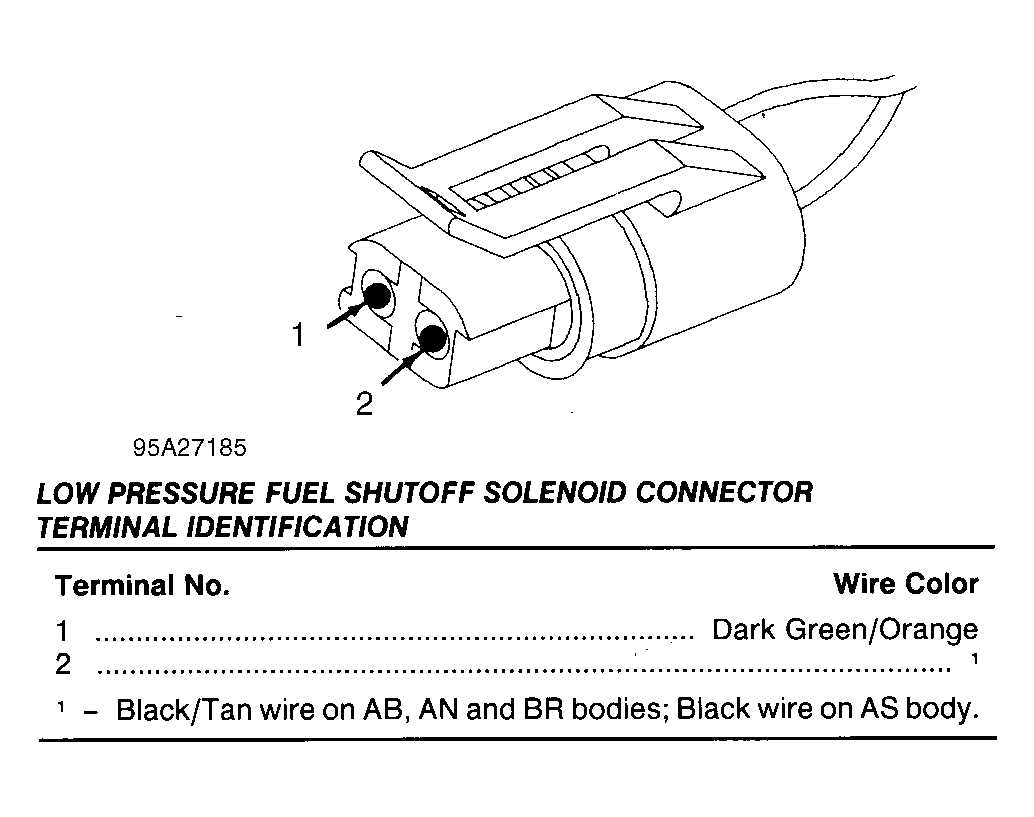

LOW PRESSURE FUEL SHUTOFF SOLENOID CONNECTOR TERMINAL ID

Terminal No.	Wire Color
1	Dark Green/Orange
2	Black/Tan

Fig 15: Low Pressure Fuel Shutoff Solenoid Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 16: MAP Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 17: P/N Position Switch Conn. Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

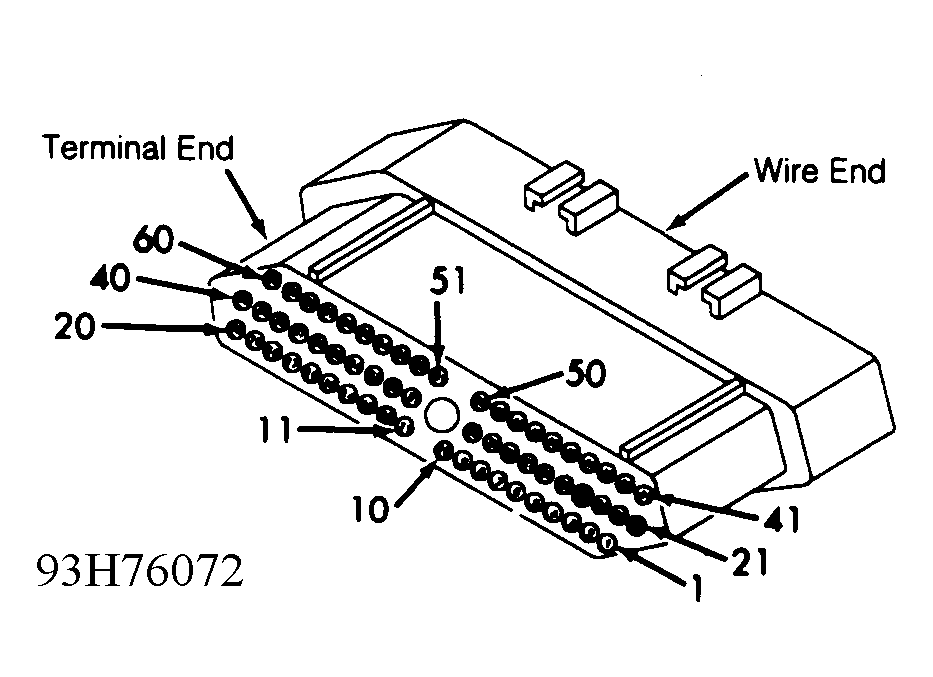

Fig 18: PCM Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 19: Oxygen Sensor (O2S) Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

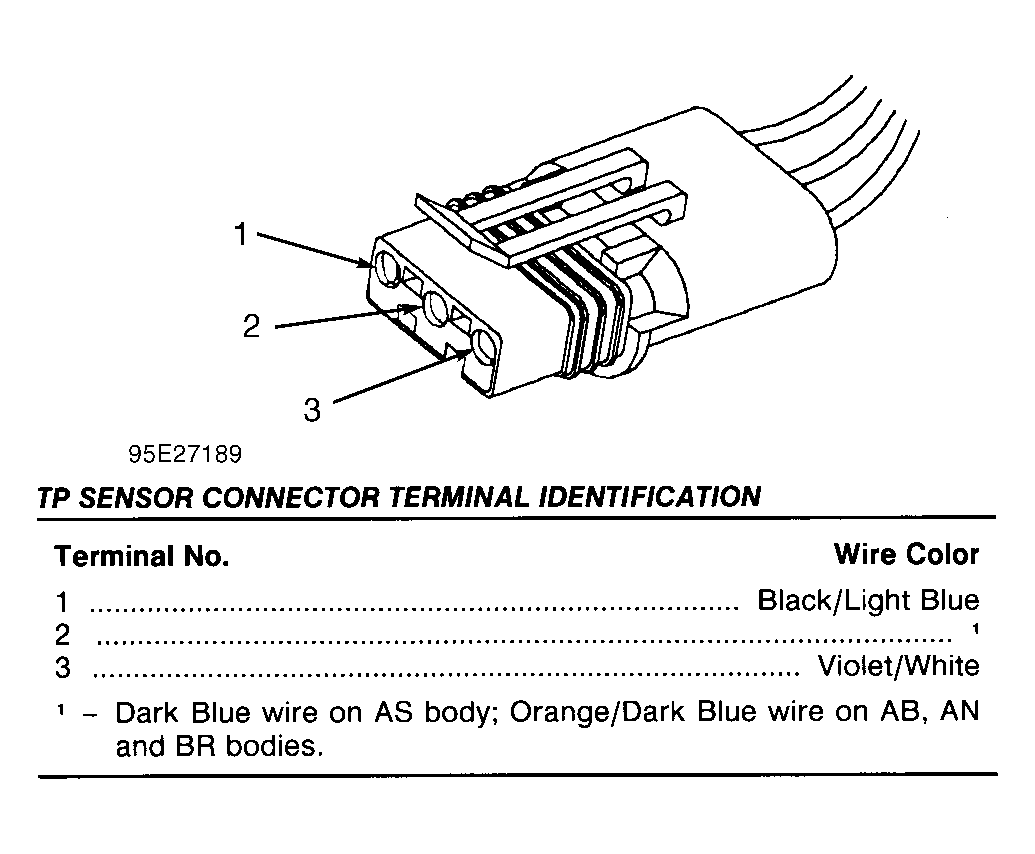

TP SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Wire Color
1	Black/Light Blue
2	Dark Blue
3	Violet/White

Fig 20: TP Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 21: Vehicle Speed Sensor (VSS) Conn. Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION section before disconnecting battery.
