Mirror Switch

  1. Remove power mirror harness from mounting position.
  2. Disconnect wiring harness at switch connector.
  3. Using ohmmeter, test for continuity between the terminals of the switch as specified. See Fig 1 and Fig 2 .
  4. If test results are not as specified, replace switch.

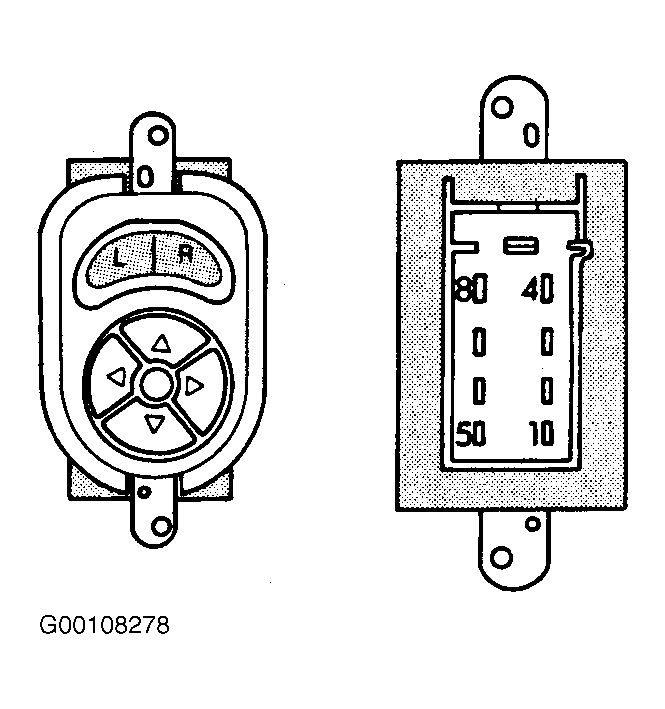

Fig 1: Identifying Power Mirror Switch Terminals
G00108278Courtesy of CHRYSLER CORP.

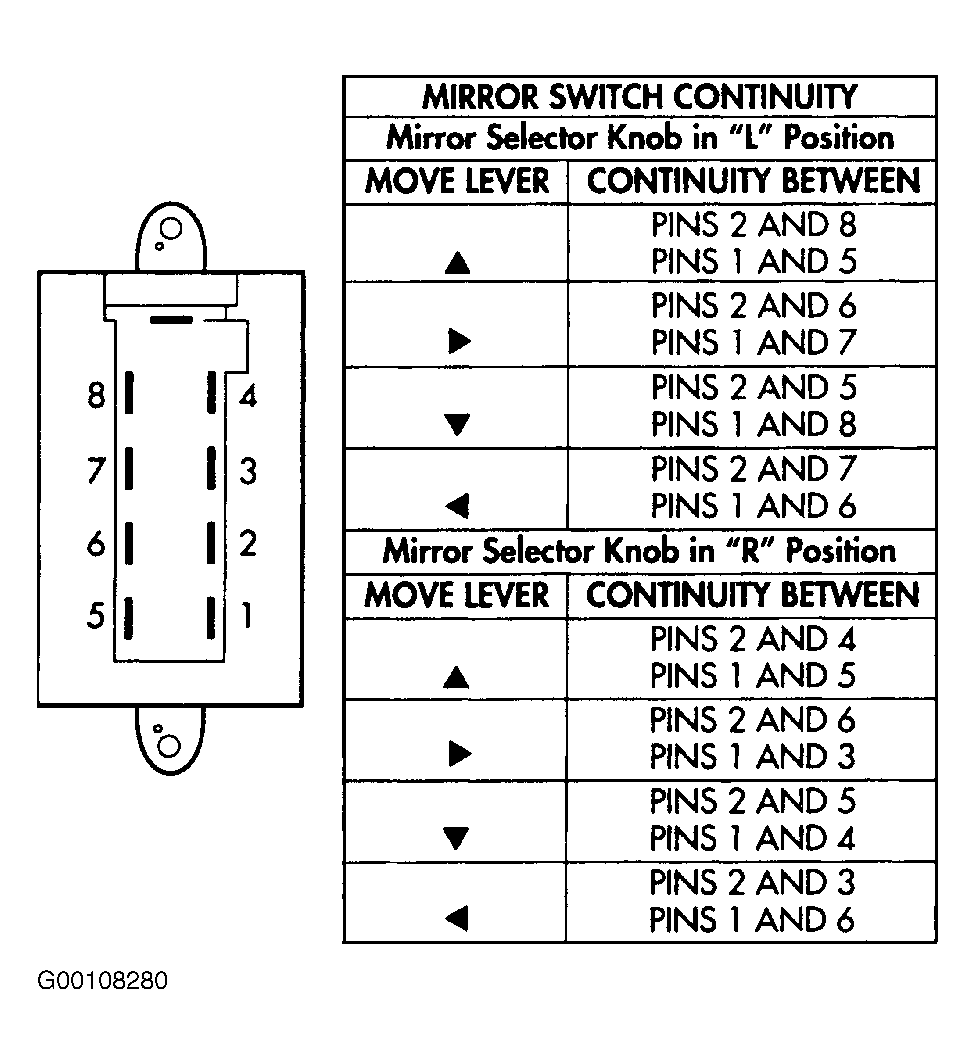

Fig 2: Testing Mirror Switch
G00108280Courtesy of CHRYSLER CORP.
