Mirror Motor
- Remove door trim panel. See DOOR TRIM PANEL
under REMOVAL & INSTALLATION.
- Remove switch mounting screws from back side of trim panel and remove switch.
- Disconnect wire connector.

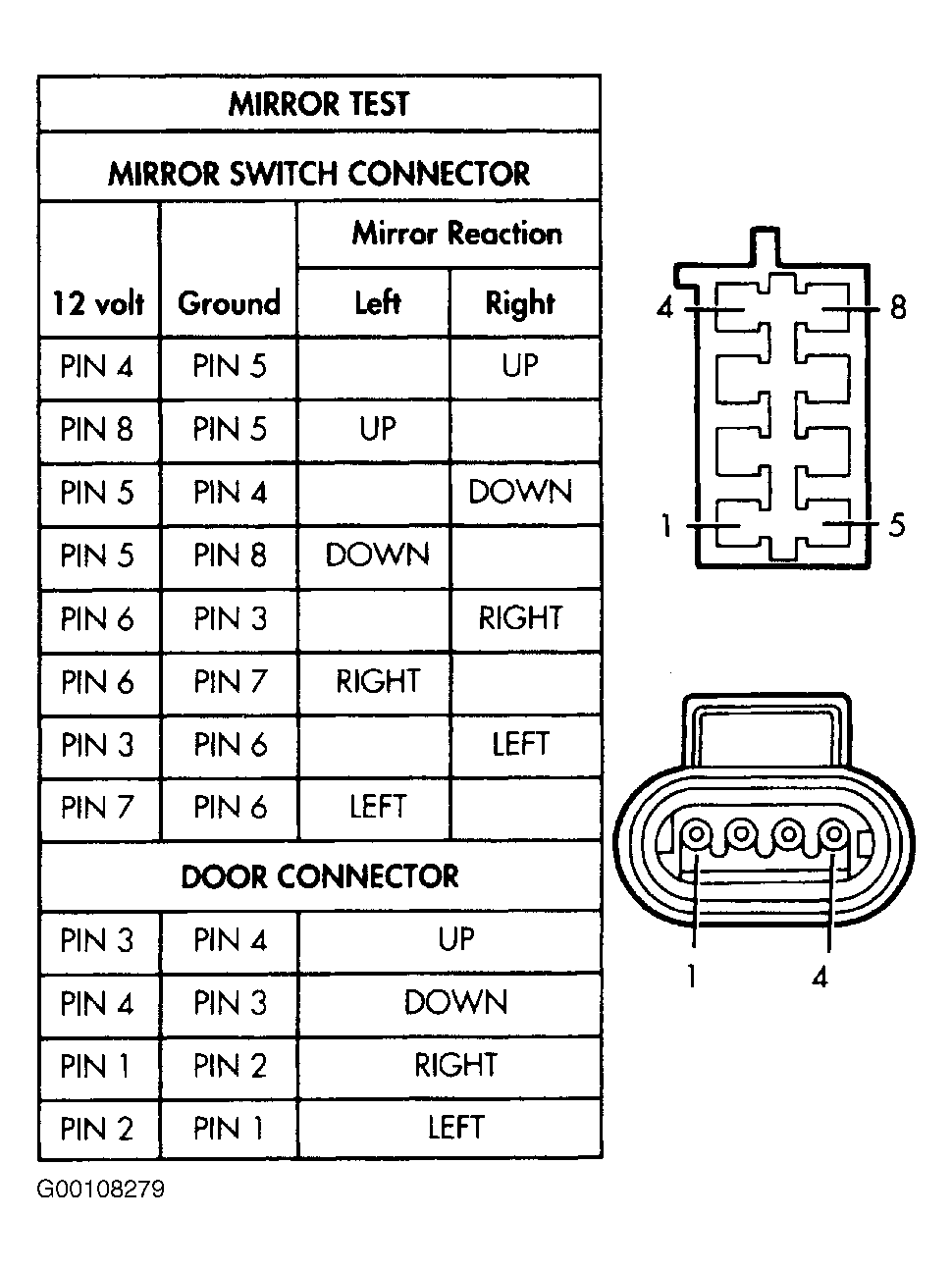

- Using two jumper wires, one connected to a 12 volt source, and the other connected to a good body ground, probe terminals as specified. See Fig 1
.
- If test results are not obtained as specified, check appropriate wiring for open or shorted circuit, or replace mirror assembly as necessary.
Courtesy of CHRYSLER CORP.
