Fuel Level Sensor

Using ohmmeter, check resistance between sensor signal and sensor ground terminals of fuel pump module connector with fuel lever sensor in indicated positions. See FUEL LEVEL SENSOR RESISTANCE table. See Fig 1 .

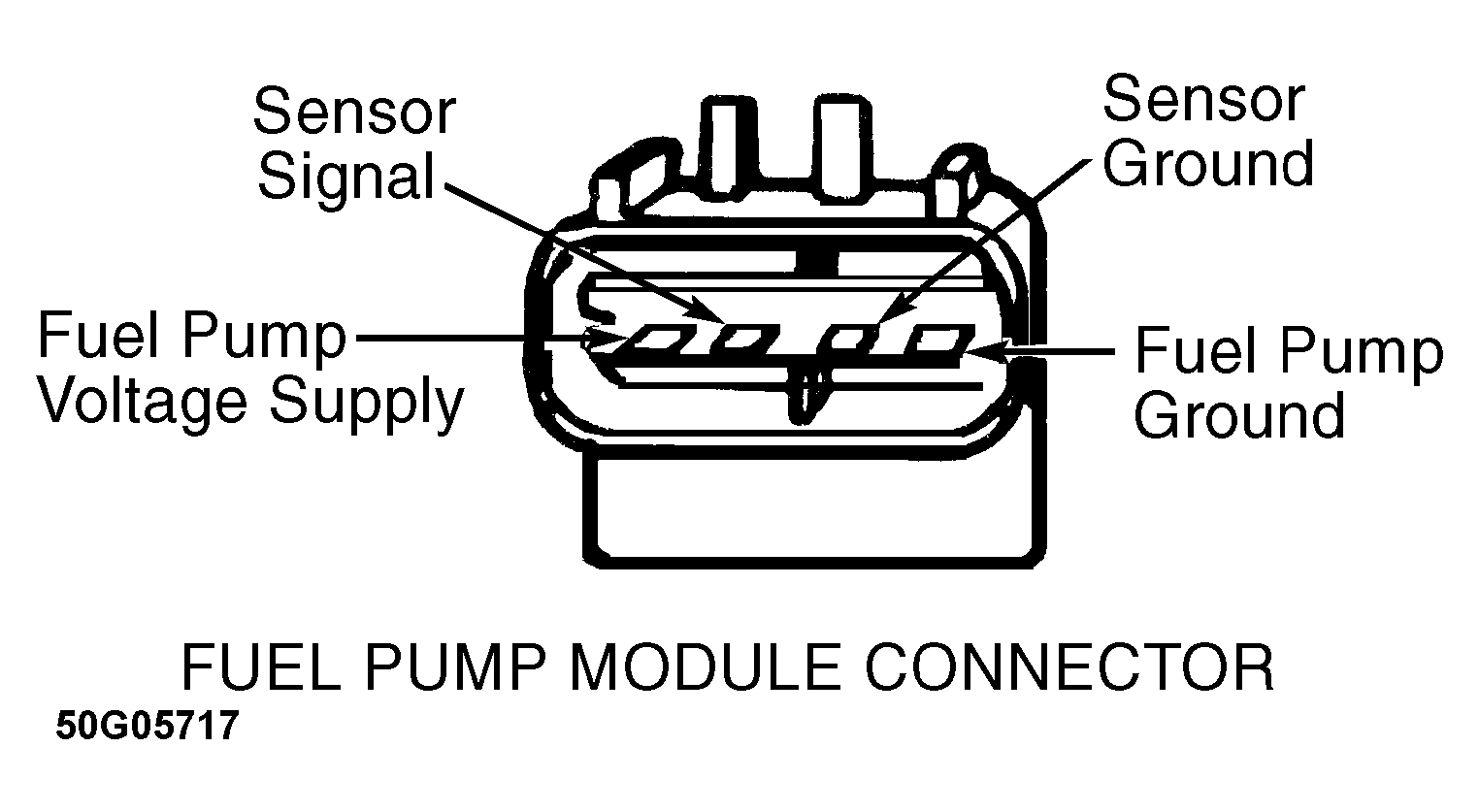

Fig 1: Testing Fuel Pump Module Connector Level Sensor

Courtesy of CHRYSLER CORP.

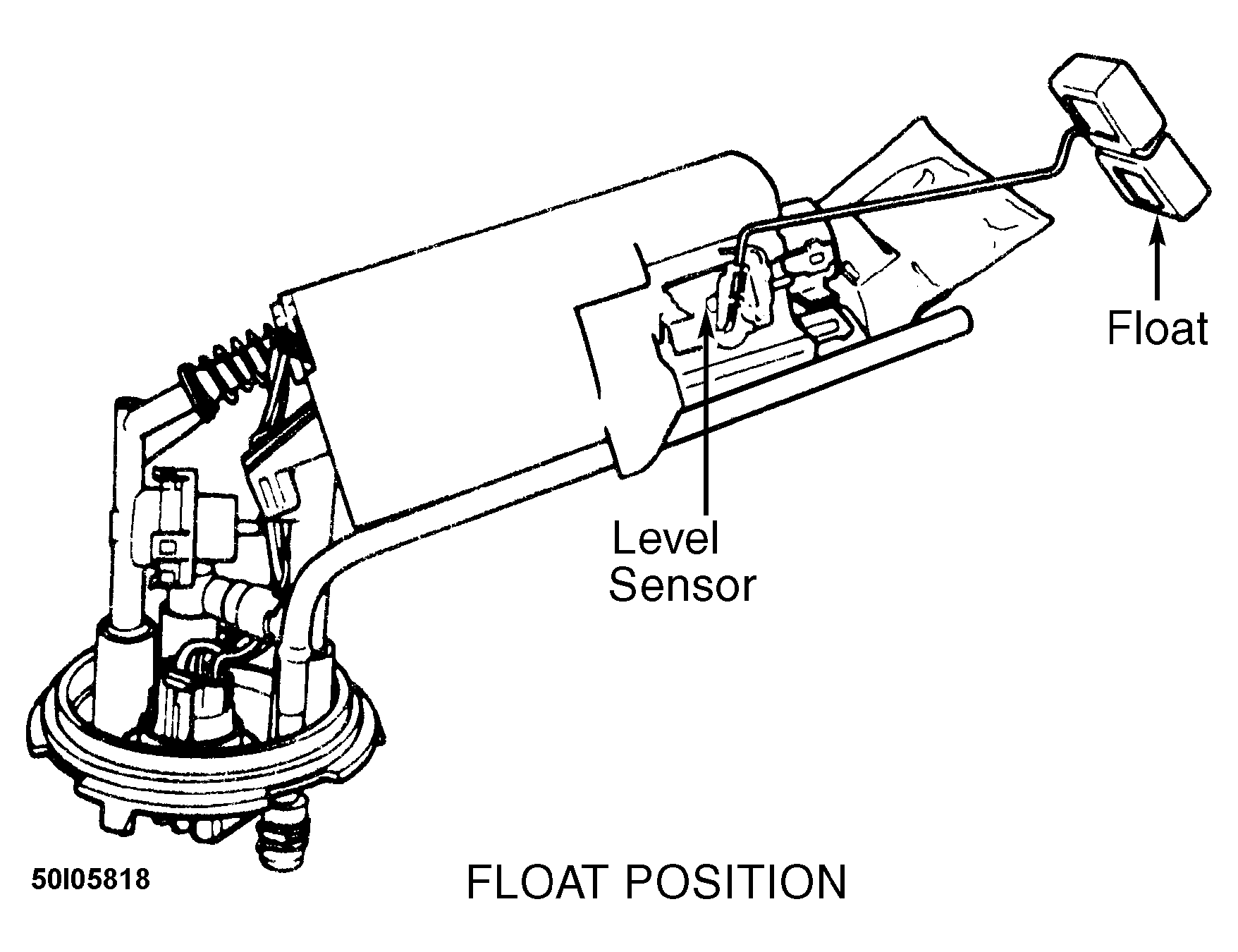

Fig 2: Testing Float Position Level Sensor

Courtesy of CHRYSLER CORP.
