Seat Switch Continuity Test

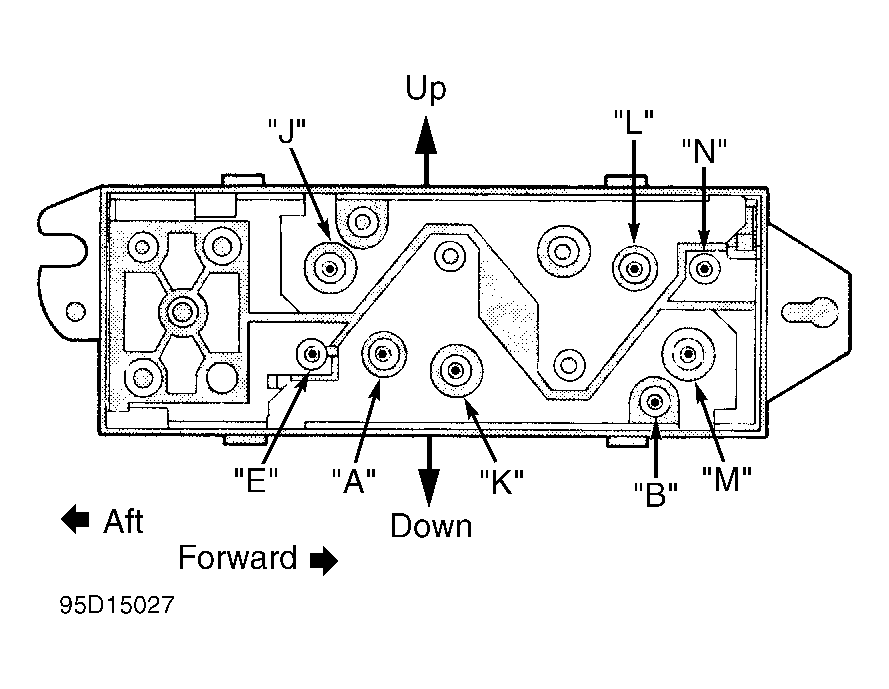

Remove power seat position switch from its mounting and disconnect from wiring harness. Using an ohmmeter, perform continuity check between pins with switch set in specified position. See appropriate POWER SEAT SWITCH CONTINUITY CHECK table. See Fig 1 . If there is no continuity at any of the switch positions, replace switch.
POWER SEAT SWITCH CONTINUITY CHECK
| Switch Position | Check Continuity Between Pins |
|---|---|
| Off | B & N; B & J; B & M; B & E; B & L; B & K |
| Vertical Up | A & E; A & M; B & N; B & J |
| Vertical Down | A & J; A & N; B & M; B & E |
| Horizontal Forward | A & L; B & K |
| Horizontal Aft | A & K; B & L |
| Front Tilt Up | A & M; B & N |
| Front Tilt Down | A & N; B & M |
| Rear Tilt Up | A & E; B & J |
| Rear Tilt Down | A & J; B & E |
