Repair and Diagnosis: Transmission: Clutches: Description

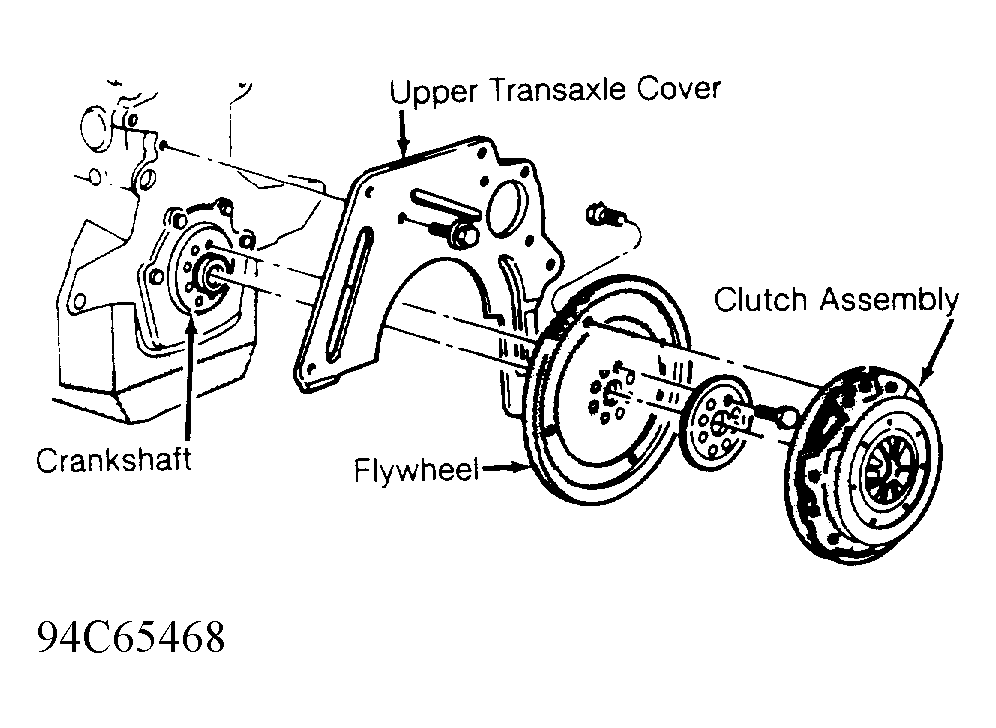

Clutches are a single plate, dry disc-type with a self-adjusting cable release mechanism. See Fig 1 . Clutch pedal is connected to a torque shaft through a cable and lever. Upper end of clutch pedal pivots on a pedal bracket using 2 nylon bushings, which do not require periodic lubrication. All models use a constant-running clutch release bearing.
