Description & Operation

All models use collapsible steering columns with an integral ignition switch and locking device. See Fig 1 or Fig 2 . Optional tilt wheel is available.

WARNING: On models with Air Bag Restraint System (ABRS), observe precautions before any repairs are performed. See AIR BAG PRECAUTIONS . Use caution when working around steering column (air bag could deploy).

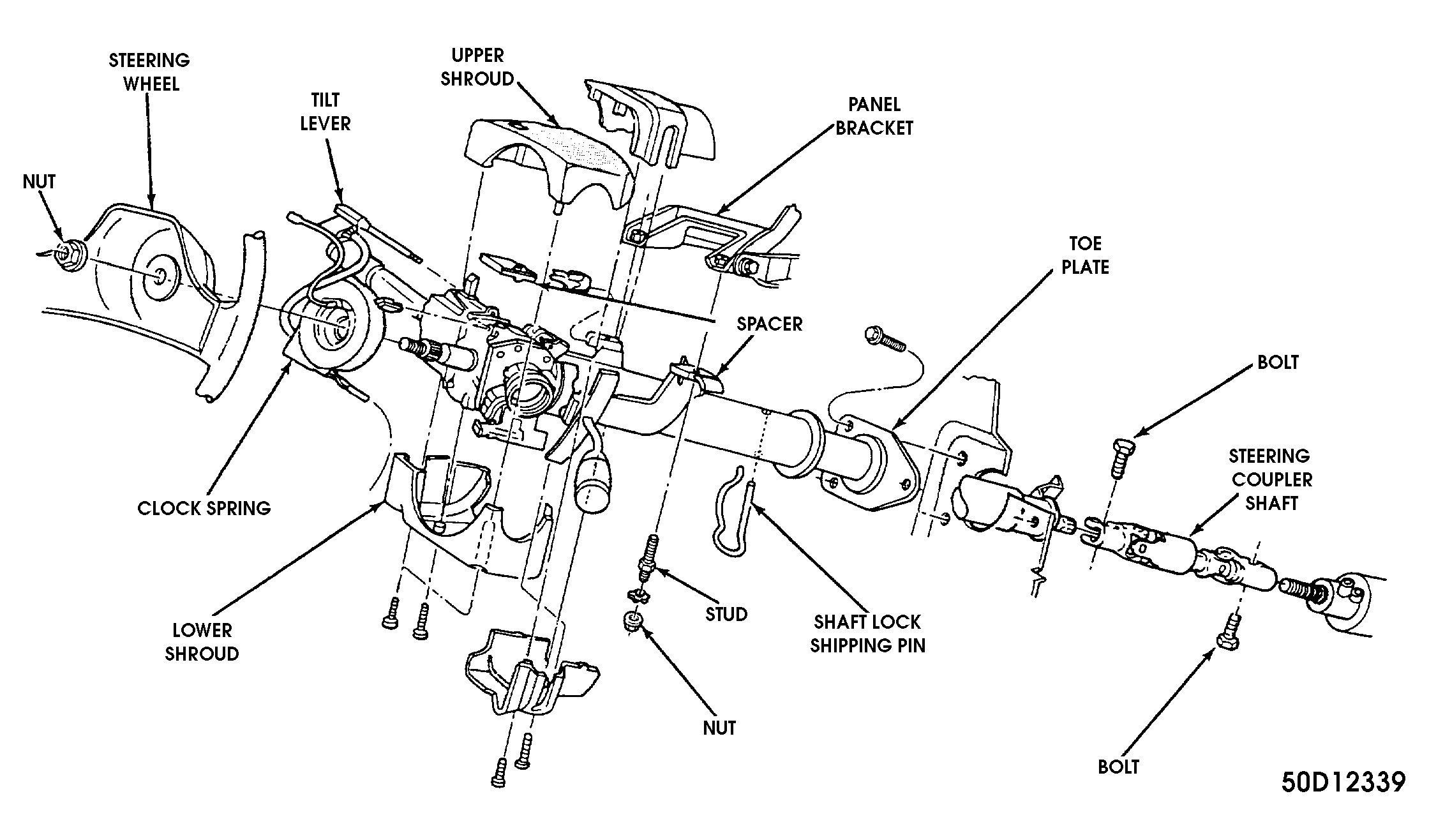

Fig 1: Exploded View Of Steering Column - FWD (Typical)

Courtesy of CHRYSLER CORP.

Fig 2: Exploded View Of Steering Column - RWD (Typical)

Courtesy of CHRYSLER CORP.
