Cable Operation

Clutch release cable is self-adjusting. When cable is properly installed, spring on clutch pedal will hold release cable in proper position, regardless of clutch disc wear. See Fig 1 .

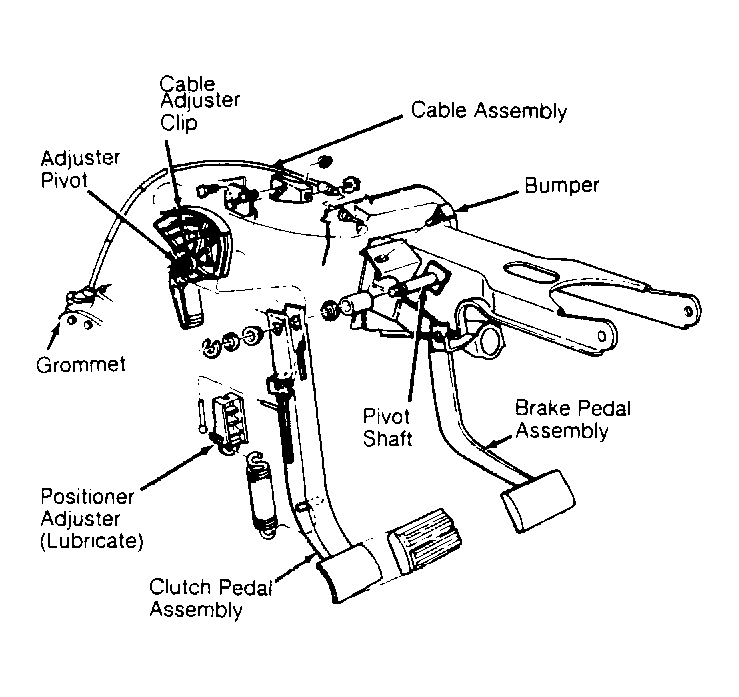

Fig 1: Exploded View Of Self-Adjusting Clutch Release Mechanism

Courtesy of CHRYSLER CORP.
