Home >> Plymouth >> 1993 >> Laser Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Wiring Diagrams

Wiring Diagrams

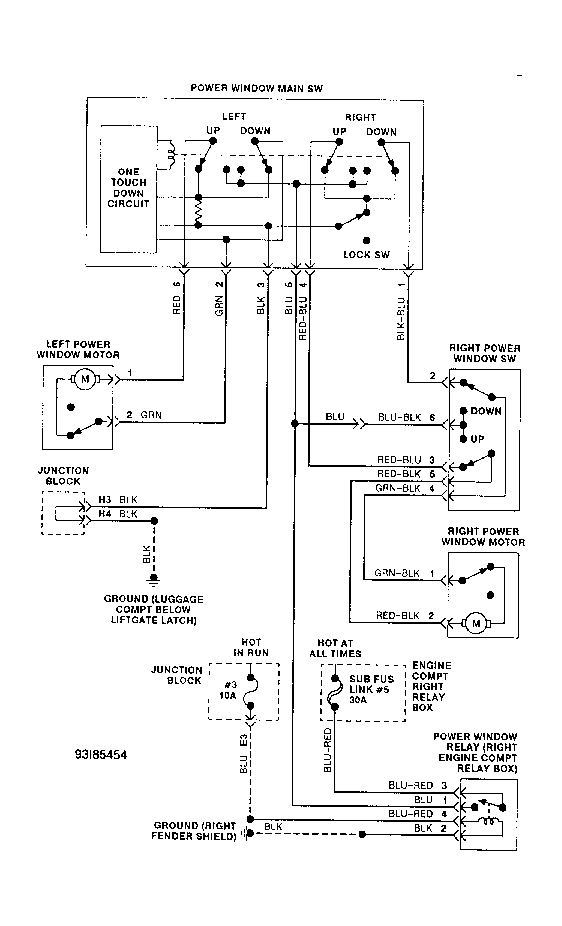

Fig 1: Power Windows Wiring Diagram (All Models)

G93I85454
