Fuel Pump Module Wiring Connector And Service Manual Revision Pages (14-17-93)

Publication date: 1993-10-29
Reference number: 14-17-93

FUEL PUMP MODULE WIRING CONNECTOR AND SERVICE MANUAL REVISION PAGES

TECHNICAL SERVICE BULLETIN

Reference Number(s): 14-17-93, Date of Issue: October 29, 1993

CHRYSLER:	1991-1994 (AS) Town & Country
DODGE:	1991-1994 (AS) Caravan/Grand Caravan/Caravan CV
PLYMOUTH:	1991-1994 (AS) Voyager/Grand Voyager
GROUP:	Fuel System

Fuel Pump Module Wiring Connector And Service Manual Revision Pages

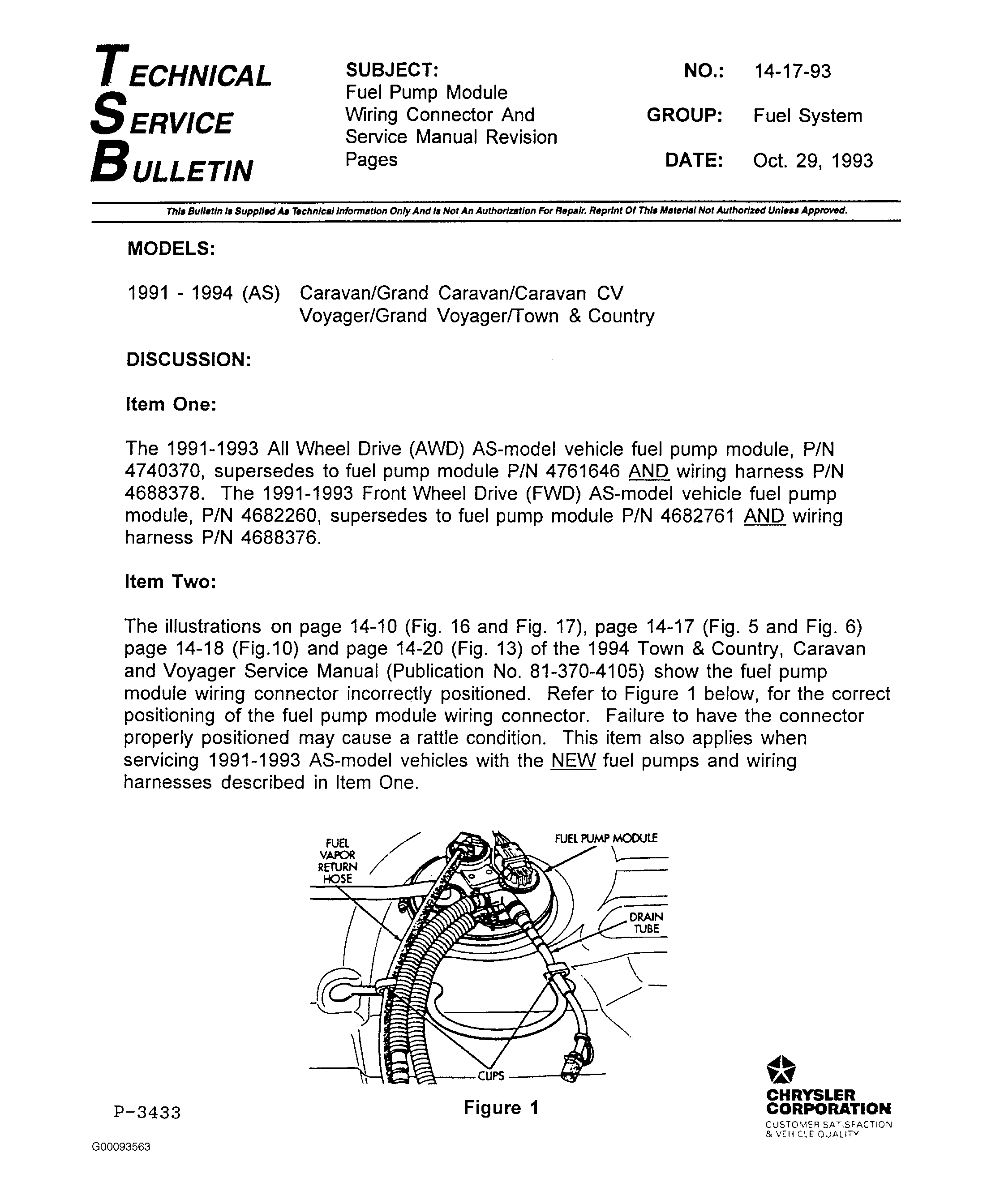

Fig 1: Page 1 of Bulletin

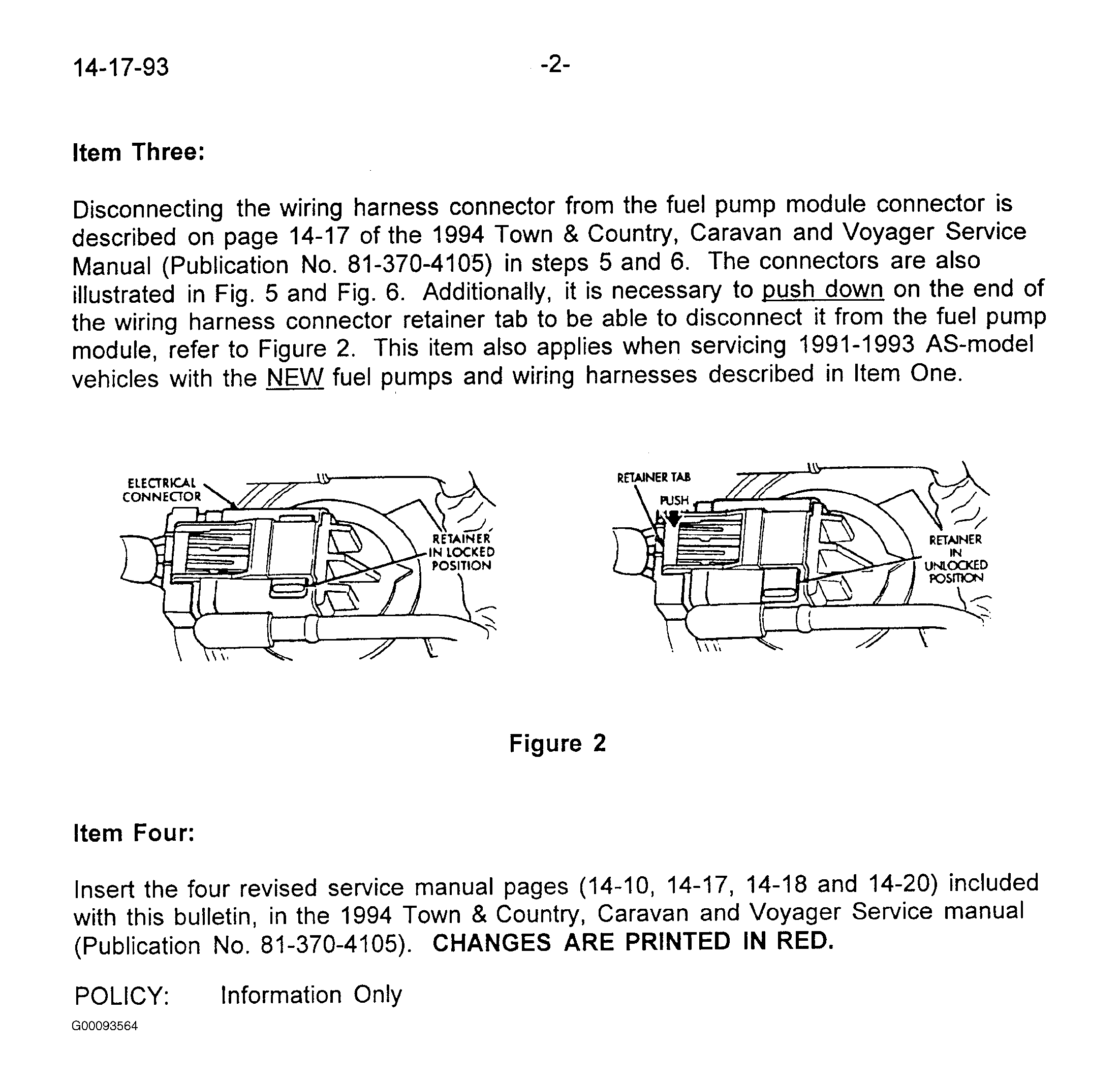

Fig 2: Page 2 of Bulletin

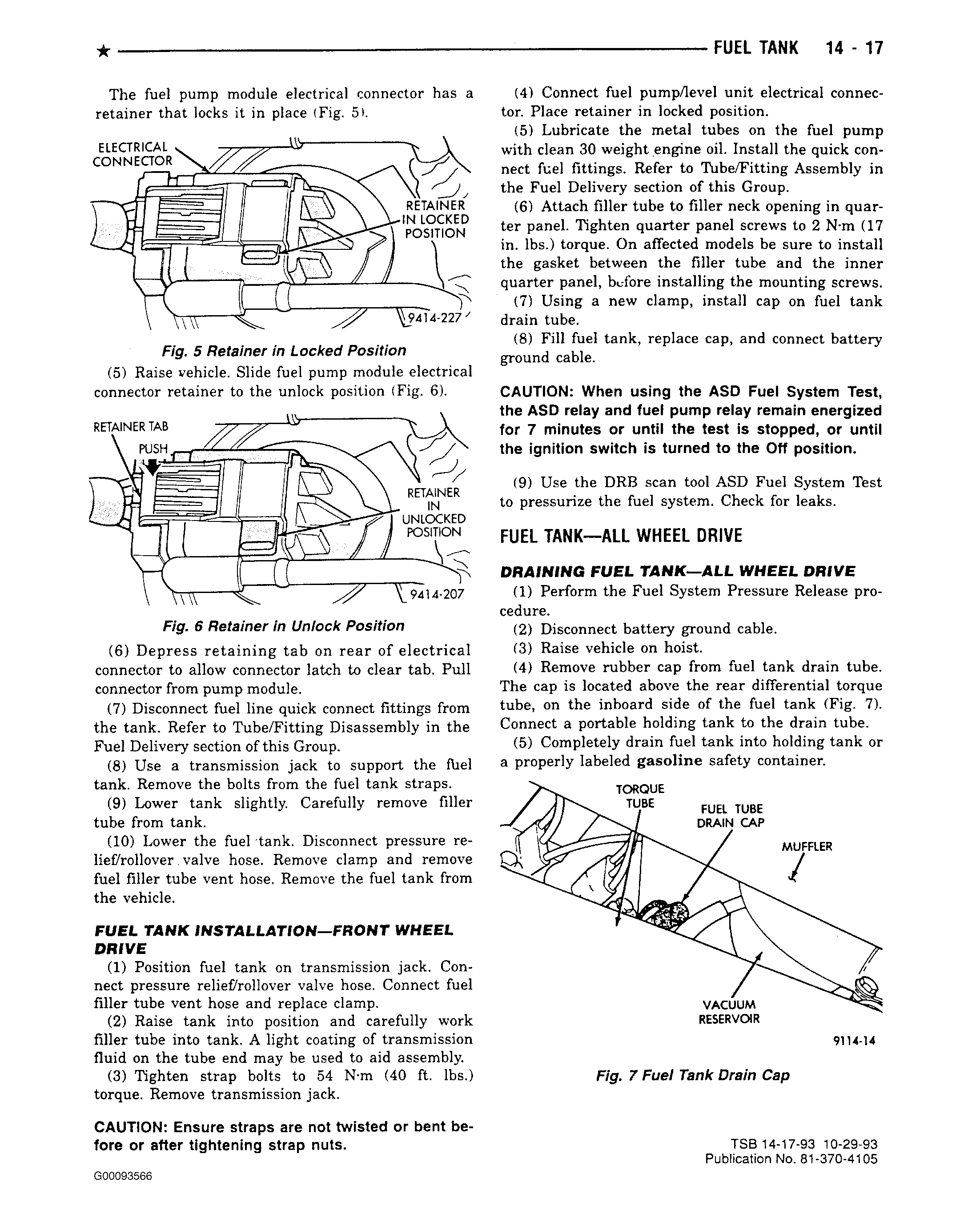

Fig 3: Page 3 of Bulletin

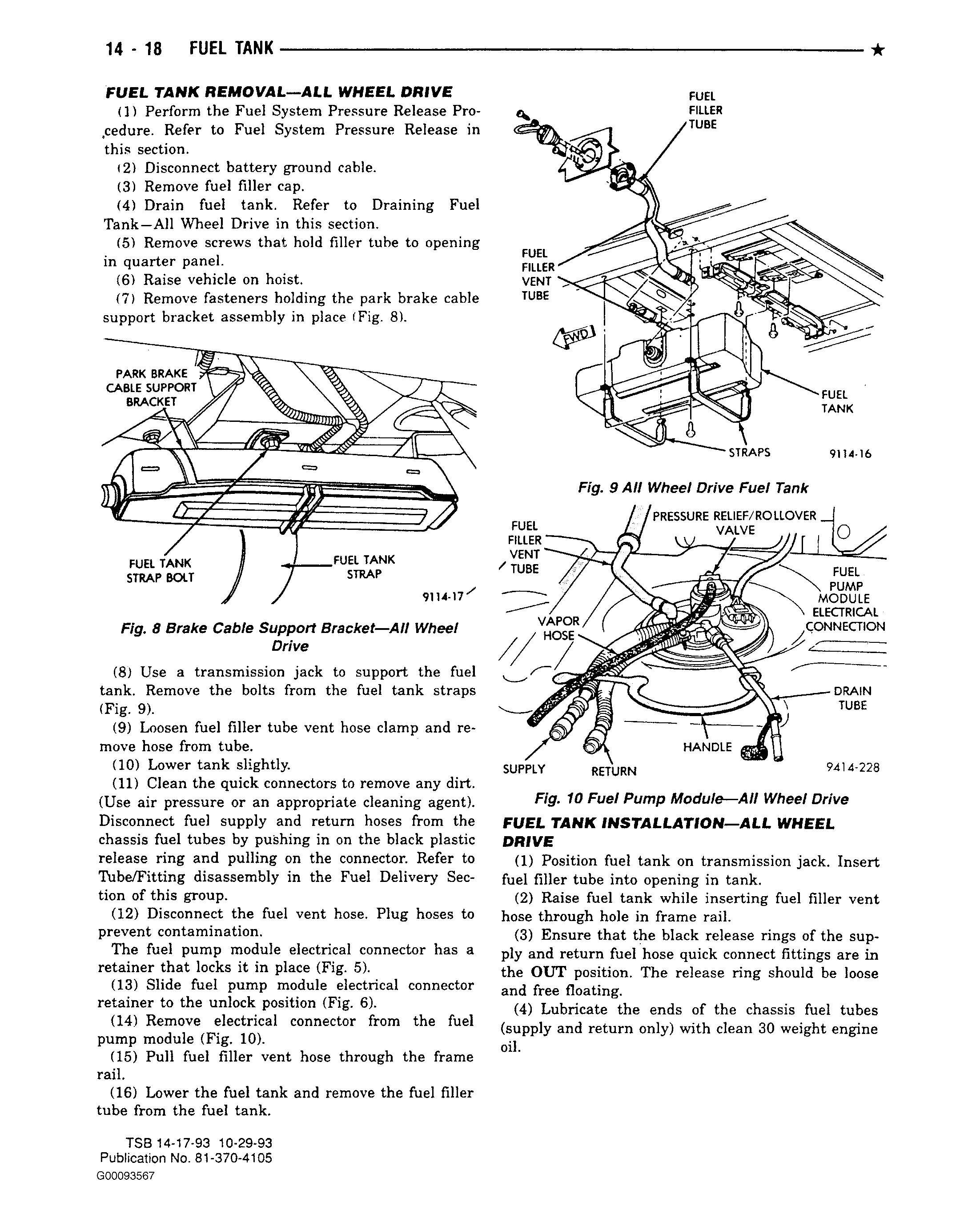

Fig 4: Page 4 of Bulletin

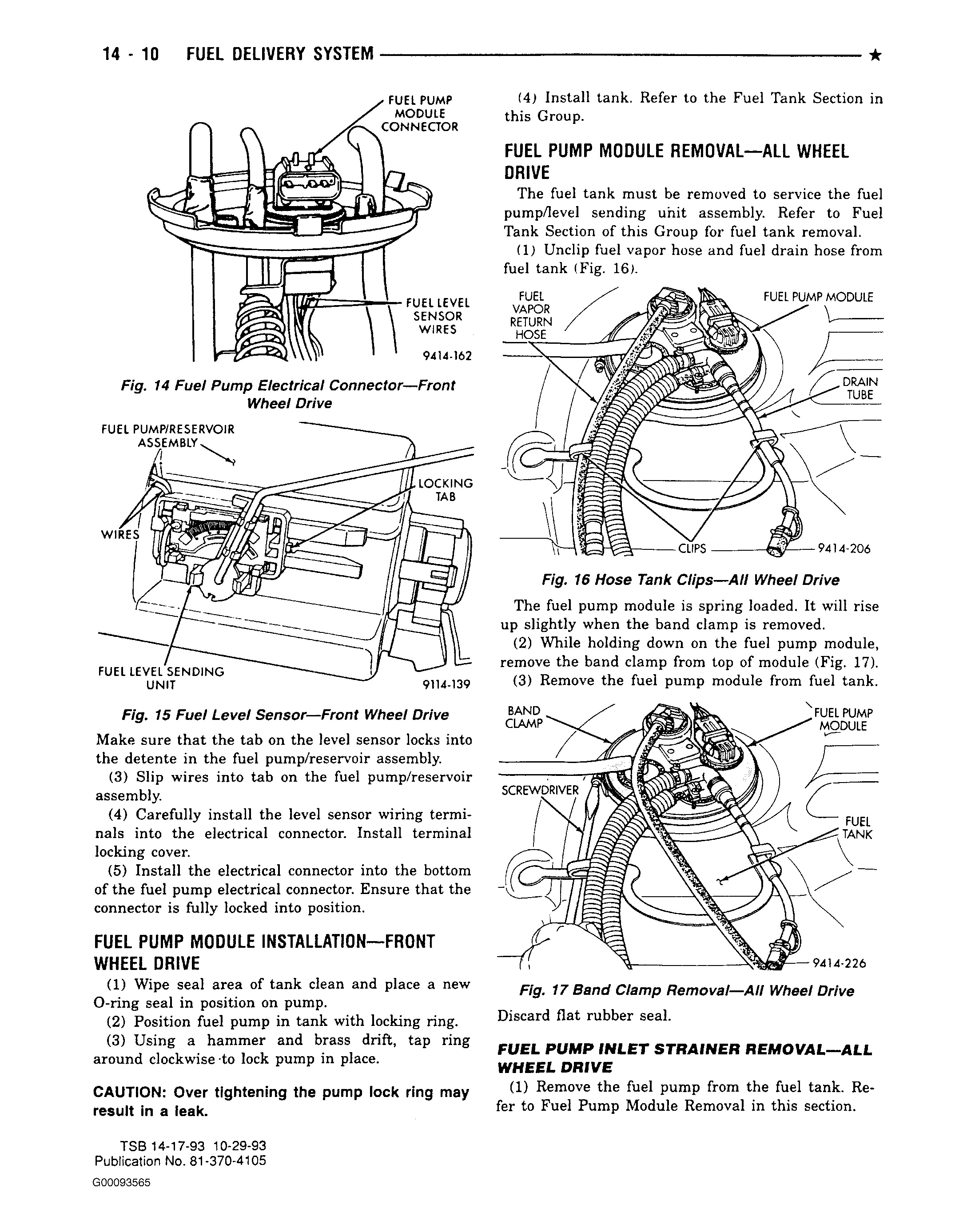

Fig 5: Page 5 of Bulletin

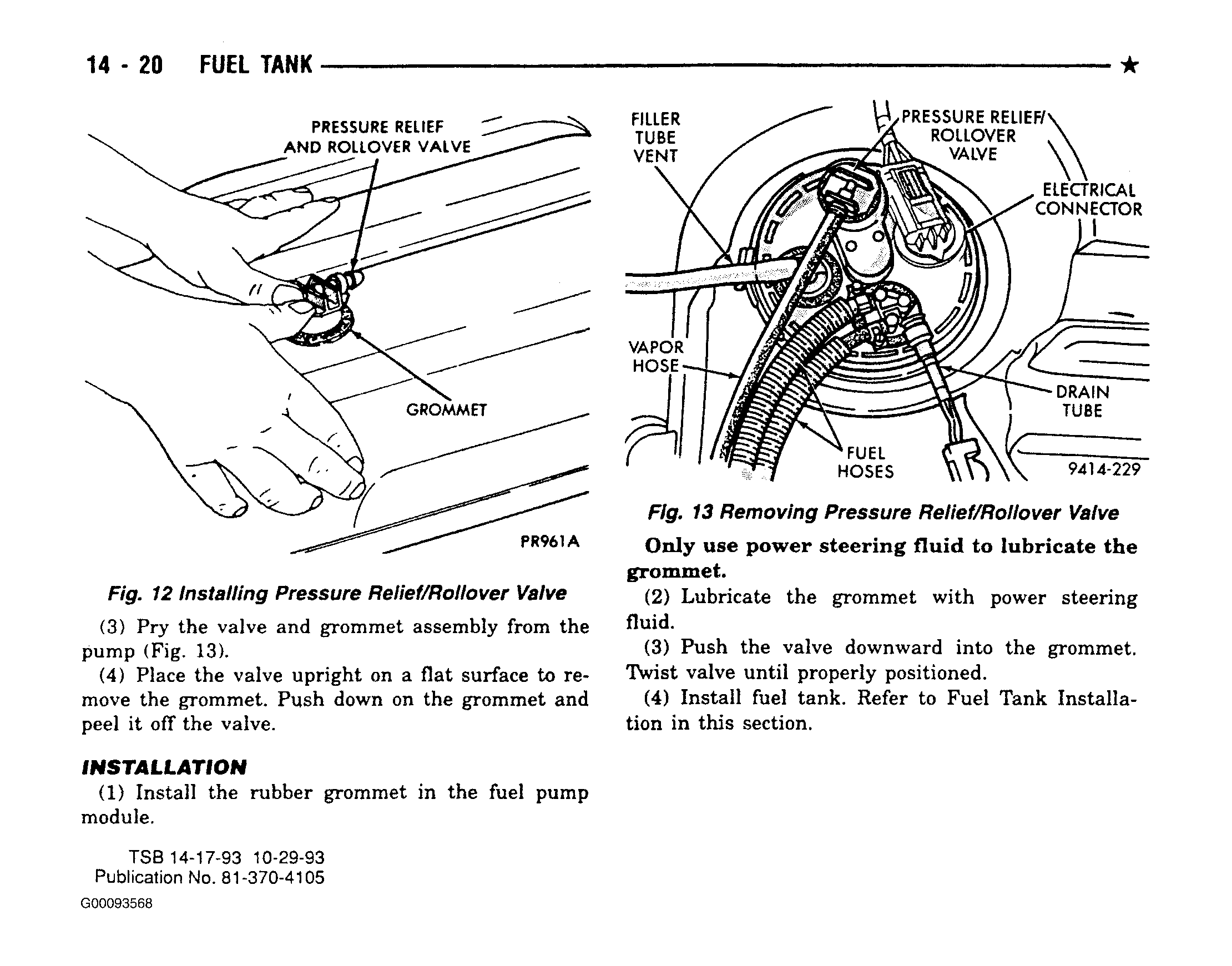

Fig 6: Page 6 of Bulletin
