Fuel Pump Module (Except Mini-Van): Installation

Install fuel pump module into fuel tank. Push module down, and install lock nut. Install fuel tank. See FUEL TANK.

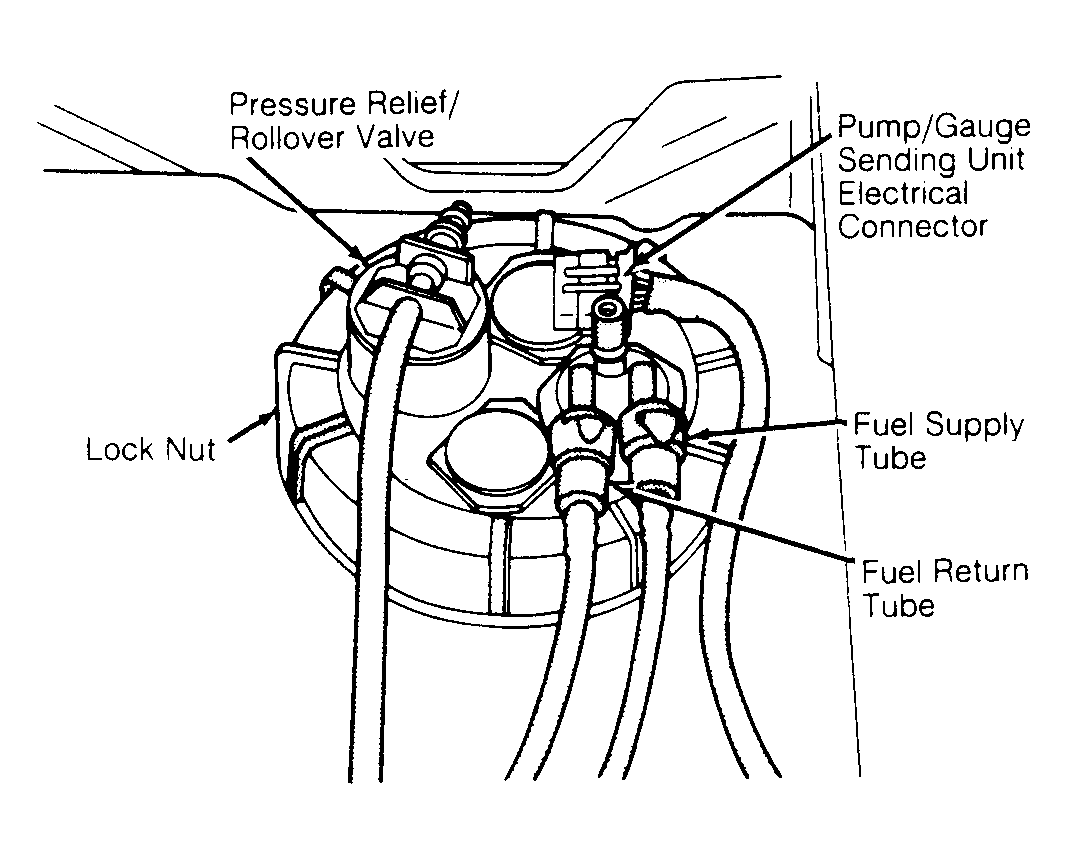

Fig 1: Servicing Fuel Pump Module (Except Mini-van)
G91A13581Courtesy of CHRYSLER MOTORS.
