Wiring Diagrams

NOTE: Body ground No. 2 is located behind left headlight. Body ground No. 3 is located in right front corner of engine compartment, near battery.

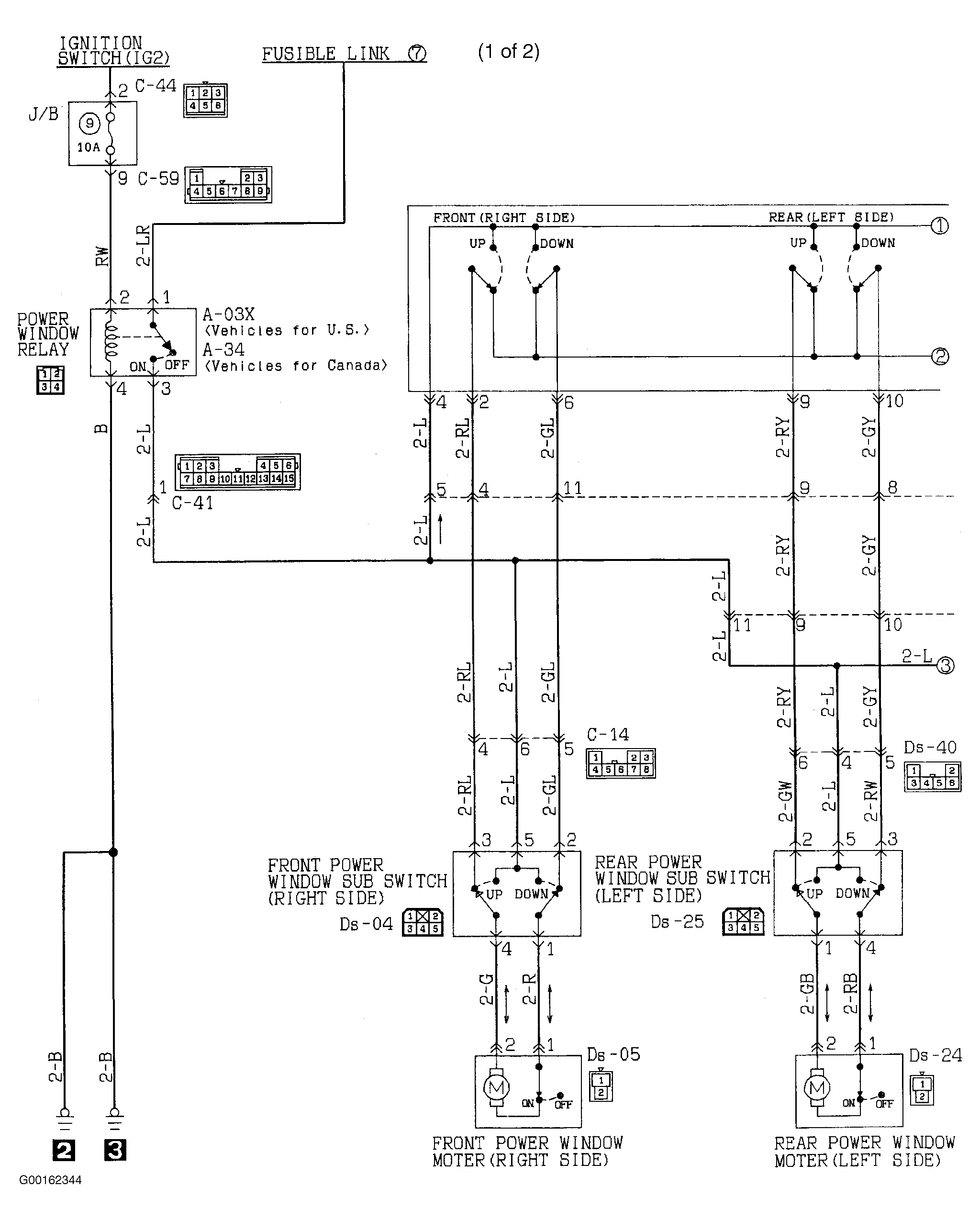

Fig 1: Power Window Circuit (4-Door - 1 Of 2)

Courtesy of CHRYSLER CORP.

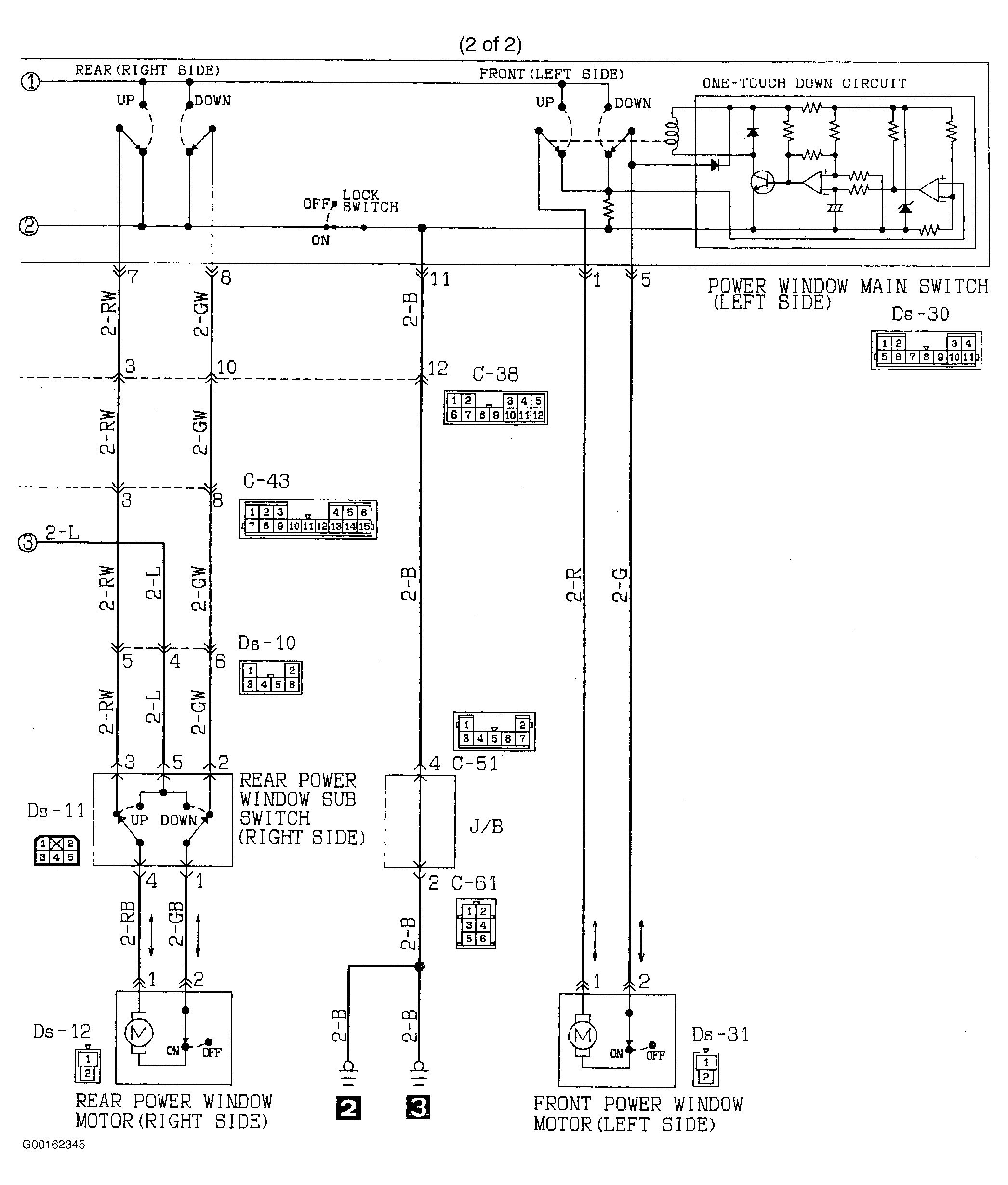

Fig 2: Power Window Circuit (4-Door - 2 Of 2)

Courtesy of CHRYSLER CORP.

NOTE: Body ground No. 9 is in rear of car on liftgate latch.

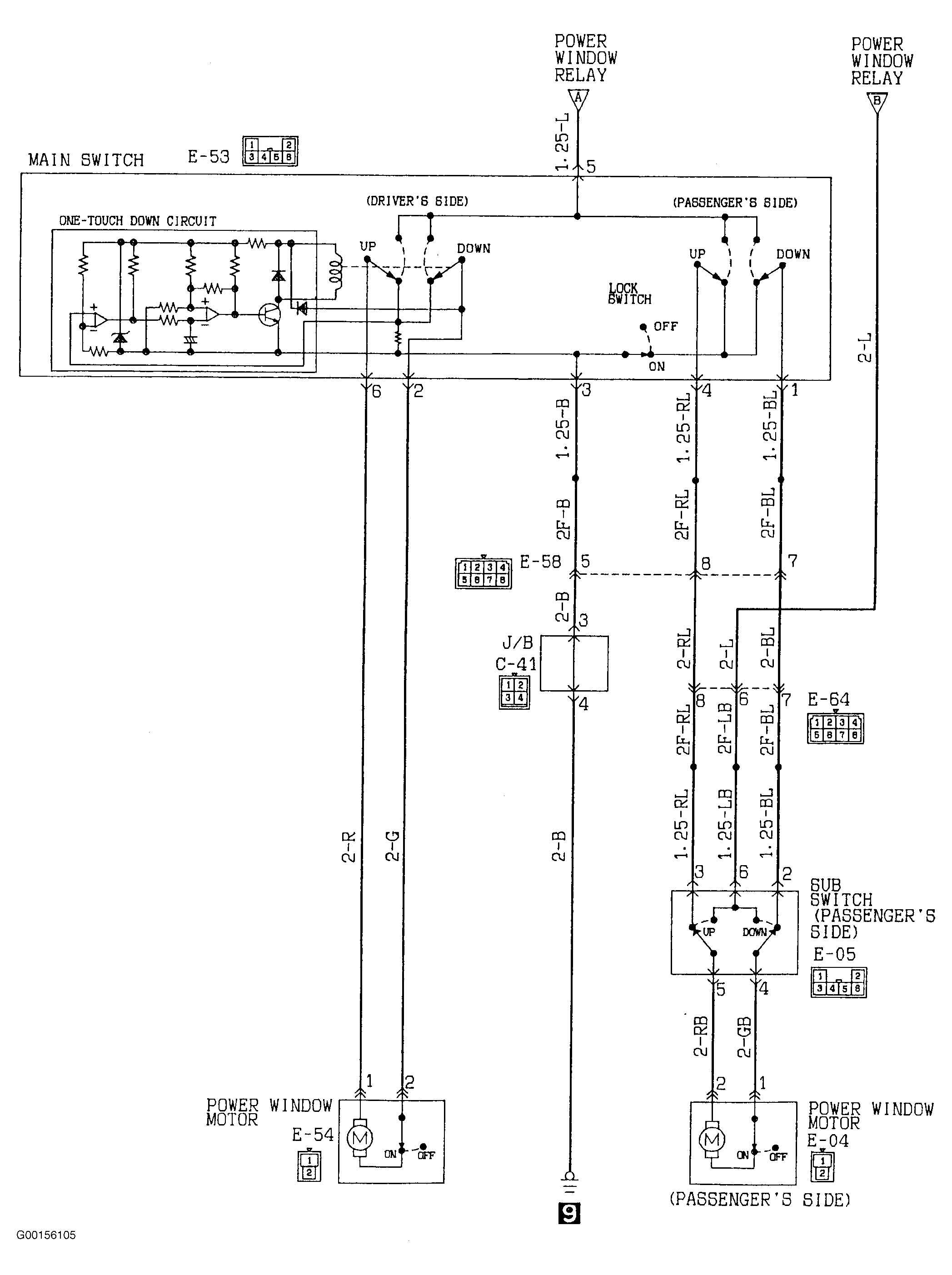

Fig 3: Power Window Circuit (2-Door)

Courtesy of CHRYSLER CORP.
