Dr-1A: Checking Fault Codes

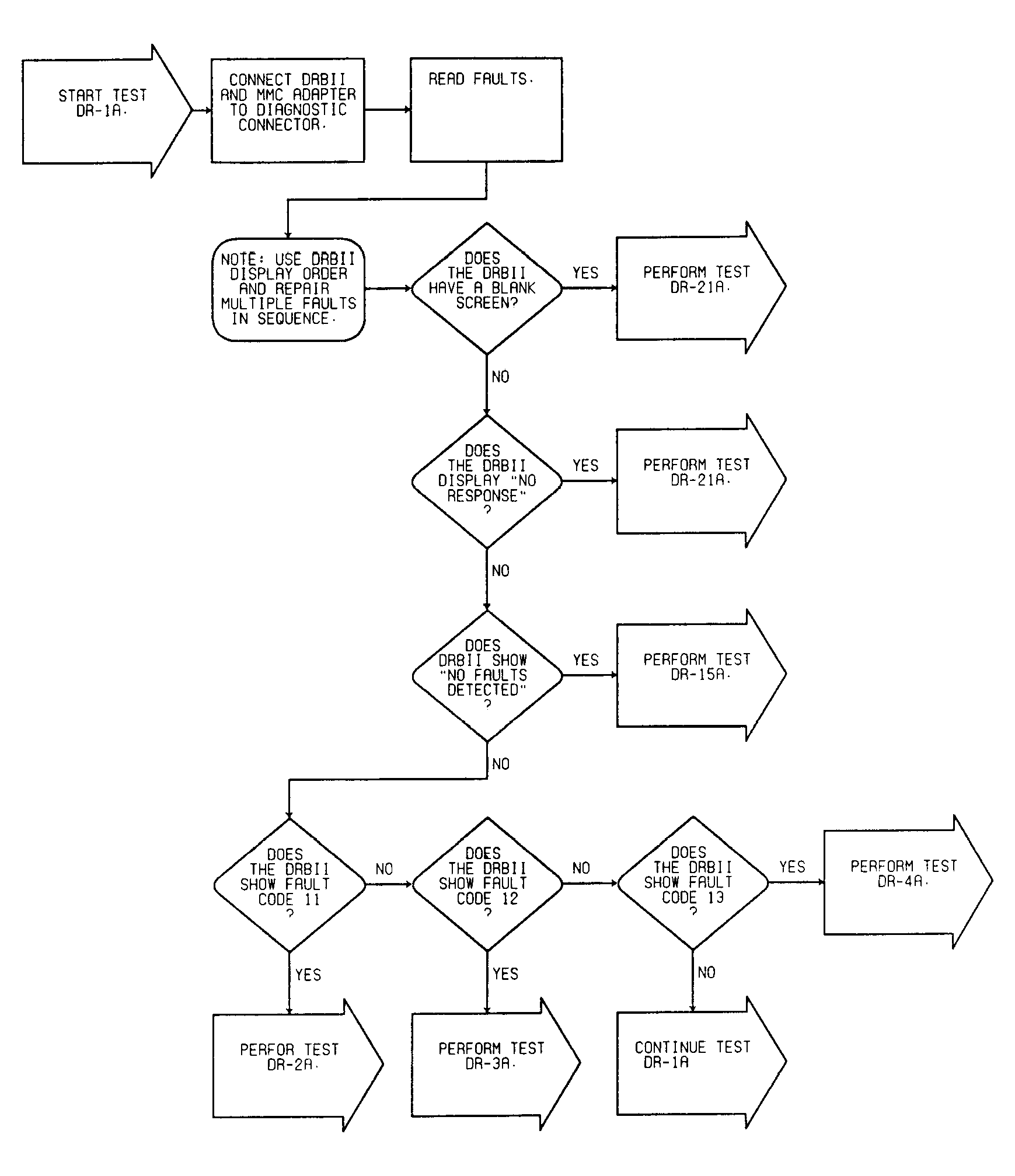

Fig 1: Driveability Test DR-1A: Diagnostic Flow Chart (1 of 2)

G91E10722

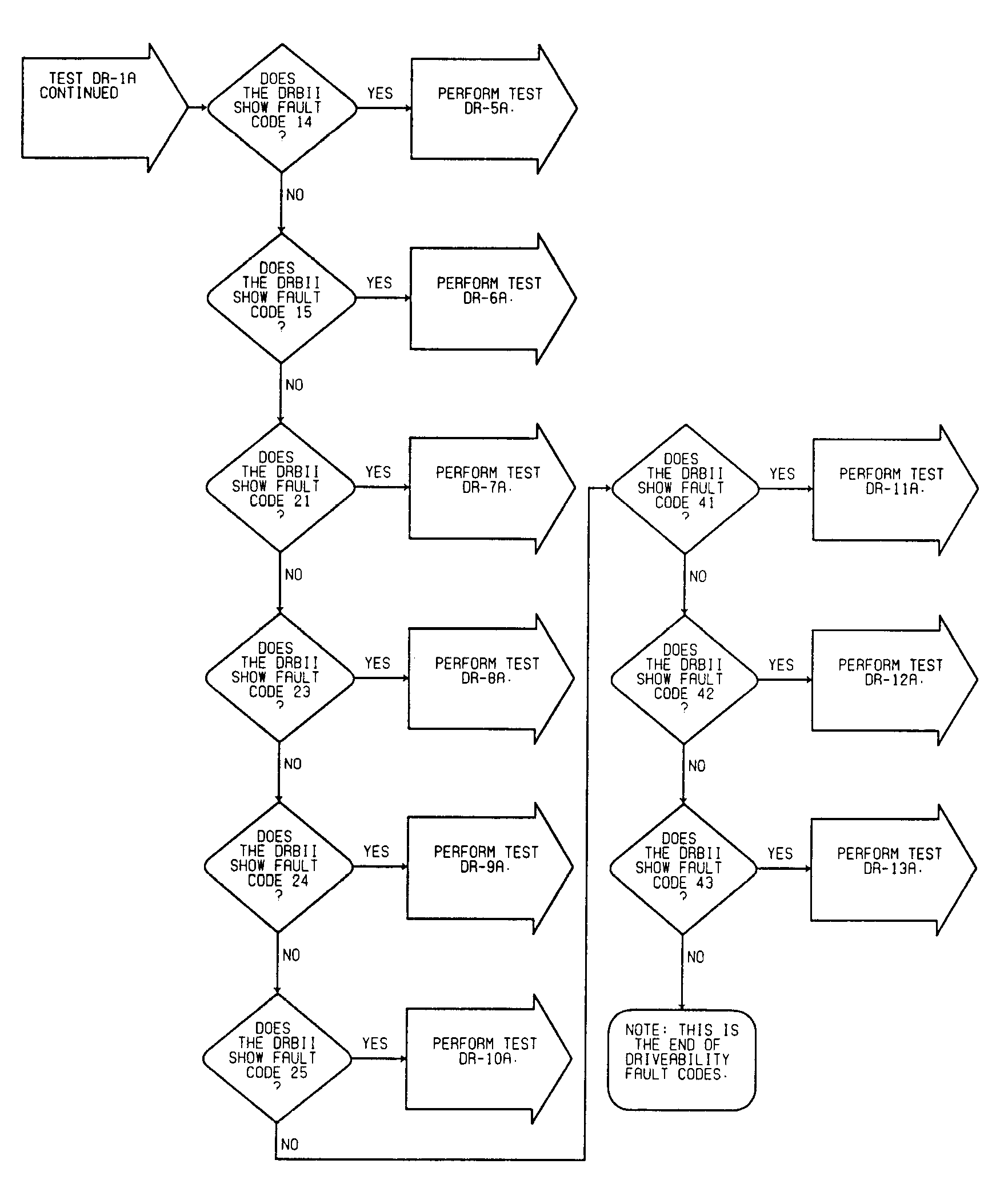

Fig 2: Driveability Test DR-1A: Diagnostic Flow Chart (2 of 2)

G91F10723
