Dr-16A: Testing Idle Speed Control Actuator

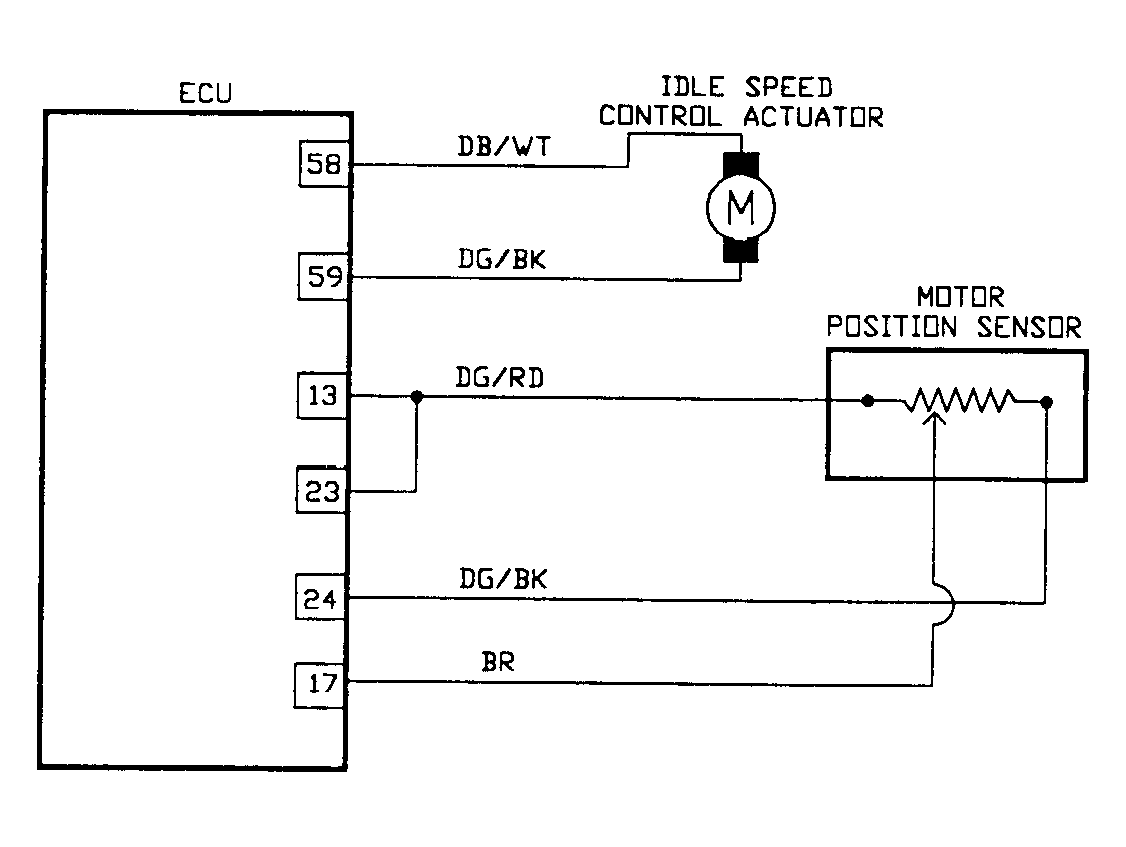

Fig 1: Driveability Test DR-16A: Circuit Diagram

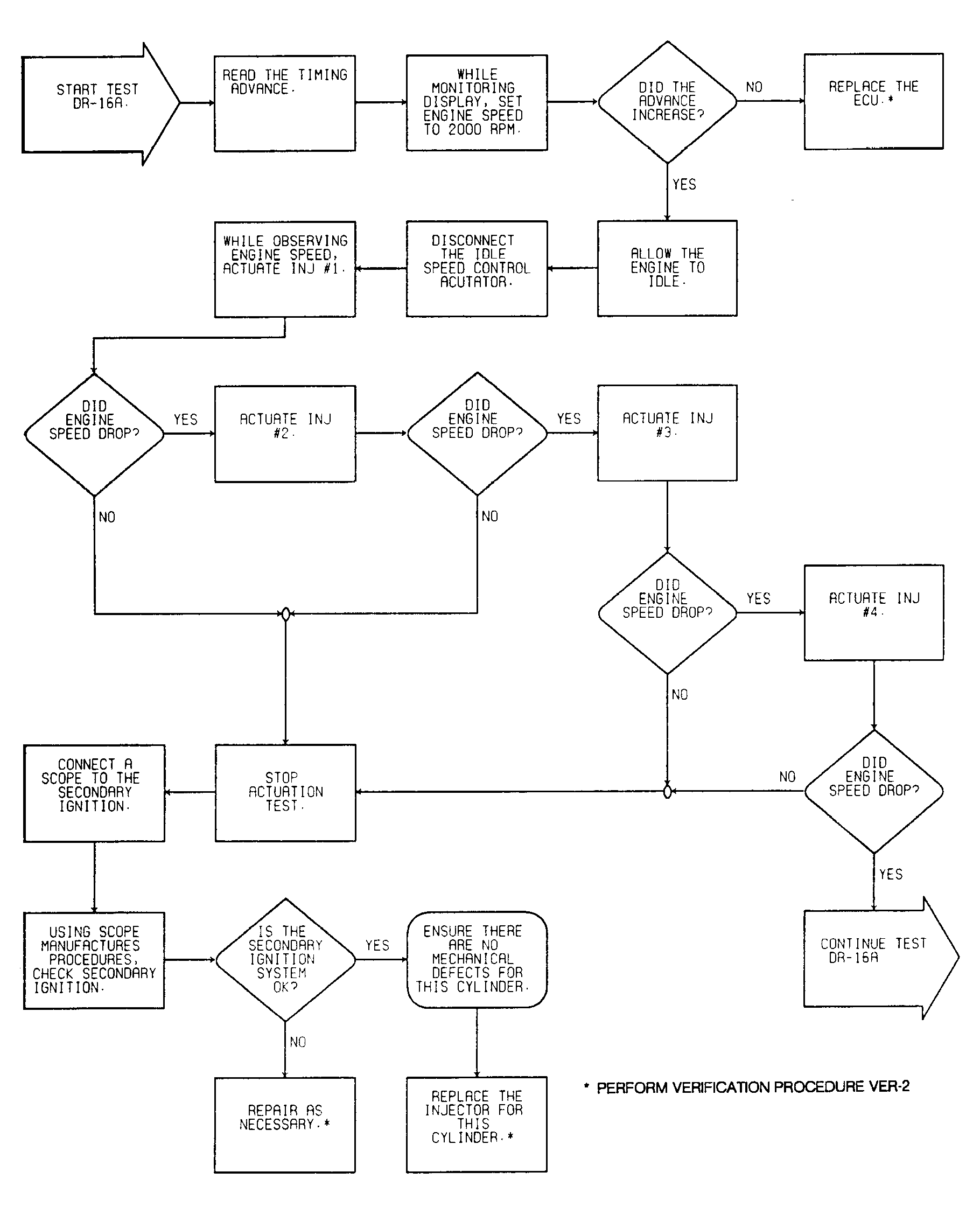

Fig 2: Driveability Test DR-16A: Diagnostic Flow Chart (1 of 3)

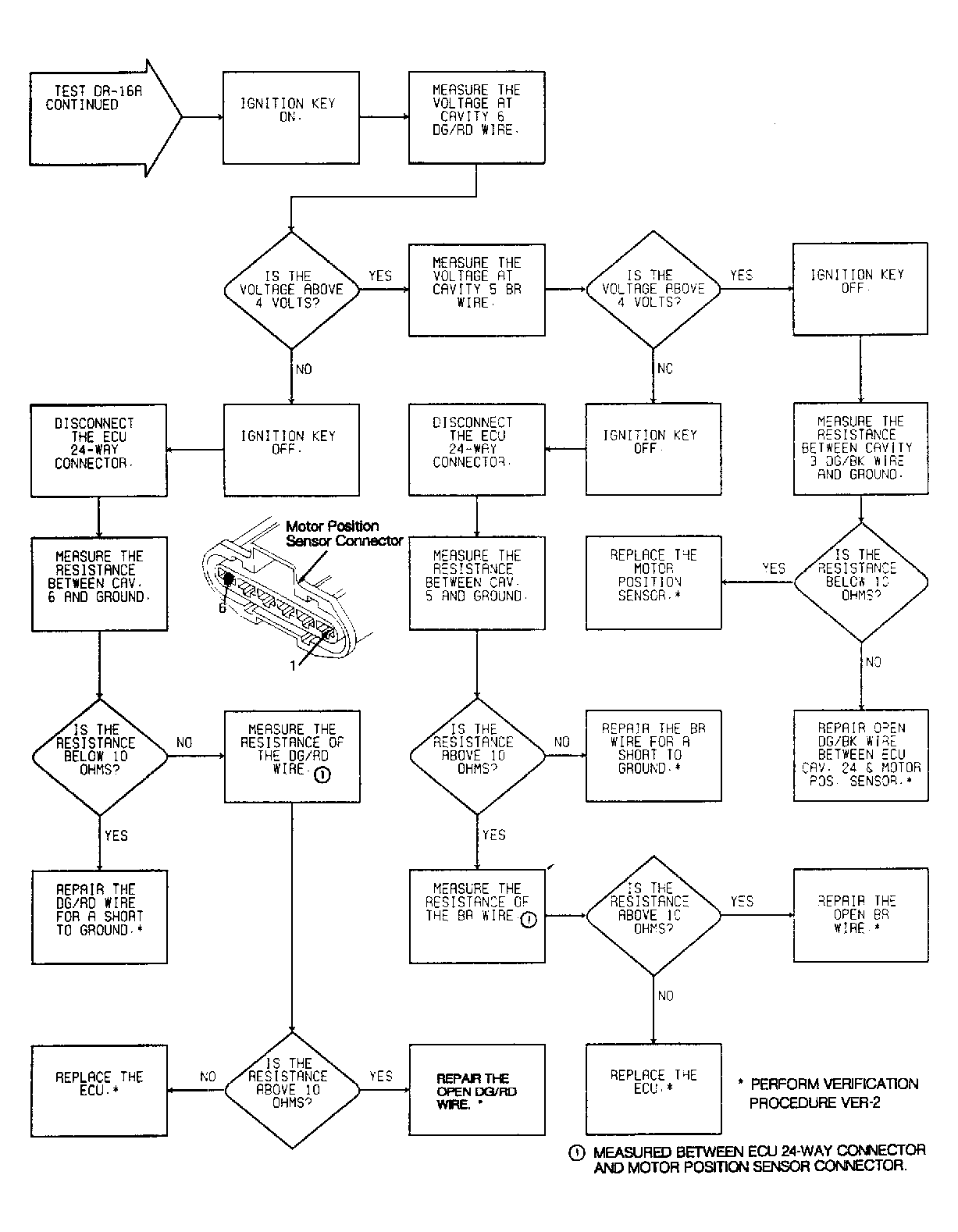

Fig 3: Driveability Test DR-16A: Diagnostic Flow Chart (2 of 3)

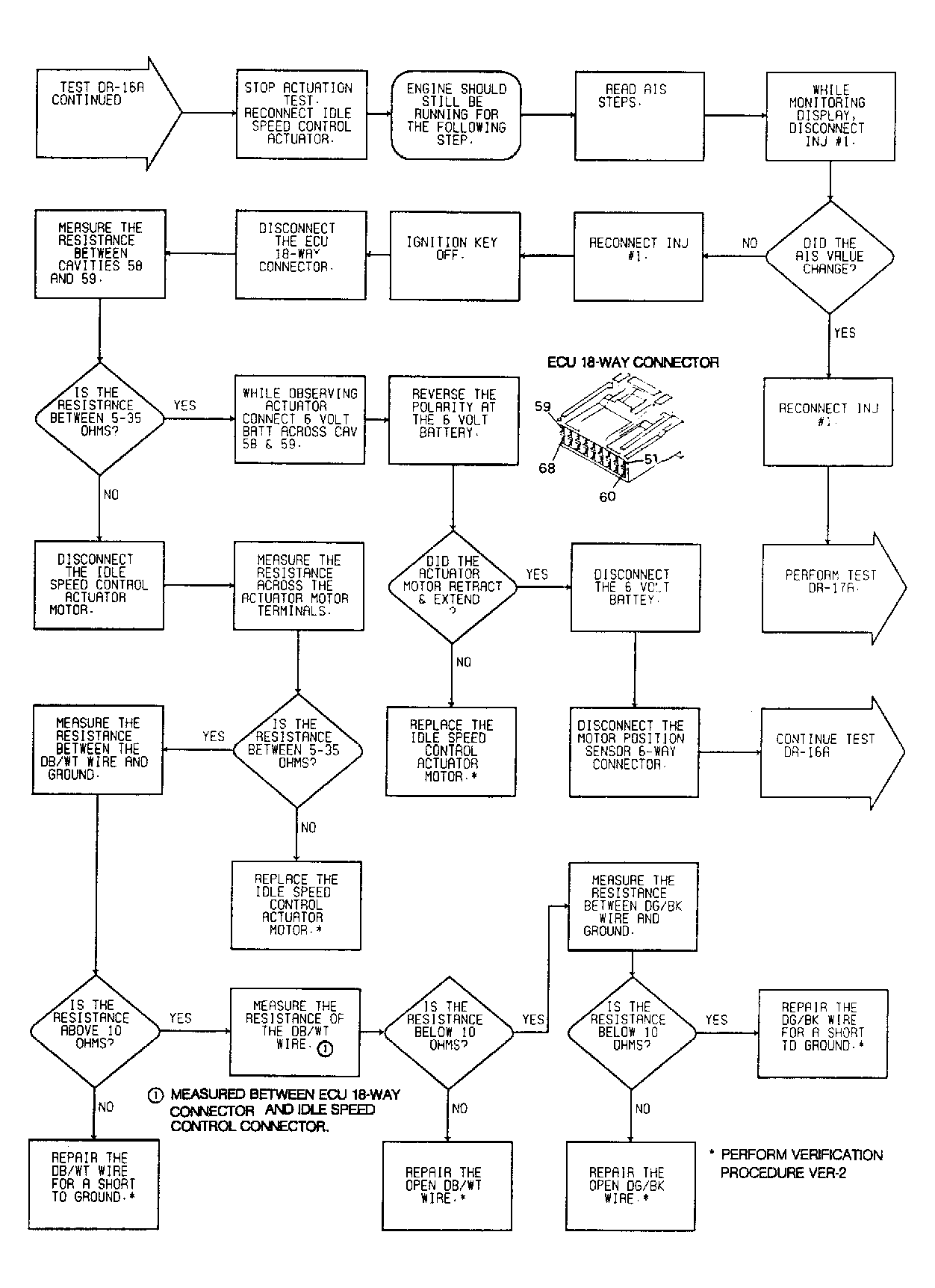

Fig 4: Driveability Test DR-16A: Diagnostic Flow Chart (3 of 3)
