Dr-12A: Testing Fuel Pump Sense

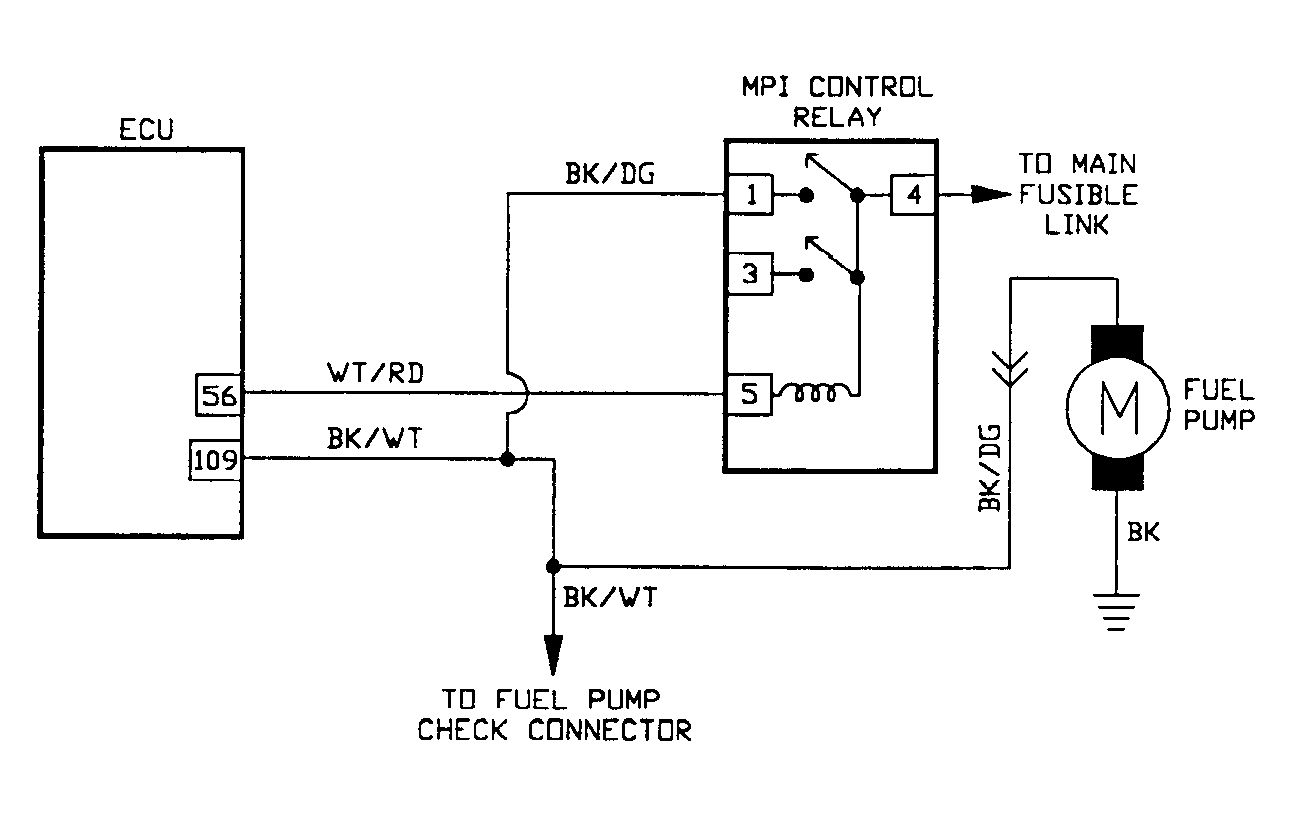

Fig 1: Driveability Test DR-12A: Circuit Diagram

G91D10705

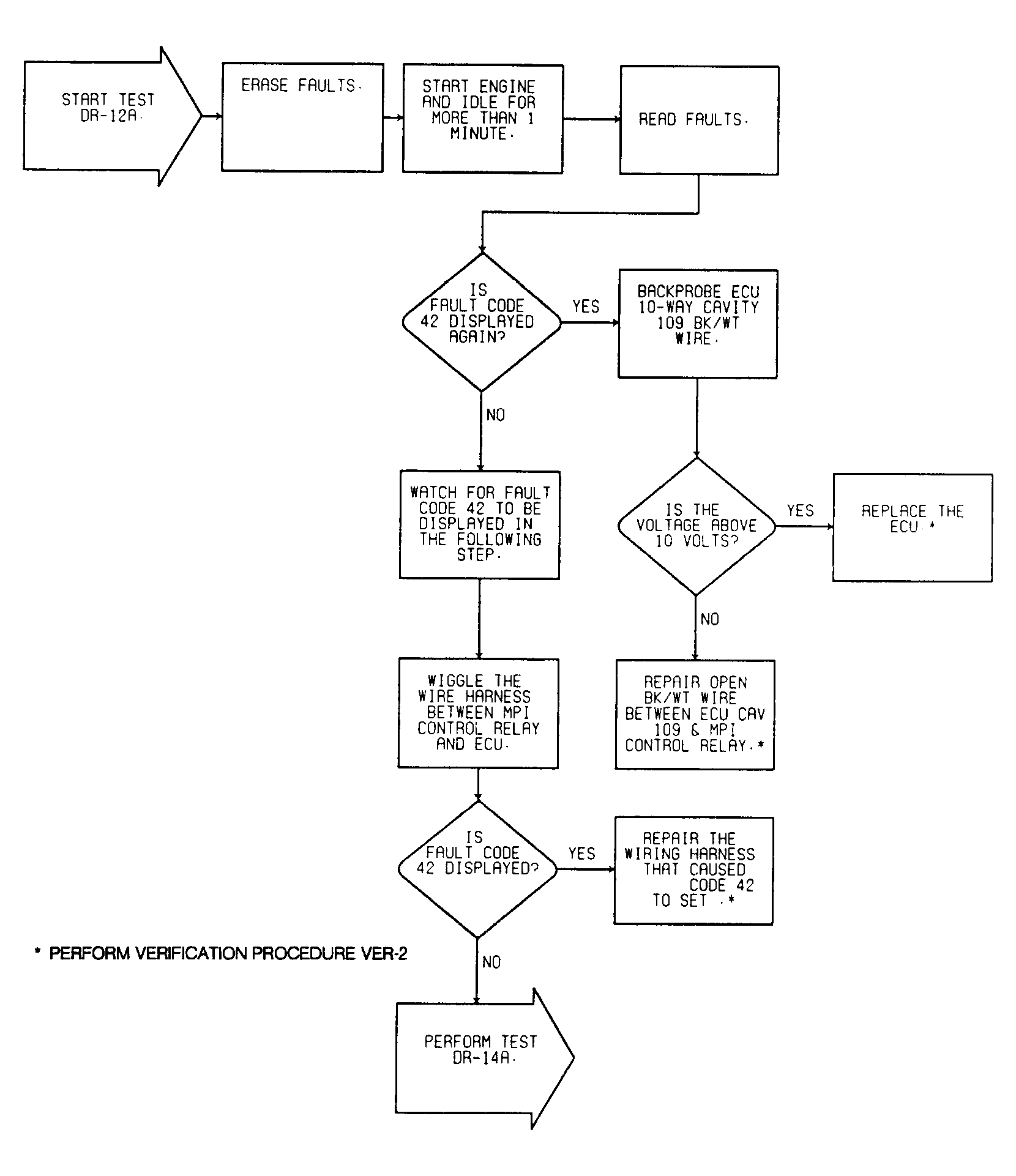

Fig 2: Driveability Test DR-12A: Diagnostic Flow Chart

G91A10744
