Plymouth
>>
1991
>>
Laser Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - 1.8L
>>
Code Charts
>>
Dr-11A: Testing Injectors
Dr-11A: Testing Injectors
Fig 1: Driveability Test DR-11A: Circuit Diagram

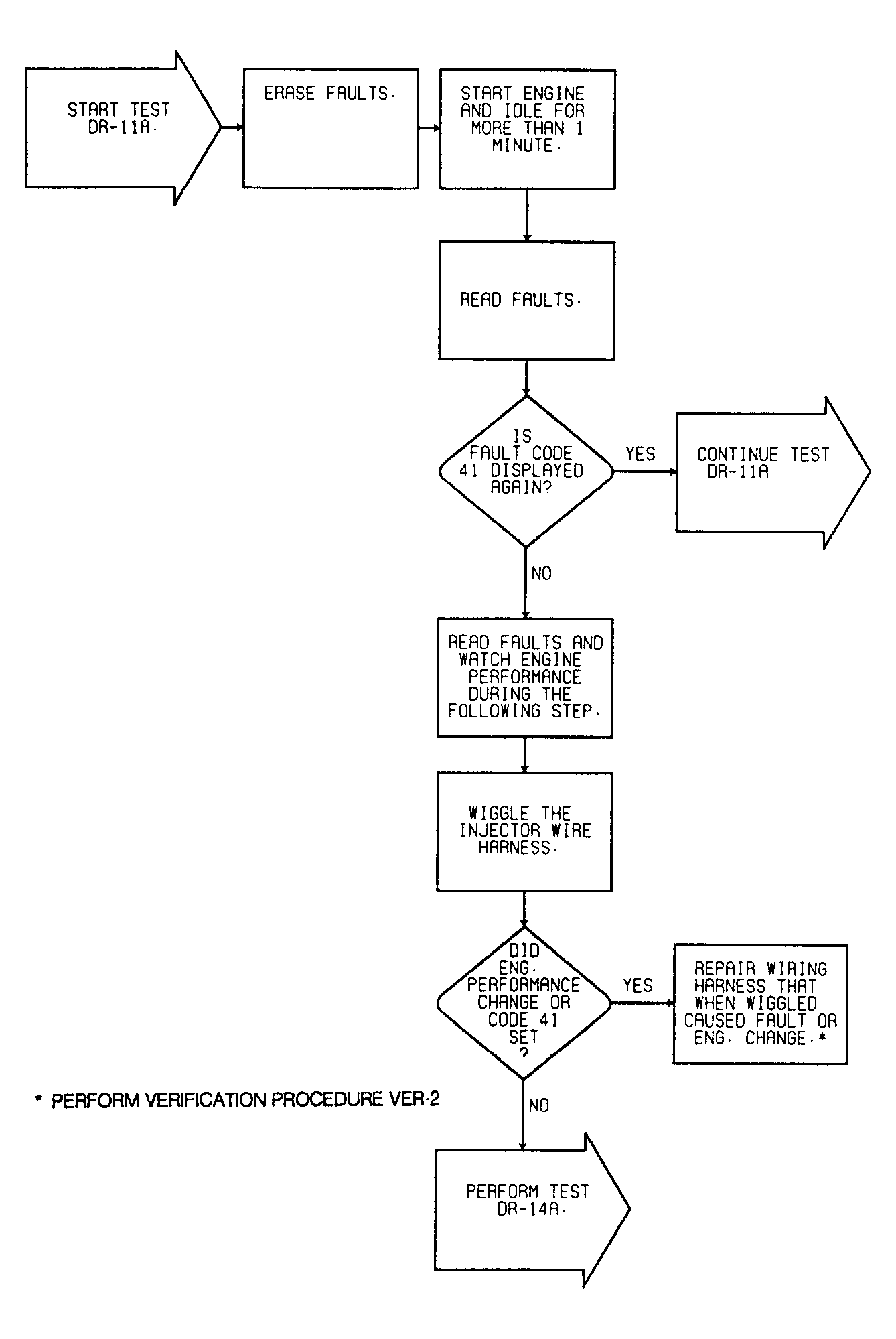

Fig 2: Driveability Test DR-11A: Diagnostic Flow Chart (1 of 5)

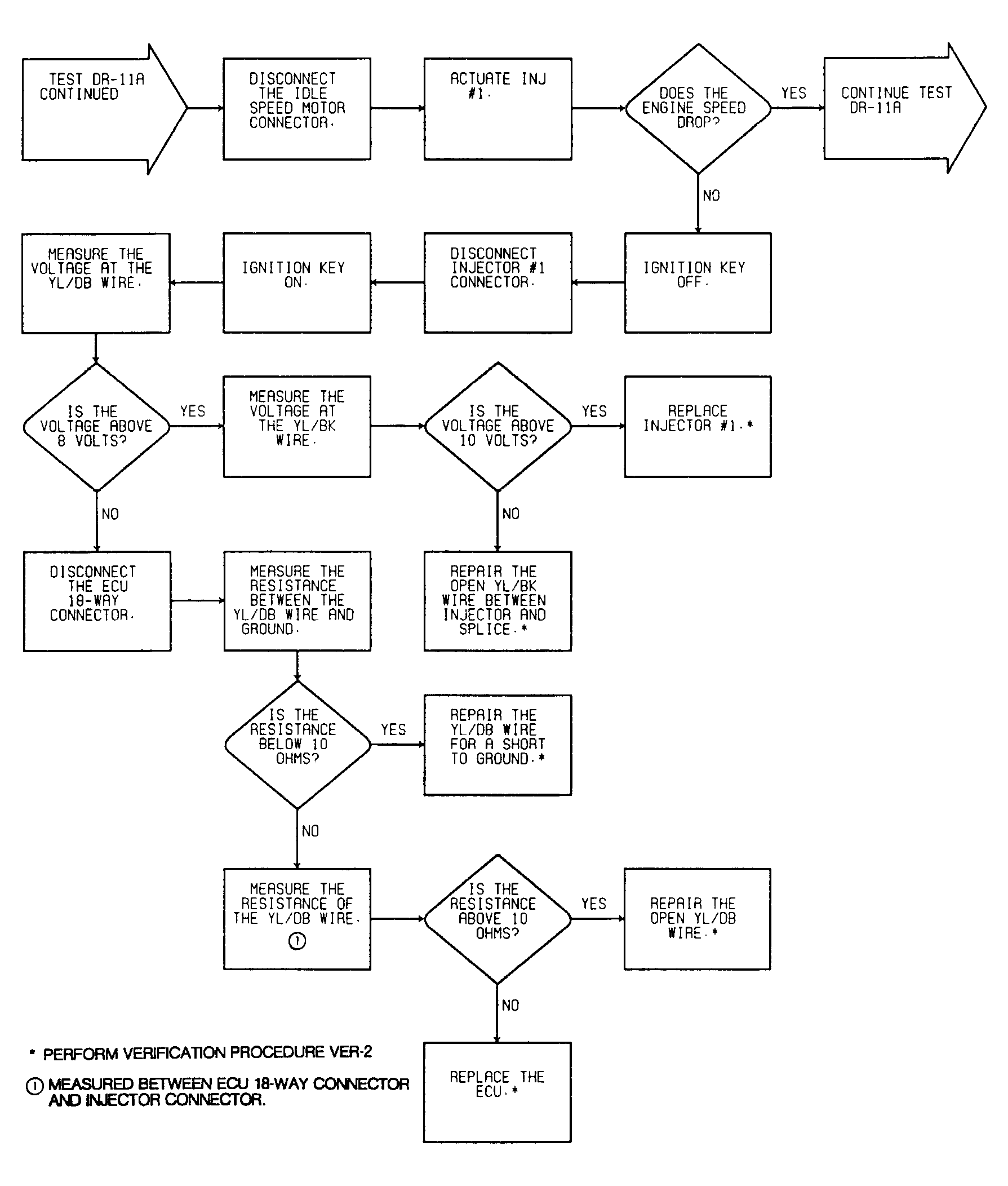

Fig 3: Driveability Test DR-11A: Diagnostic Flow Chart (2 of 5)

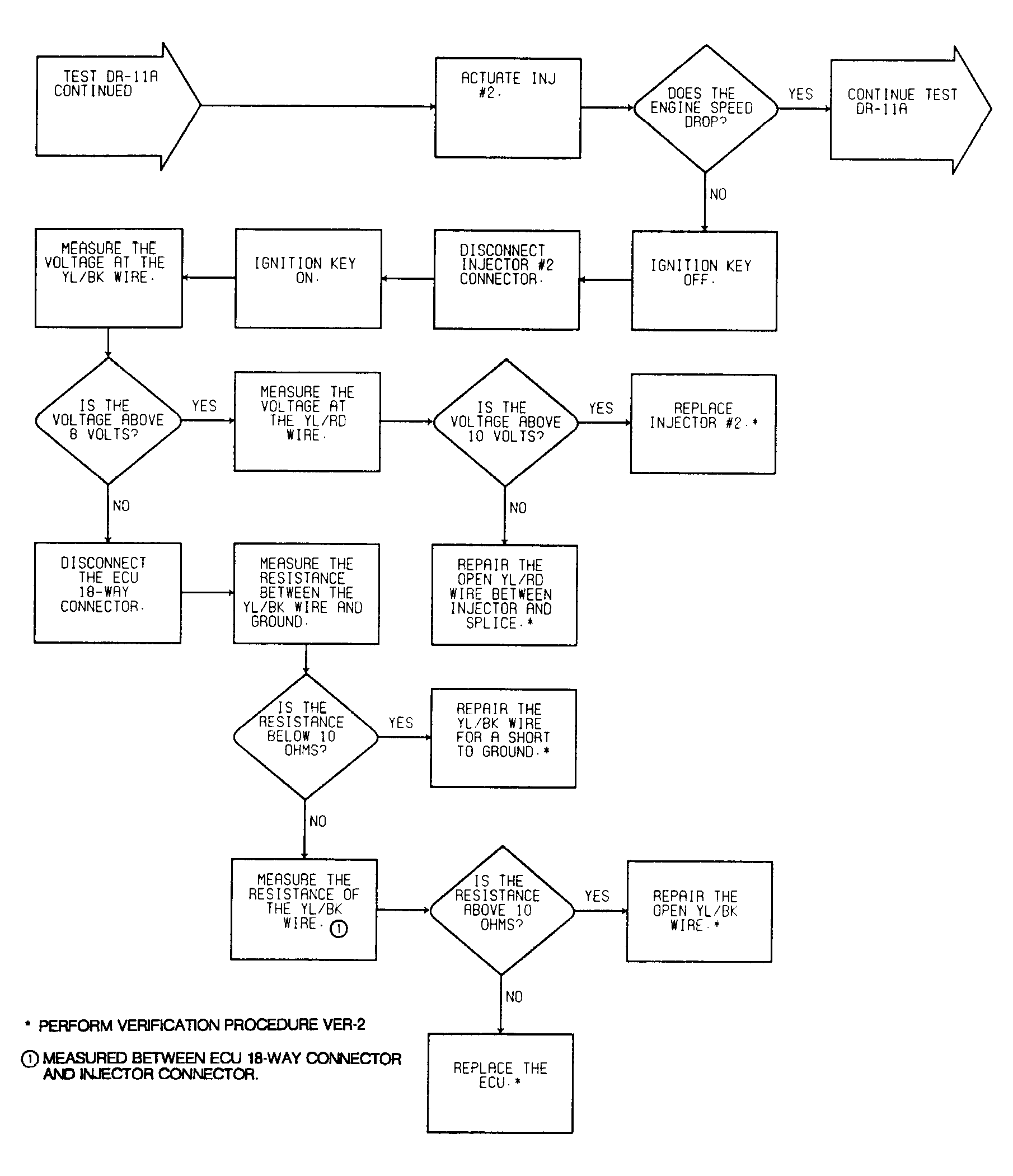

Fig 4: Driveability Test DR-11A: Diagnostic Flow Chart (3 of 5)

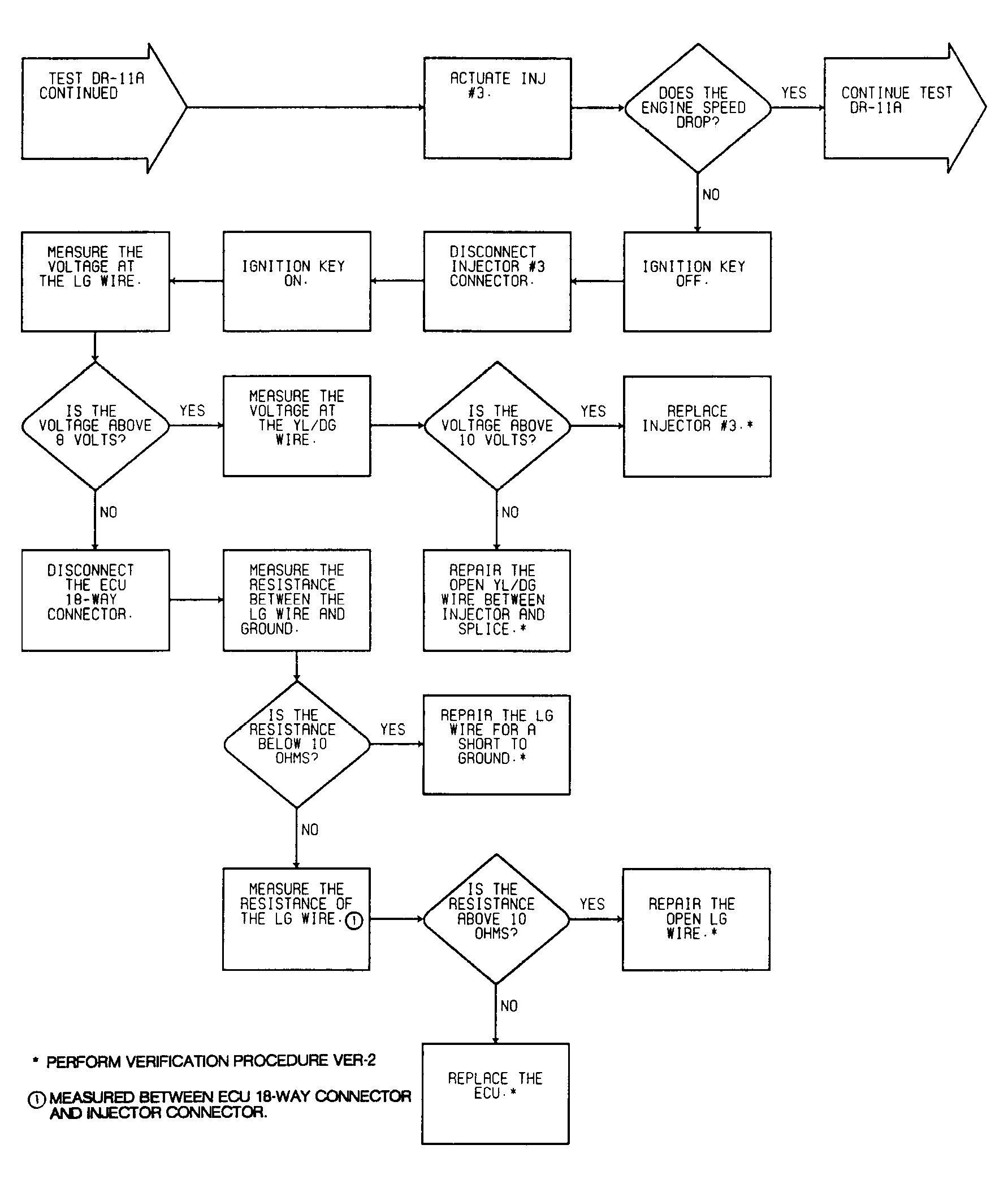

Fig 5: Driveability Test DR-11A: Diagnostic Flow Chart (4 of 5)

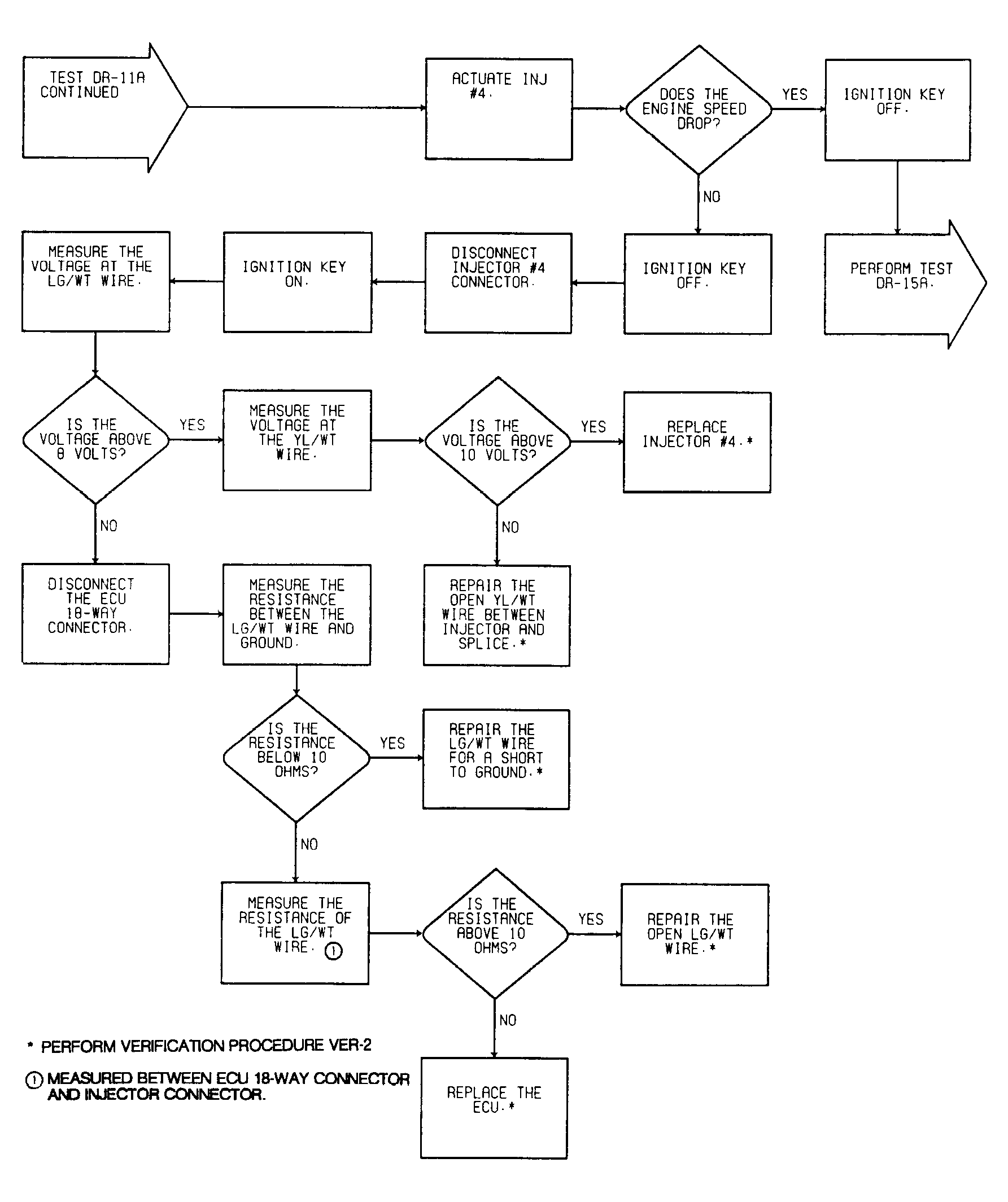

Fig 6: Driveability Test DR-11A: Diagnostic Flow Chart (5 of 5)
