Dr-15A: Testing Sensors

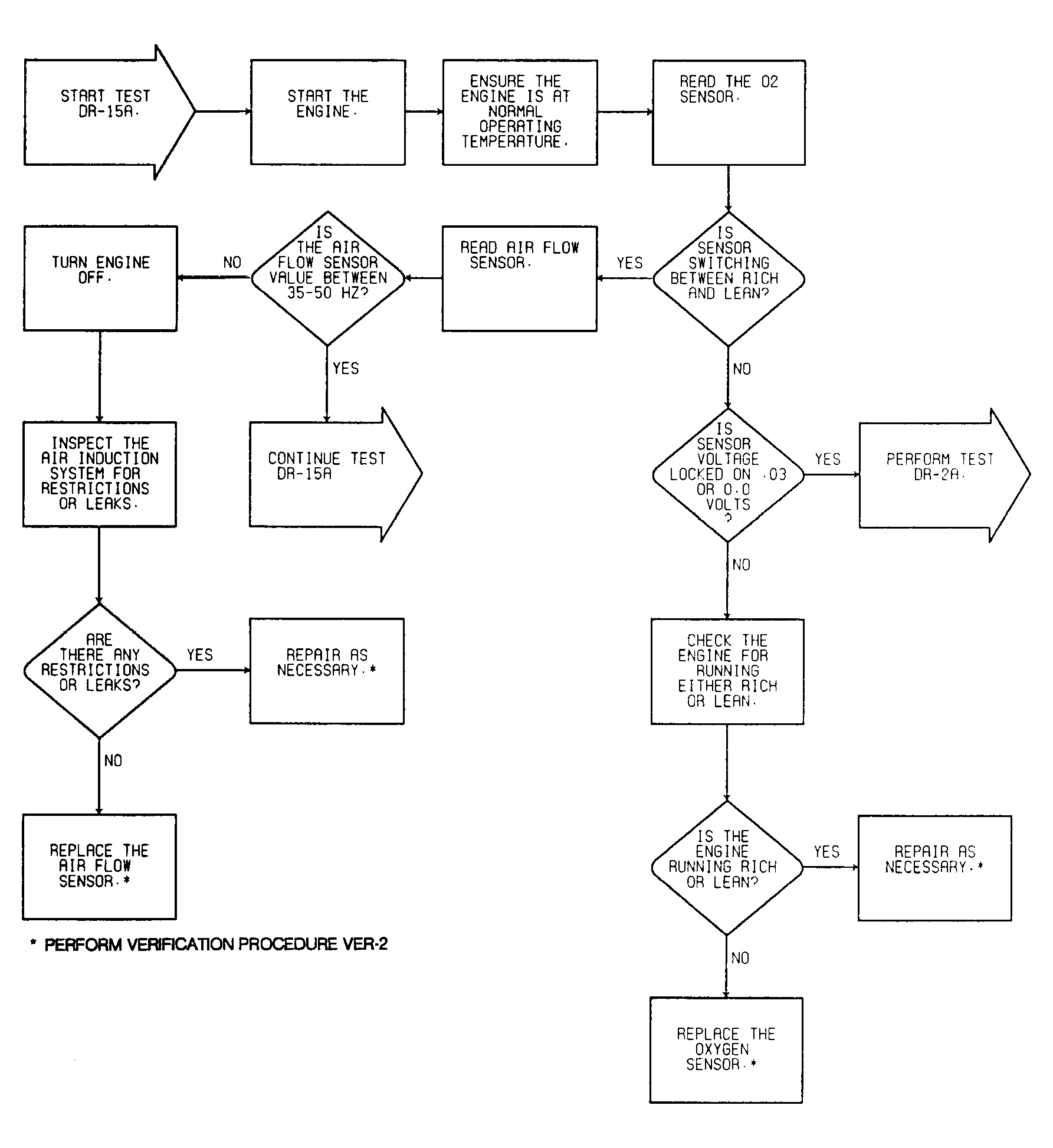

Fig 1: Driveability Test DR-15A: Diagnostic Flow Chart (1 of 3)
G91A10751
Fig 2: Driveability Test DR-15A: Diagnostic Flow Chart (2 of 3)
G91B10752

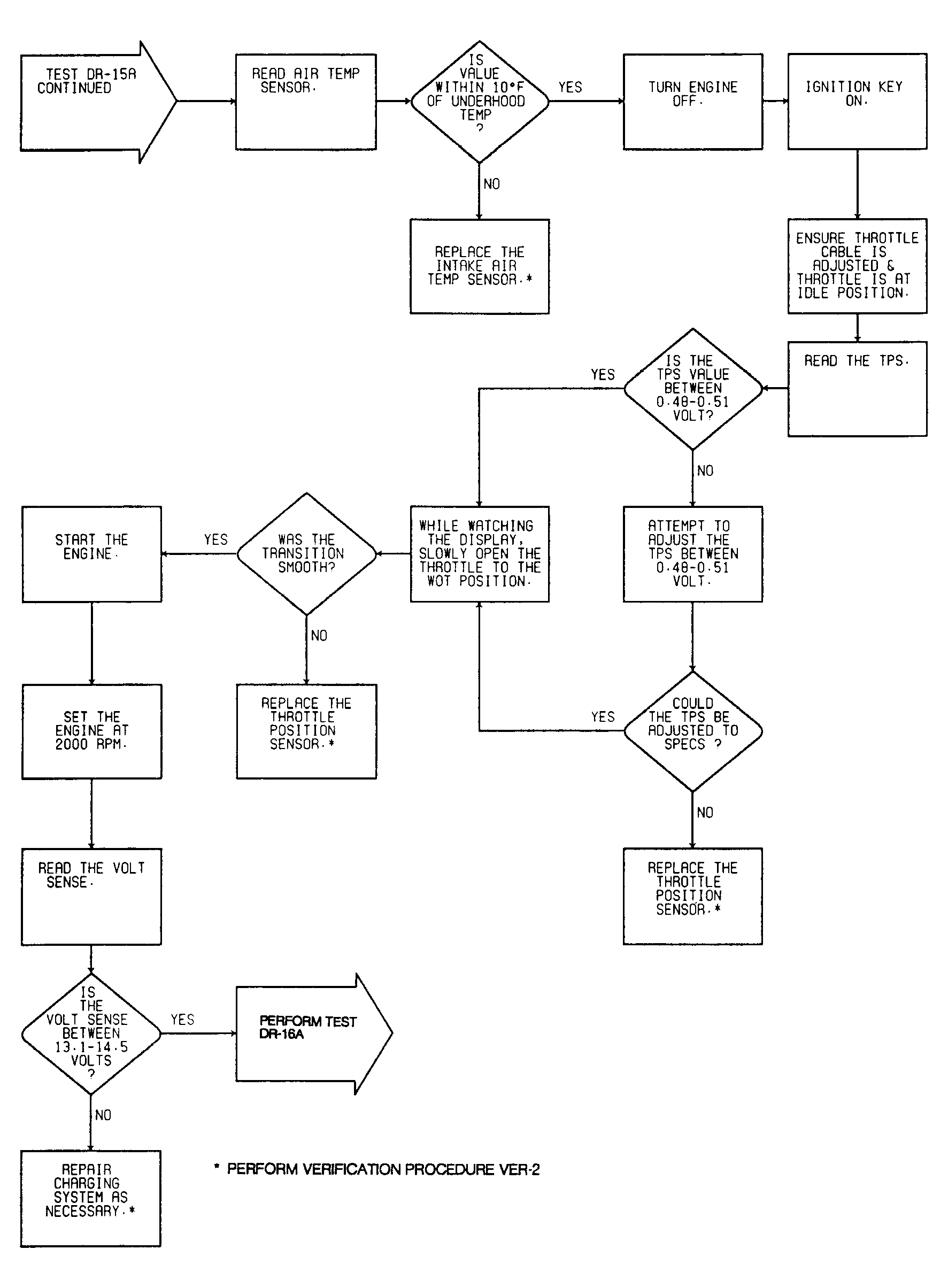

Fig 3: Driveability Test DR-15A: Diagnostic Flow Chart (3 of 3)
G91C10753
