Dr-14A: Testing Switches

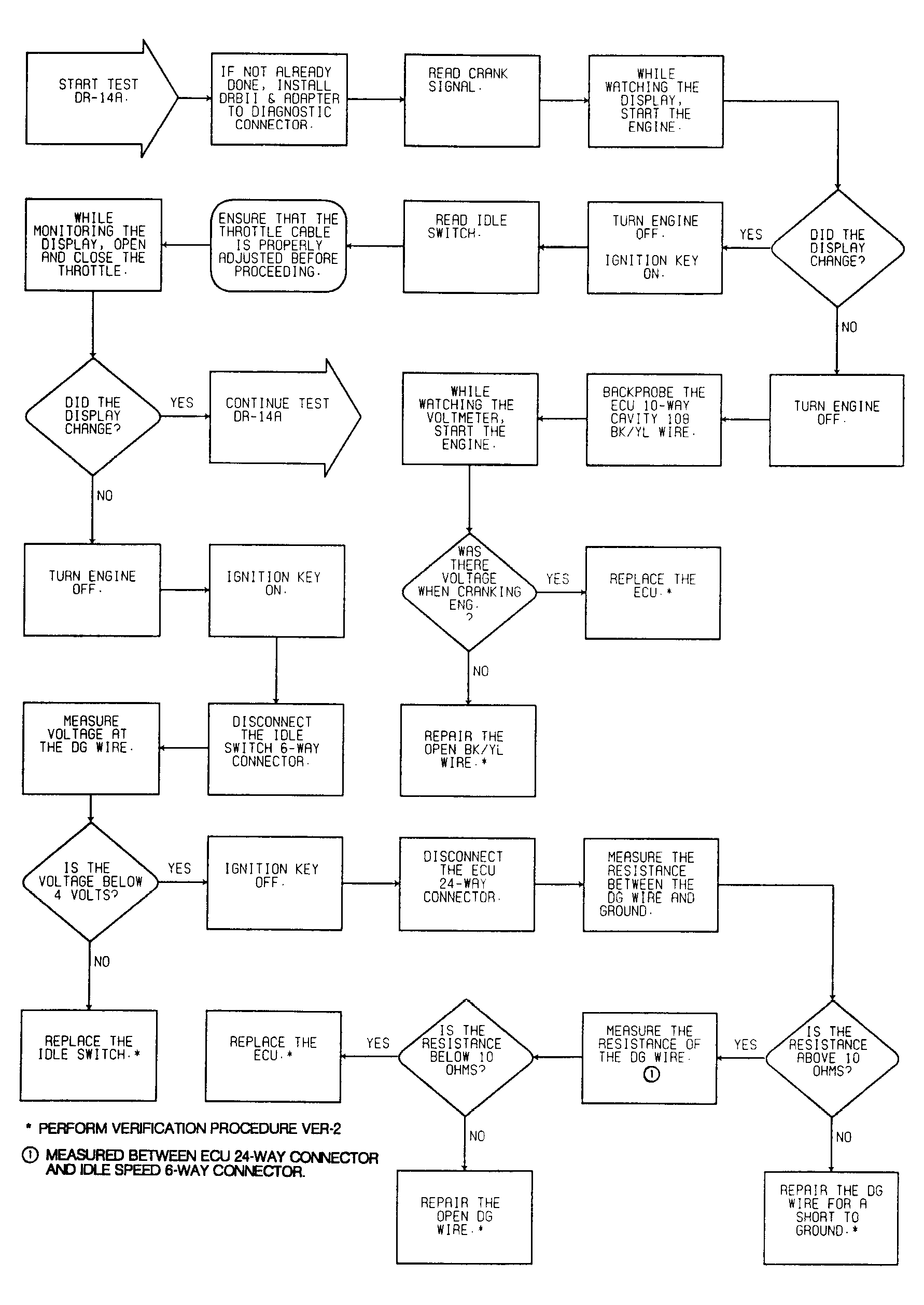

Fig 1: Driveability Test DR-14A: Diagnostic Flow Chart (1 of 4)
G91D10747

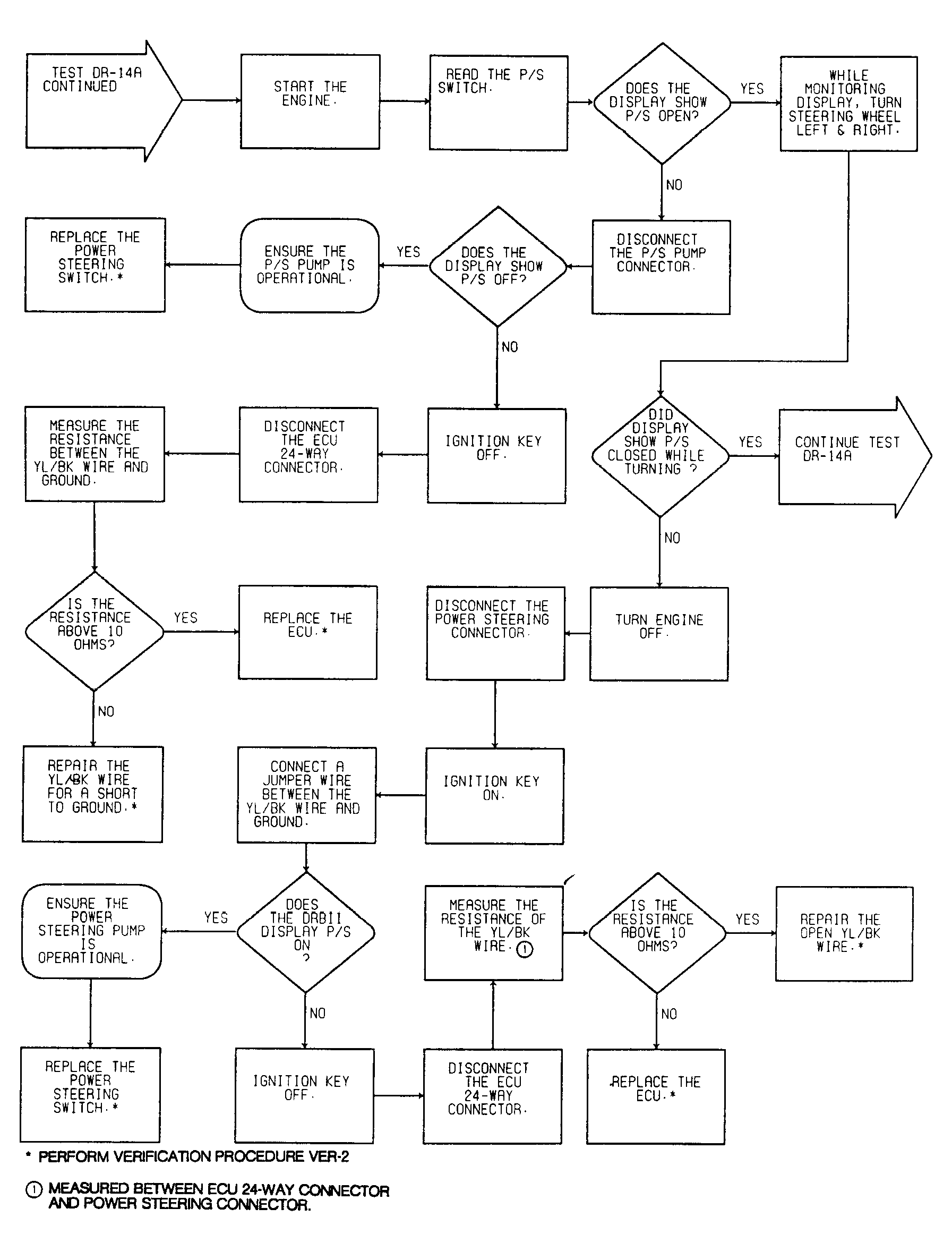

Fig 2: Driveability Test DR-14A: Diagnostic Flow Chart (2 of 4)
G91E10748

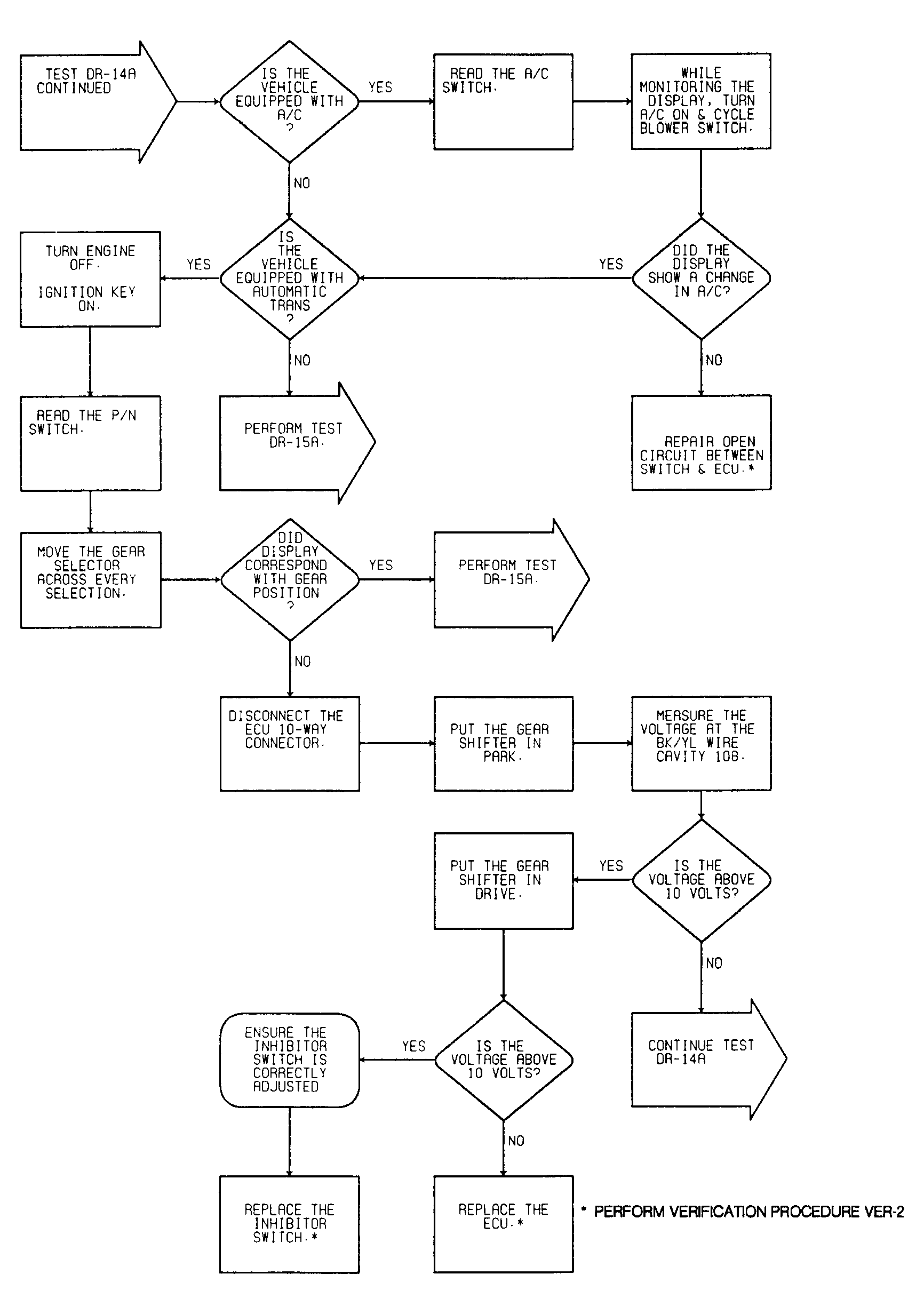

Fig 3: Driveability Test DR-14A: Diagnostic Flow Chart (3 of 4)
G91F10749

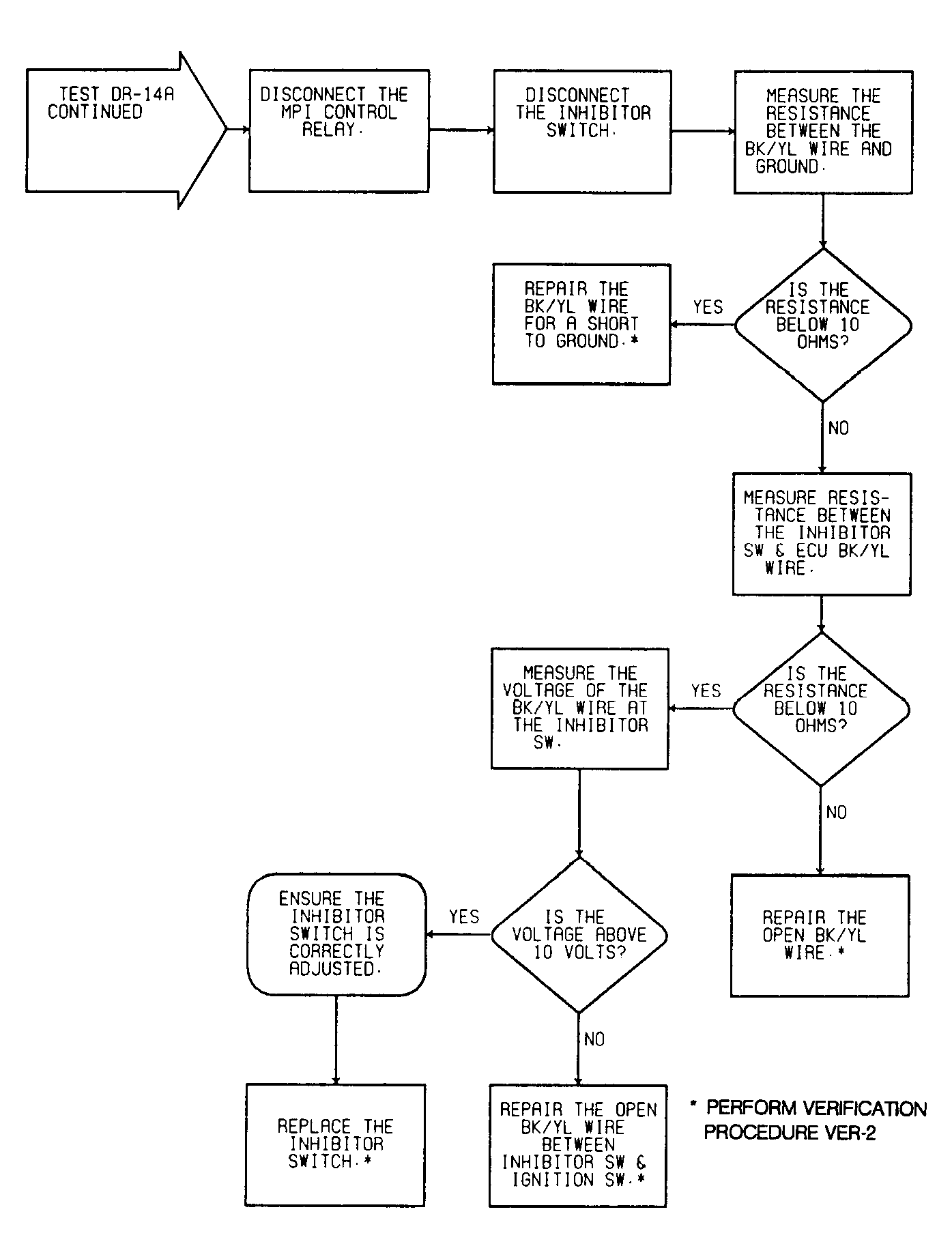

Fig 4: Driveability Test DR-14A: Diagnostic Flow Chart (4 of 4)
G91J10750
