Wiring Diagrams

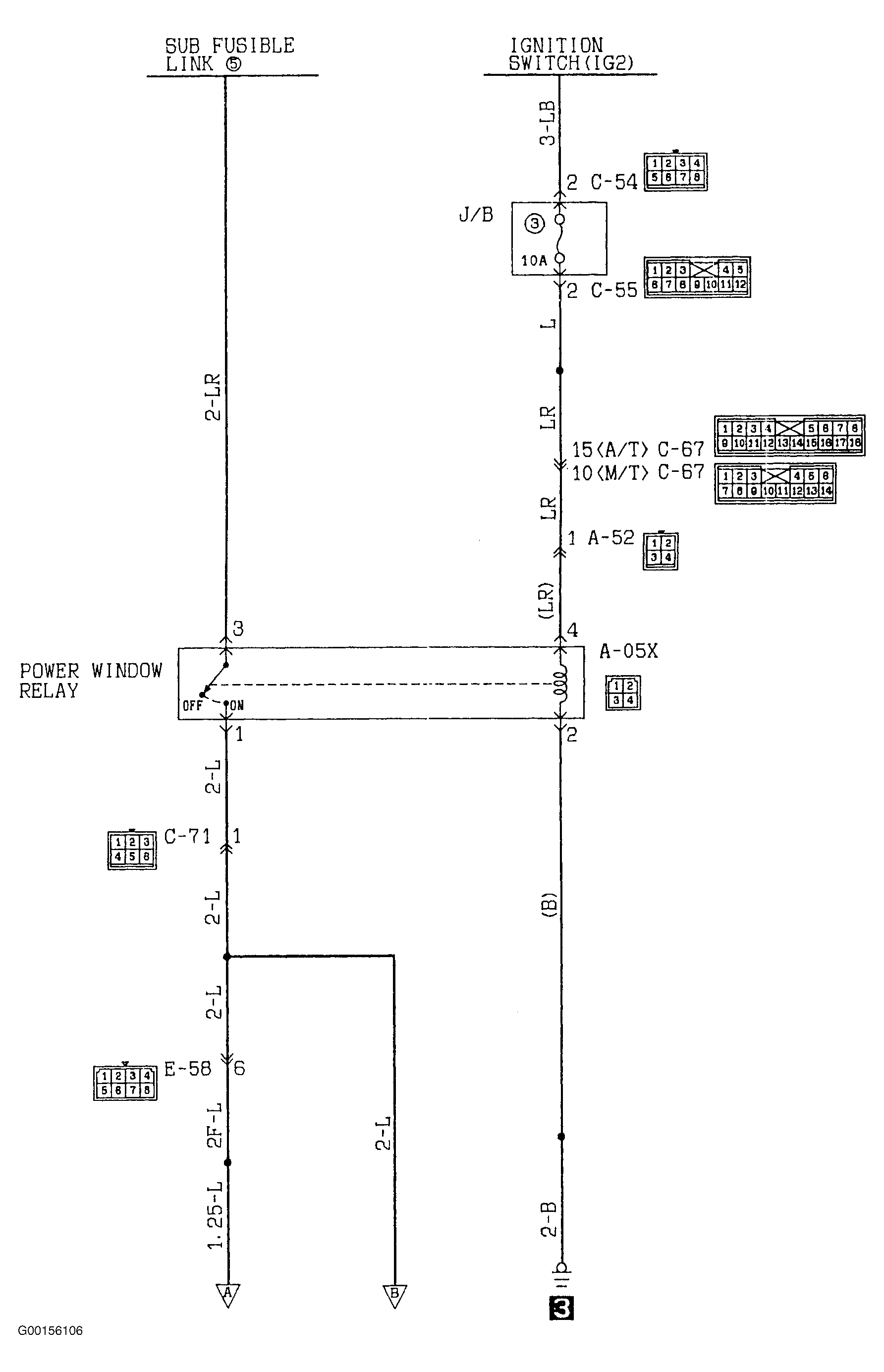

Fig 1: Power Windows Circuit (Eclipse, Laser & Talon - 1 Of 2)
Courtesy of CHRYSLER CORP.
Fig 2: Power Windows Circuit (Eclipse, Laser & Talon - 2 Of 2)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
