Dr-4: Checking Intake Air Temp Sensor

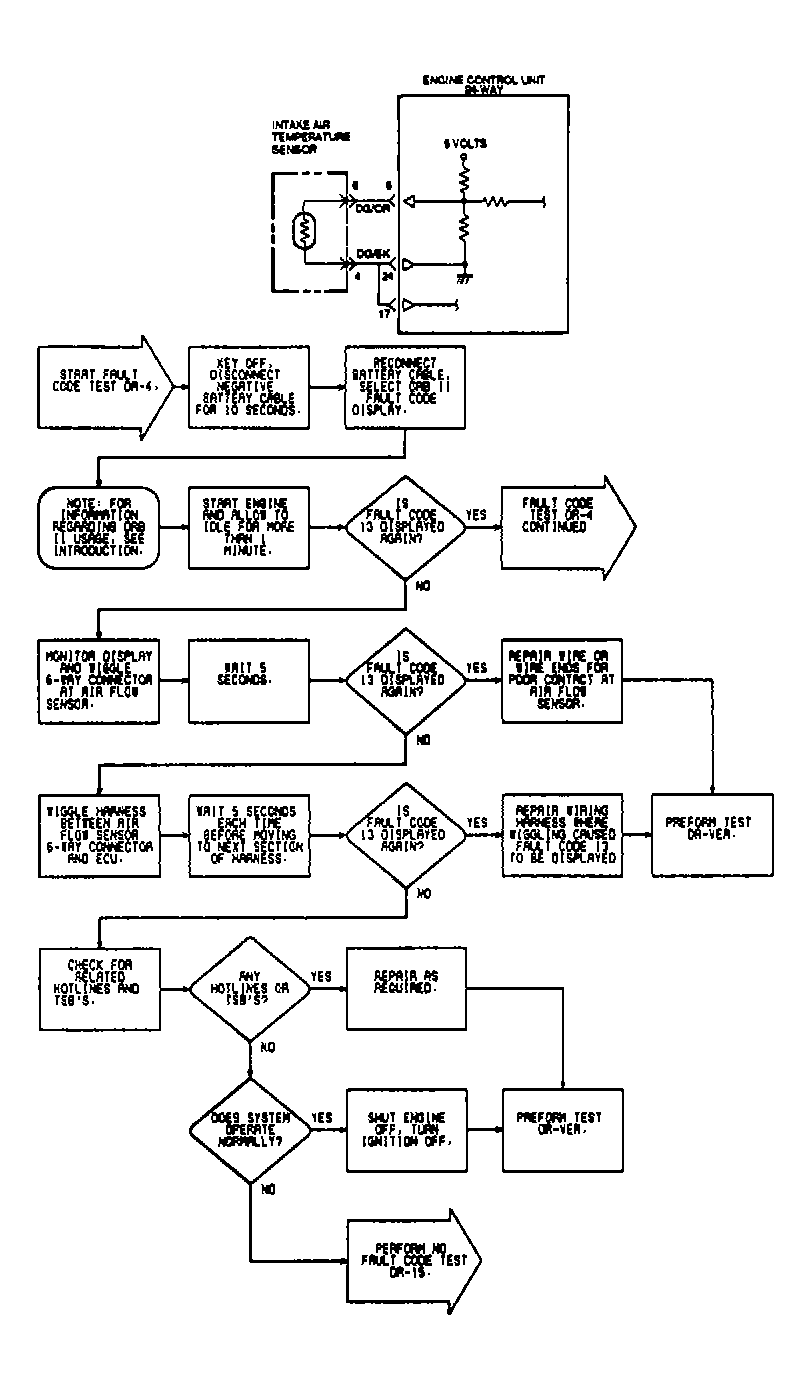

Fig 1: DR-4 Flow Chart & Circuit Diagram (1 of 2)

G90F12612

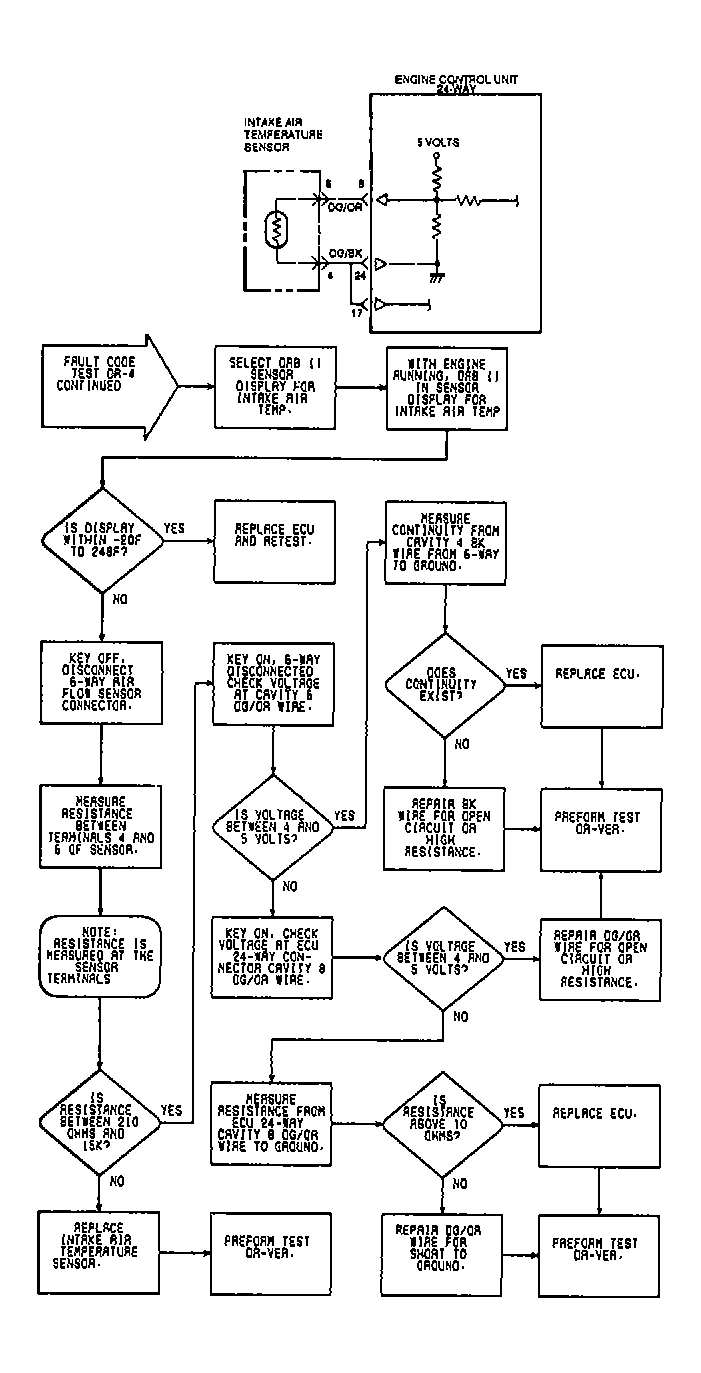

Fig 2: DR-4 Flow Chart & Circuit Diagram (2 of 2)

G90G12613
