Plymouth
>>
1990
>>
Laser Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - 1.8L
>>
DRIVEABILITY Tests
>>
Dr-13: Checking Fuel Pump Control Circuit
Dr-13: Checking Fuel Pump Control Circuit

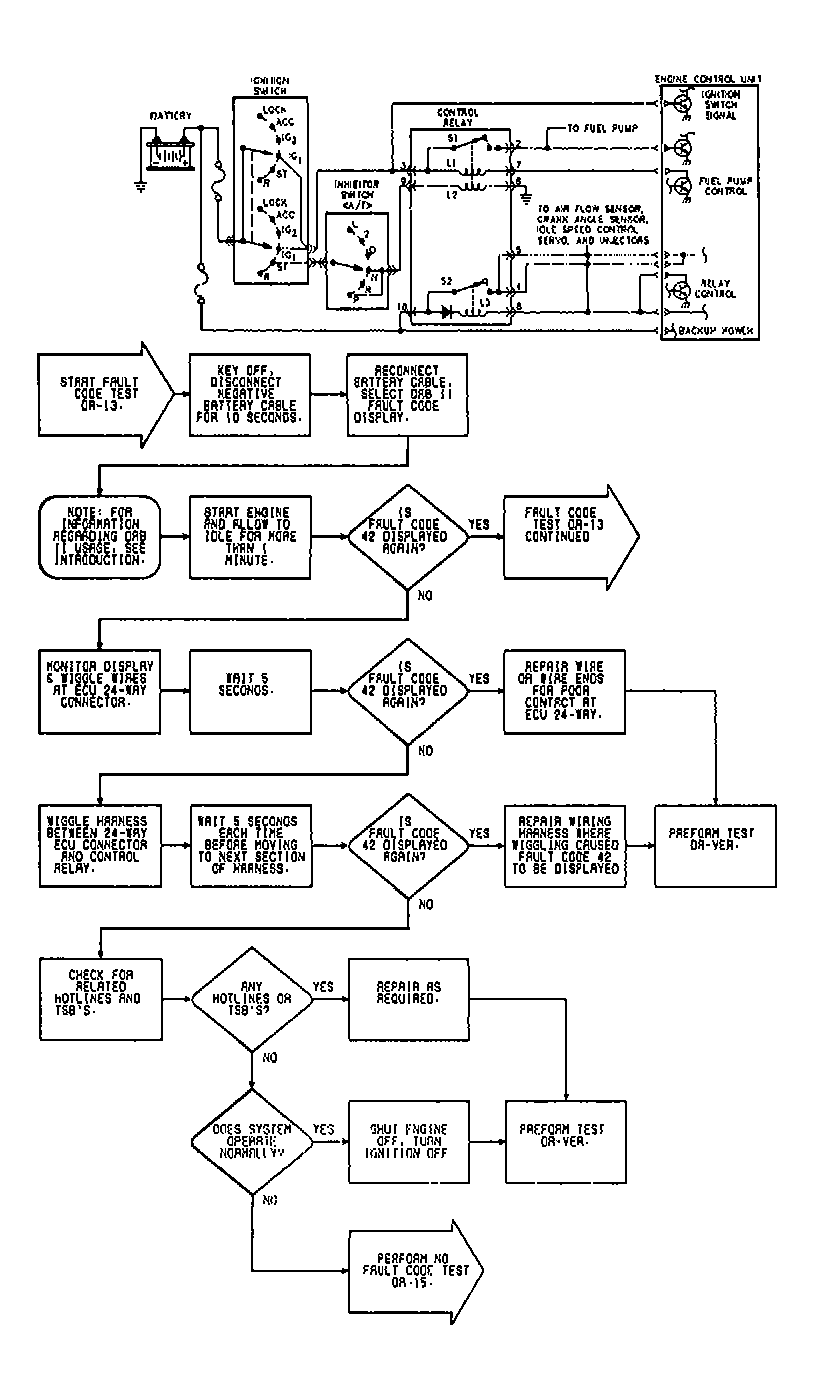

Fig 1: DR-13 Flow Chart & Circuit Diagram (1 of 2)

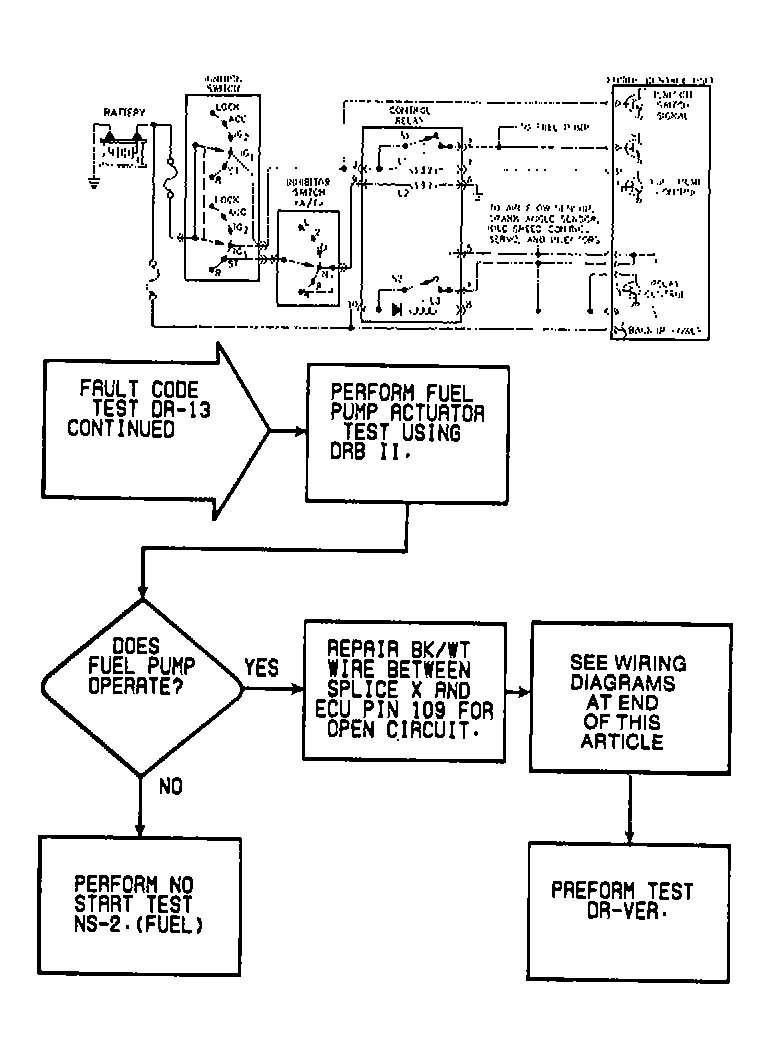

Fig 2: DR-13 Flow Chart & Circuit Diagram (2 of 2)
