2.2L & 2.5L Firing Order & Distributor Rotation

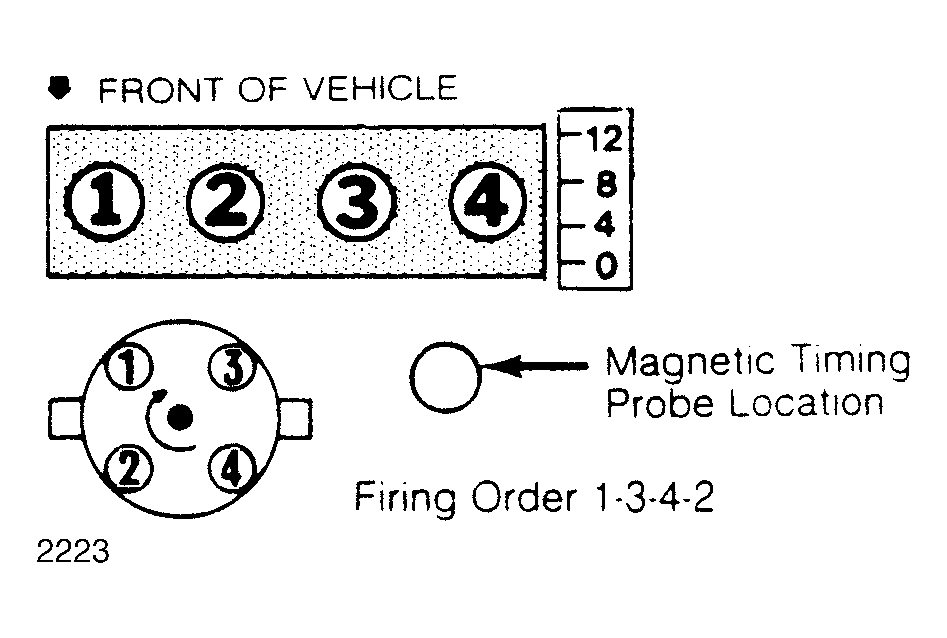

Fig 1: 2.2L & 2.5L Firing Order & Distributor Rotation

G2223
