Dr-7: Code 21 "O2 Sensor Signal" (Non-Turbo)
Dr-7: Code 21 "O2 Sensor Signal" (Non-Turbo)

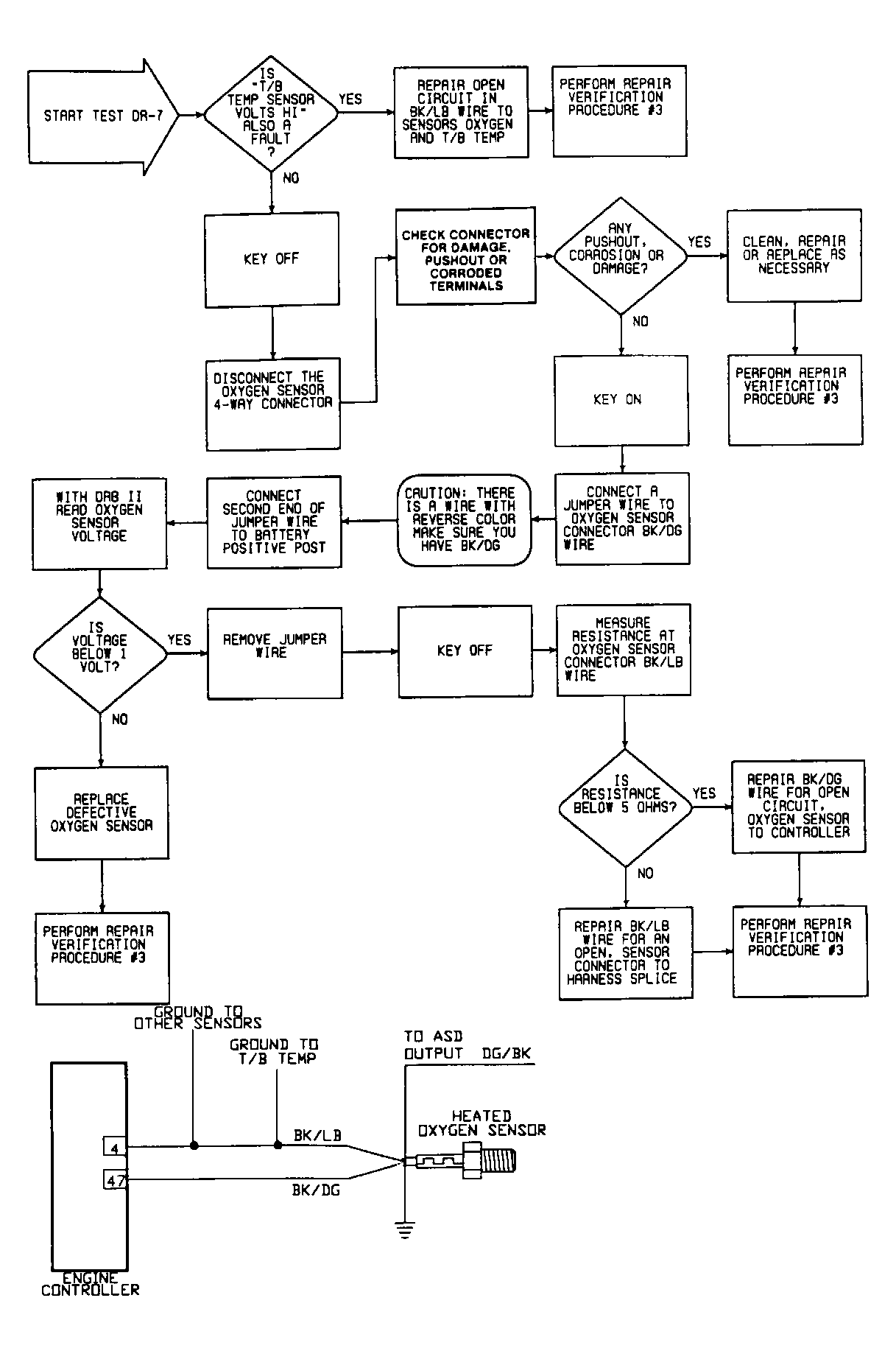

Fig 1: DR-7: Circuit Diagram & Flow Chart
