Steering Column: Overhaul

NOTE: Overhaul procedures not supplied. For exploded view of steering columns, see Fig 1 through Fig 5.
Fig 1: Exploded View of Upper Components Of Tilt Column (W/Column Shift - All Models)
G90B13558Courtesy of CHRYSLER MOTORS.

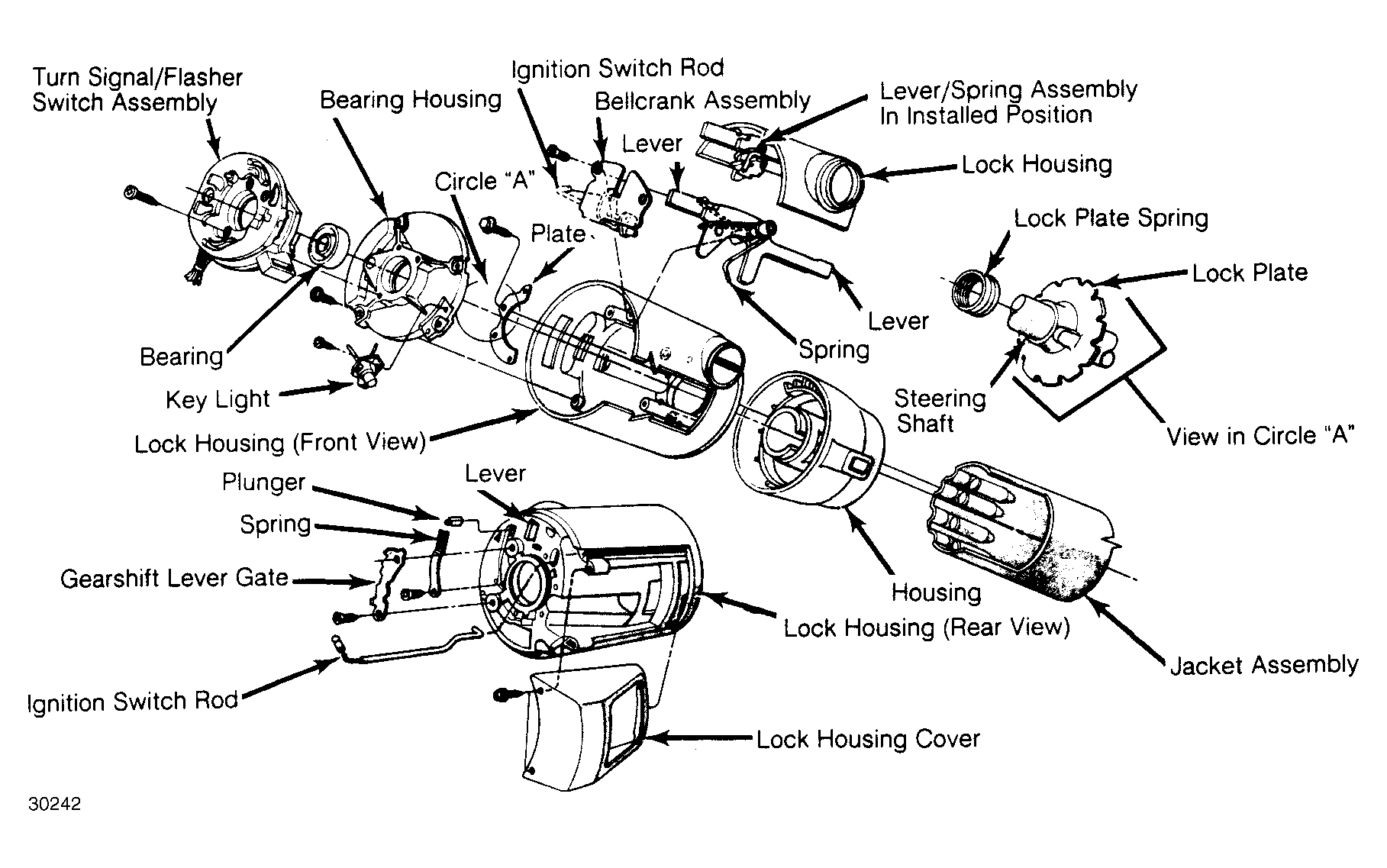

Fig 2: Exploded View of Upper Components Of Non-Tilt Column (W/Column Shift - All Models)
G30242Courtesy of CHRYSLER MOTORS.

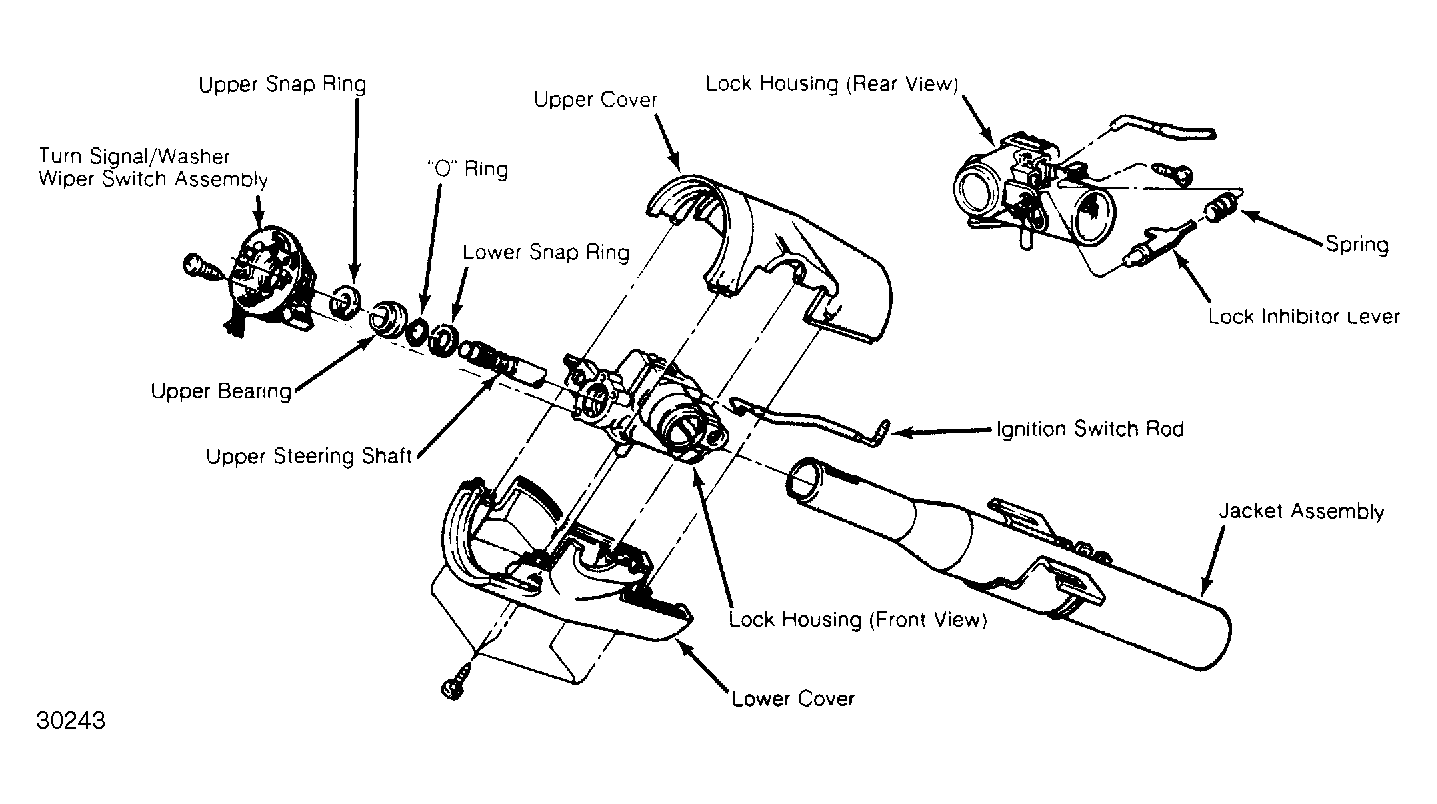

Fig 3: Exploded View of Steering Column - W/Floor Shift (Caravan, Town & Country, & Voyager)
G30243Courtesy of CHRYSLER MOTORS.

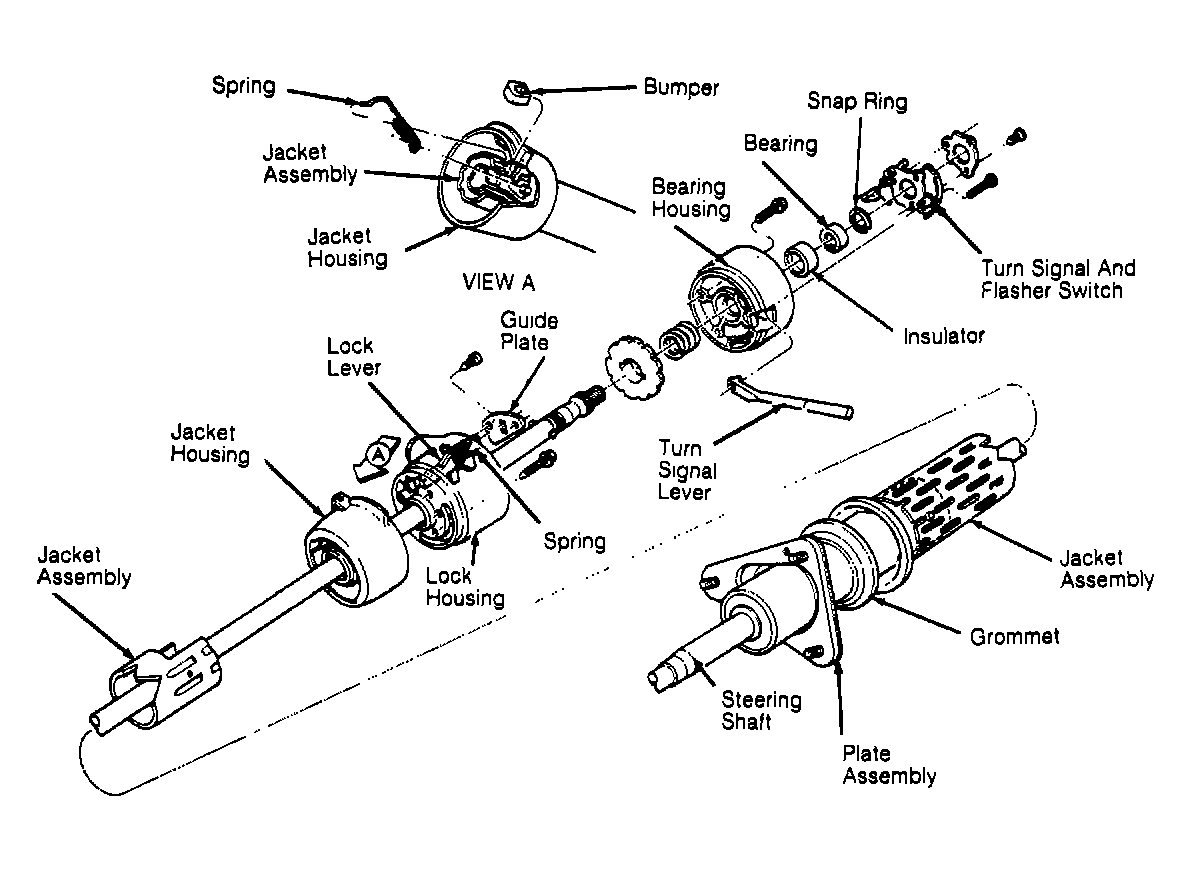

Fig 4: Exploded View of Steering Column - W/Column Shift ("B" Series, Dakota, "D" & "W" Series)
G30244Courtesy of CHRYSLER MOTORS.
Fig 5: Exploded View of Steering Column - W/O Column Shift ("B" Series, Dakota, "D" & "W" Series)
G90C13559Courtesy of CHRYSLER MOTORS.
