Engine Controls - Tests W/Codes - Body Control Computer
>>
Trouble Shooting Charts
>>
Test 72A - Testing For Blank DRB-II Message Screen
Test 72A - Testing For Blank DRB-II Message Screen

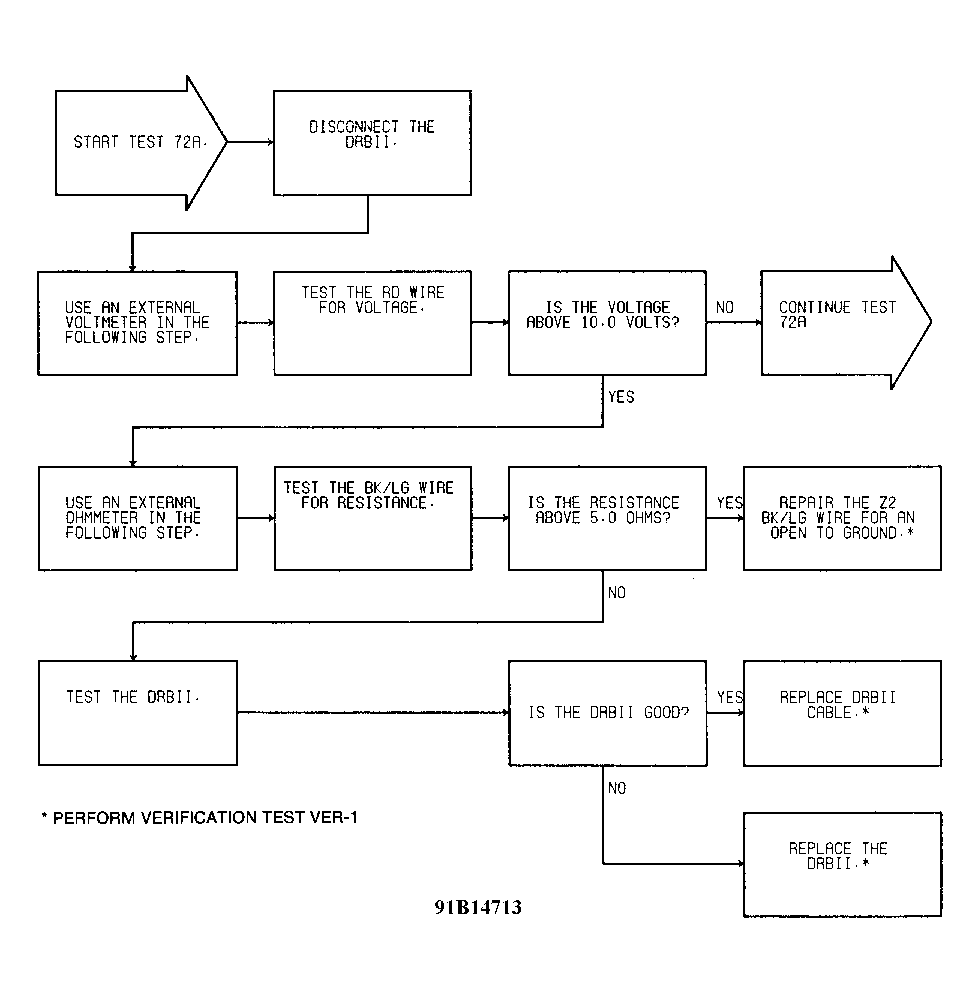

Fig 1: Test 72A (1 of 2) - Testing For Blank DRB-II Message Screen
Fig 2: Test 72A (2 of 2) - Testing For Blank DRB-II Message Screen
