Test 47A - Repairing Fuel Level Problem

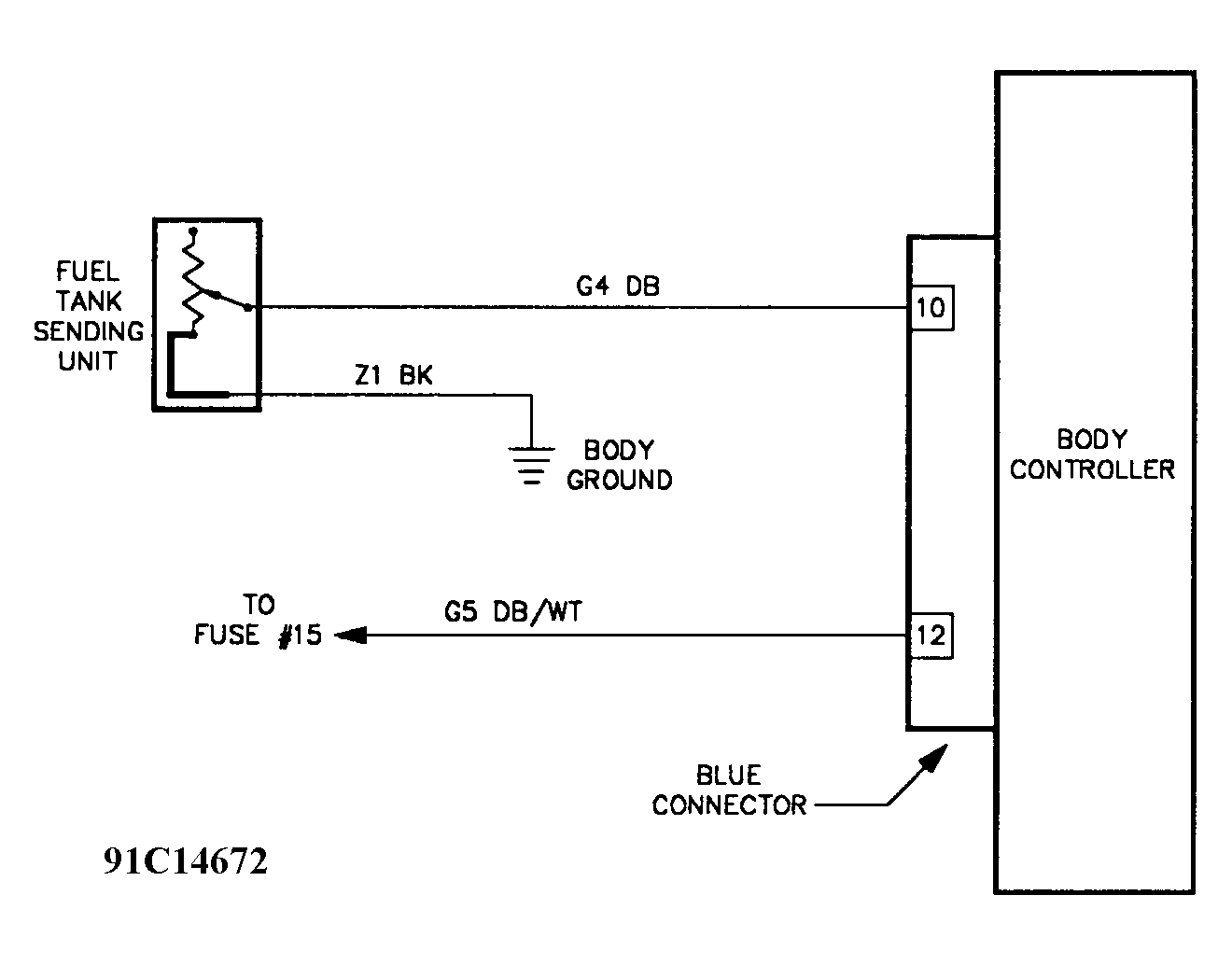

Fig 1: Test 47A Schematic - Repairing Fuel Level Problem

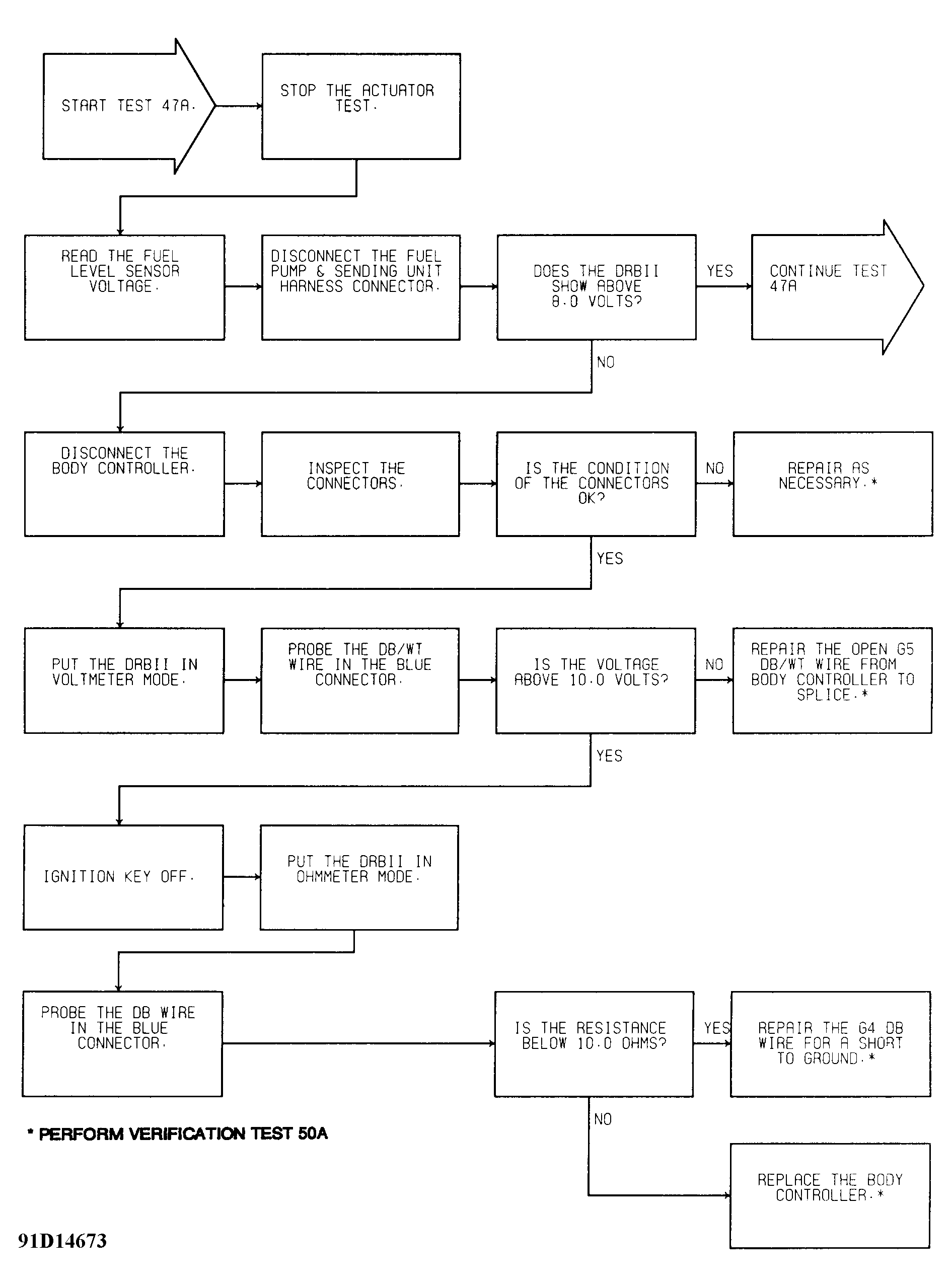

Fig 2: Test 47A Flow Chart (1 of 2) - Repairing Fuel Level Problem

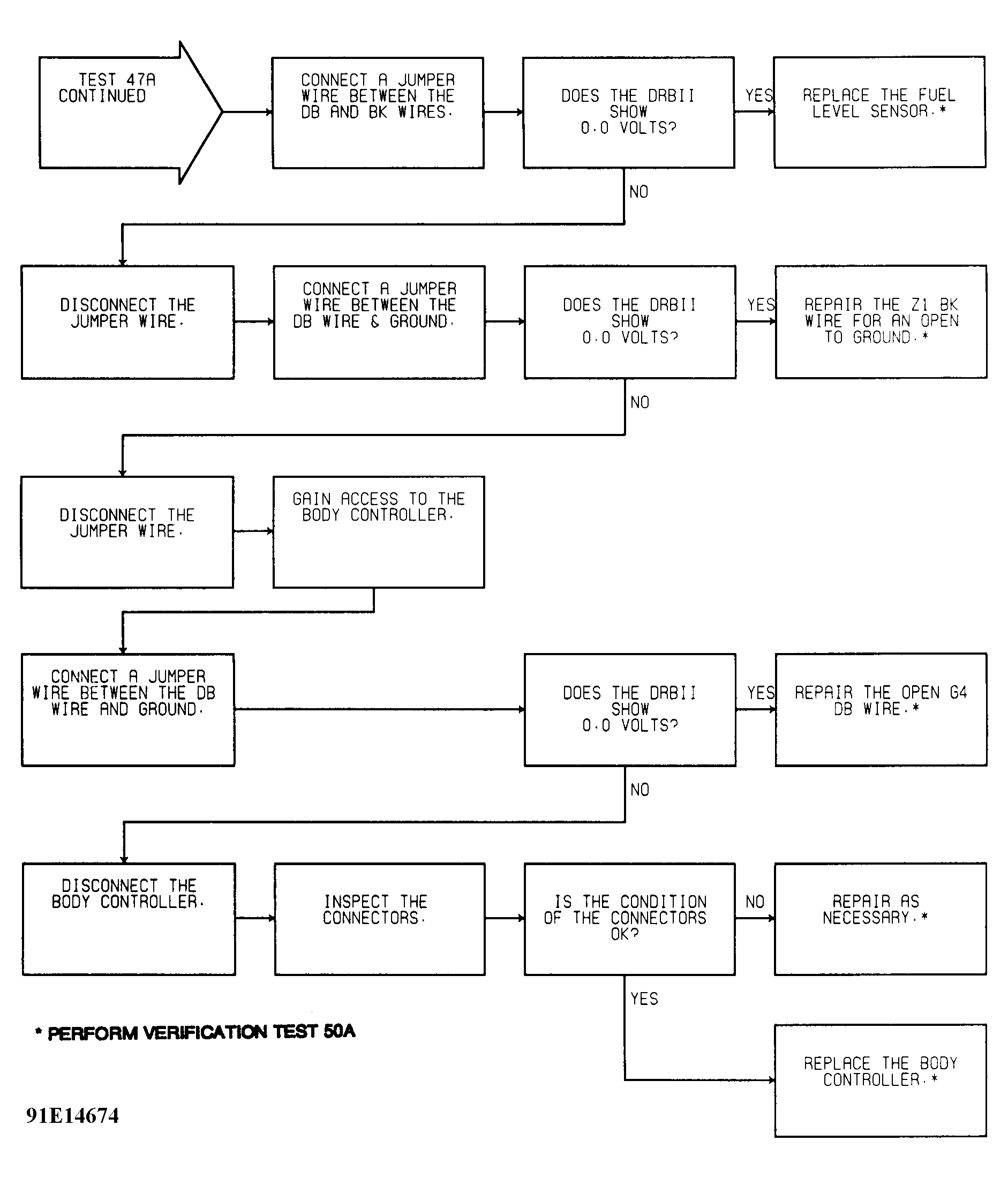

Fig 3: Test 47A Flow Chart (2 of 2) - Repairing Fuel Level Problem
