Power Window Relay

  1. Remove power window relay from relay box. See Fig 1 .
  2. Connect battery power source to terminal 2. Check circuit between terminals with terminal 4 grounded.

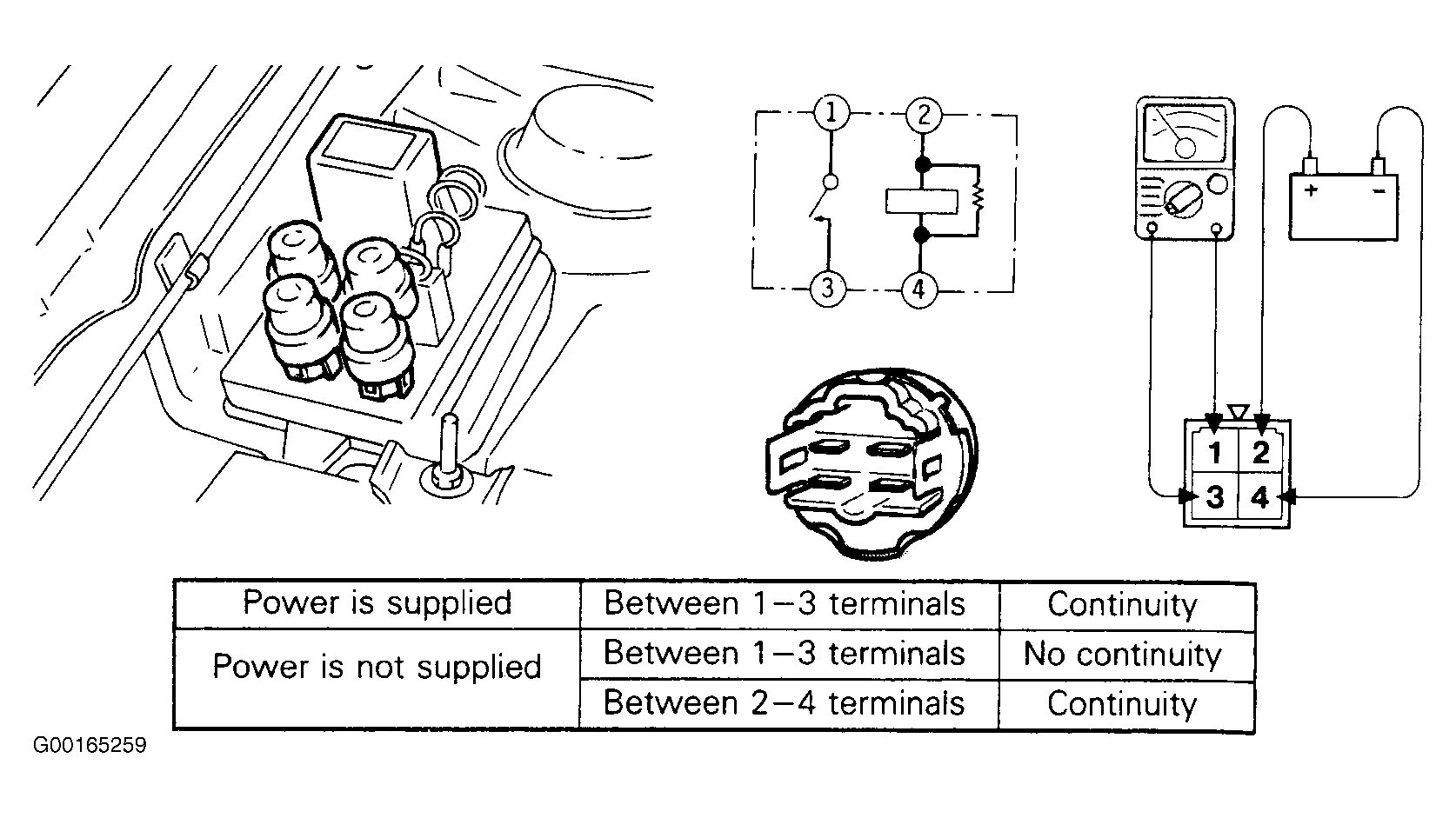

Fig 1: Testing Power Window Relay
G00165259Courtesy of CHRYSLER CORP.
