VEHICLE IDENTIFICATION NUMBER CODE CHARTS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 26-23-89, 26-59-89, Date of Issue: October 2, 1989

1990 VEHICLE IDENTIFICATION NUMBER

Model All 1990 Chrysler/Jeep/Eagle Domestic & Import Vehicles

Group General

Bulletin No. 26-23-89 & 26-59-89

Date October 2, 1989

SERVICE INFORMATION

This bulletin contains information explaining the 17 digit Vehicle Identification Number for all 1990 Chrysler Motors North American vehicles, Mitsubishi Import vehicles, Maserati Import vehicles, and Diamond Star Motors vehicles.

The Vehicle Identification Number plate is located on the top left side of the instrument panel and is visible through the windshield.

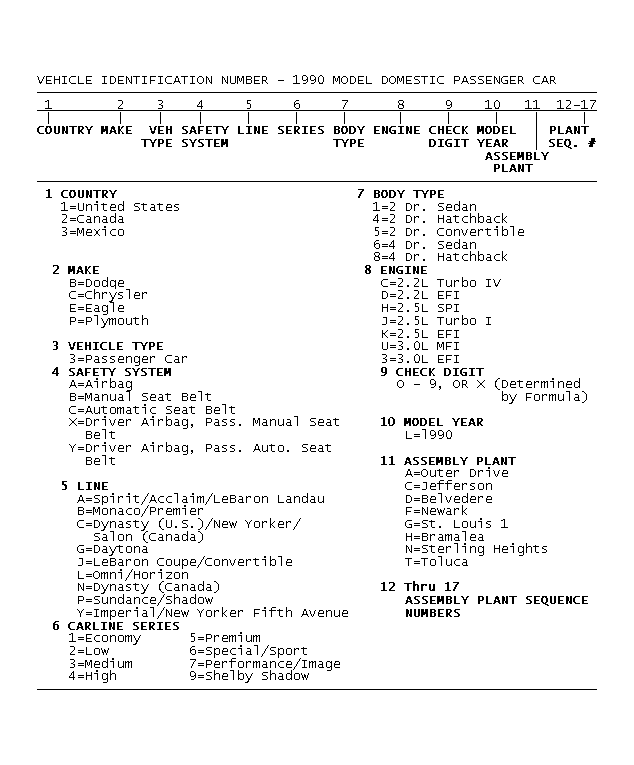

Fig 1: VEHICLE IDENTIFICATION NUMBER - 1990 MODEL DOMESTIC PASSENGER CAR

Fig 2: VEHICLE IDENTIFICATION NUMBER - 1990 MODEL EAGLE PREMIER

Fig 3: VEHICLE IDENTIFICATION NUMBER - 1990 MODEL JEEP

Fig 4: VEHICLE IDENTIFICATION NUMBER - 1990 MODEL CHRYSLER'S TC

Fig 5: VEHICLE IDENTIFICATION NUMBER - 1990 MODEL DIAMOND STAR VEHICLES

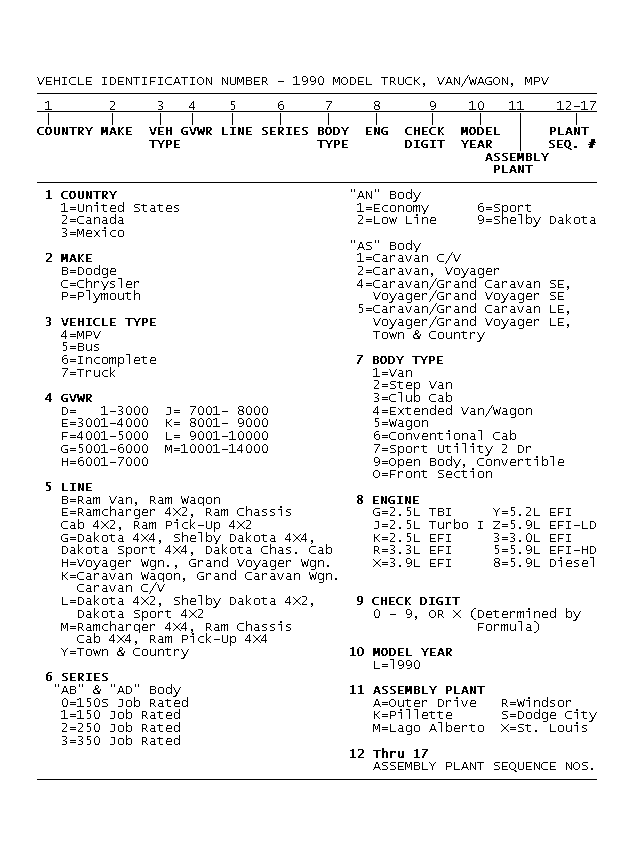

Fig 6: VEHICLE IDENTIFICATION NUMBER - 1990 MODEL TRUCK, VAN/WAGON, MPV

Fig 7: VEHICLE IDENTIFICATION NUMBER - 1990 MMC IMPORT VEHICLES
