Test 5: Checking Eng Controller For CCD Bus Communication

Fig 1: Test 5 Circuit Diagram
G90G16416

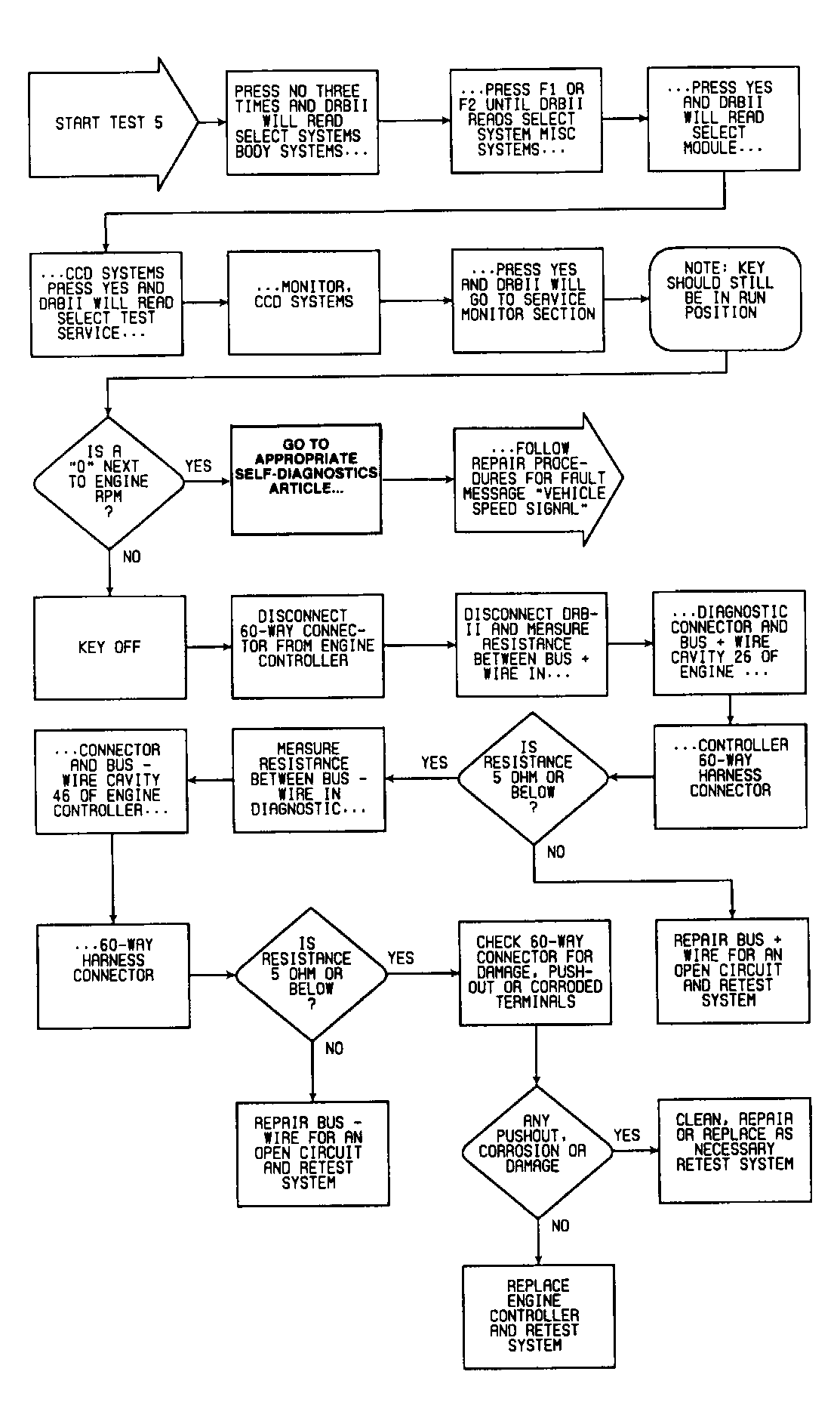

Fig 2: Test 5 Flow Chart
G90H11533
