Service Indicator & Warning Lights: Notes

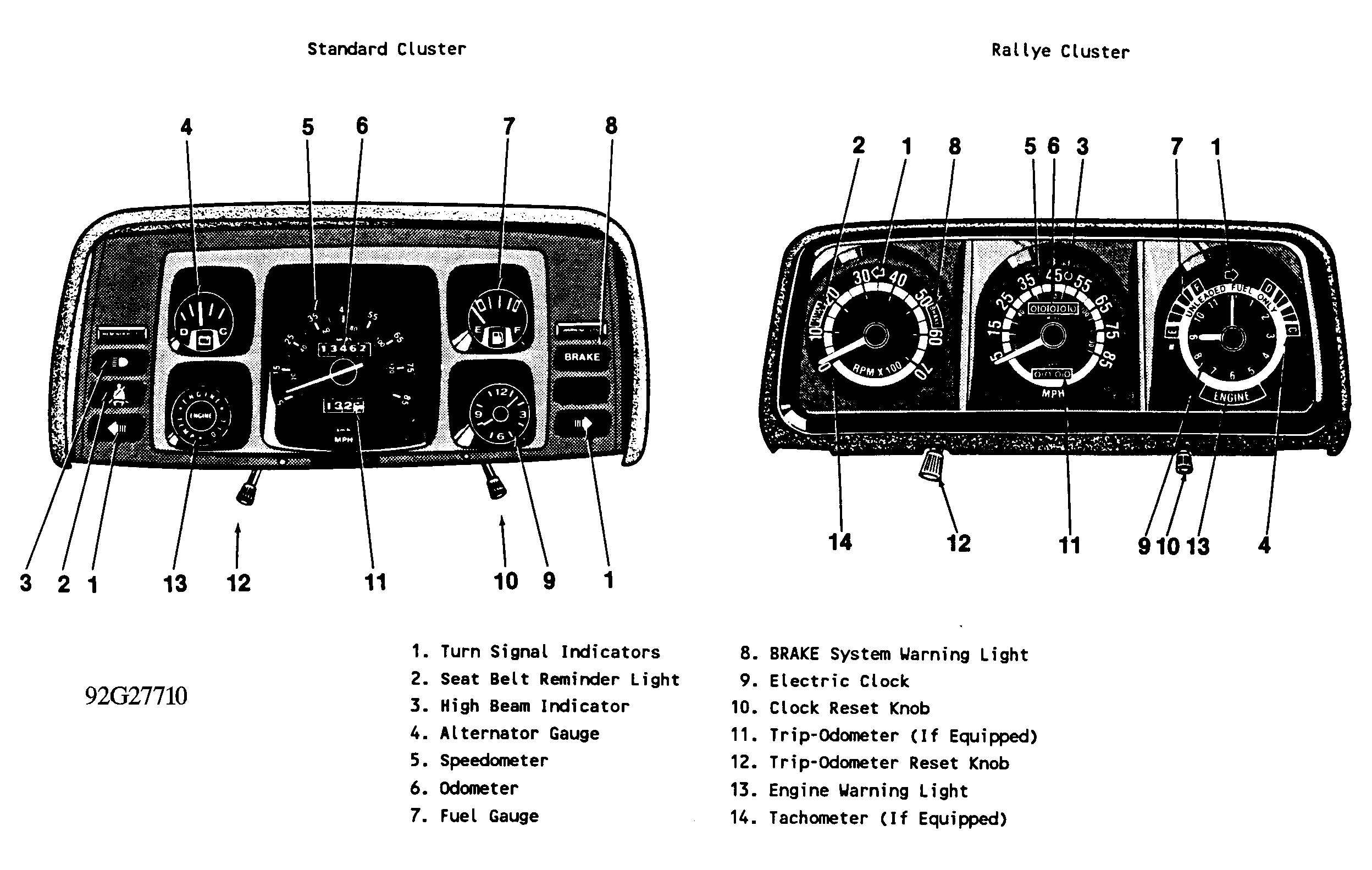

Fig 1: 1983 Instrument Panel Identification

Courtesy of CHRYSLER MOTORS.

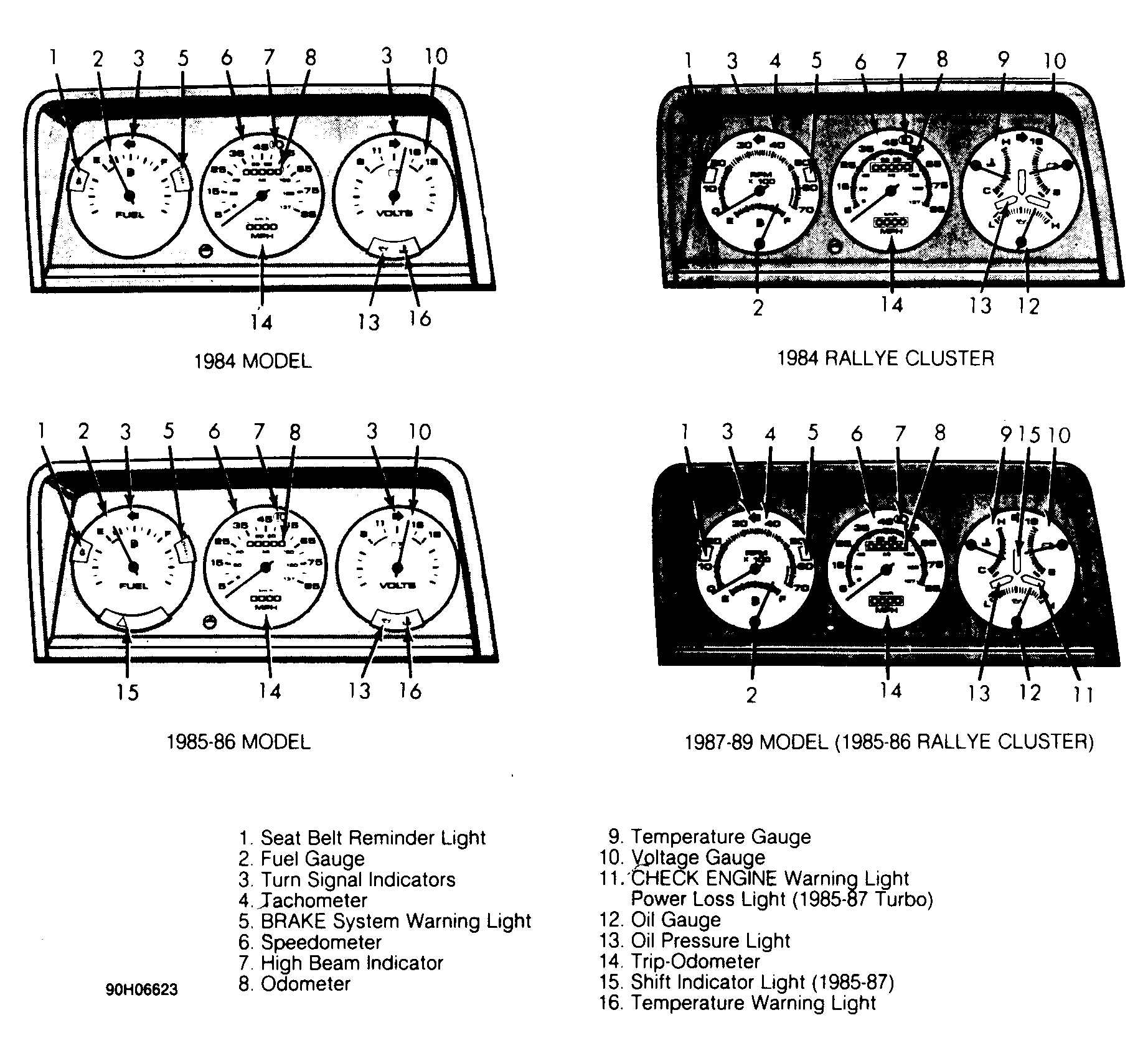

Fig 2: 1984-89 Instrument Panel Identification

Courtesy of CHRYSLER MOTORS.

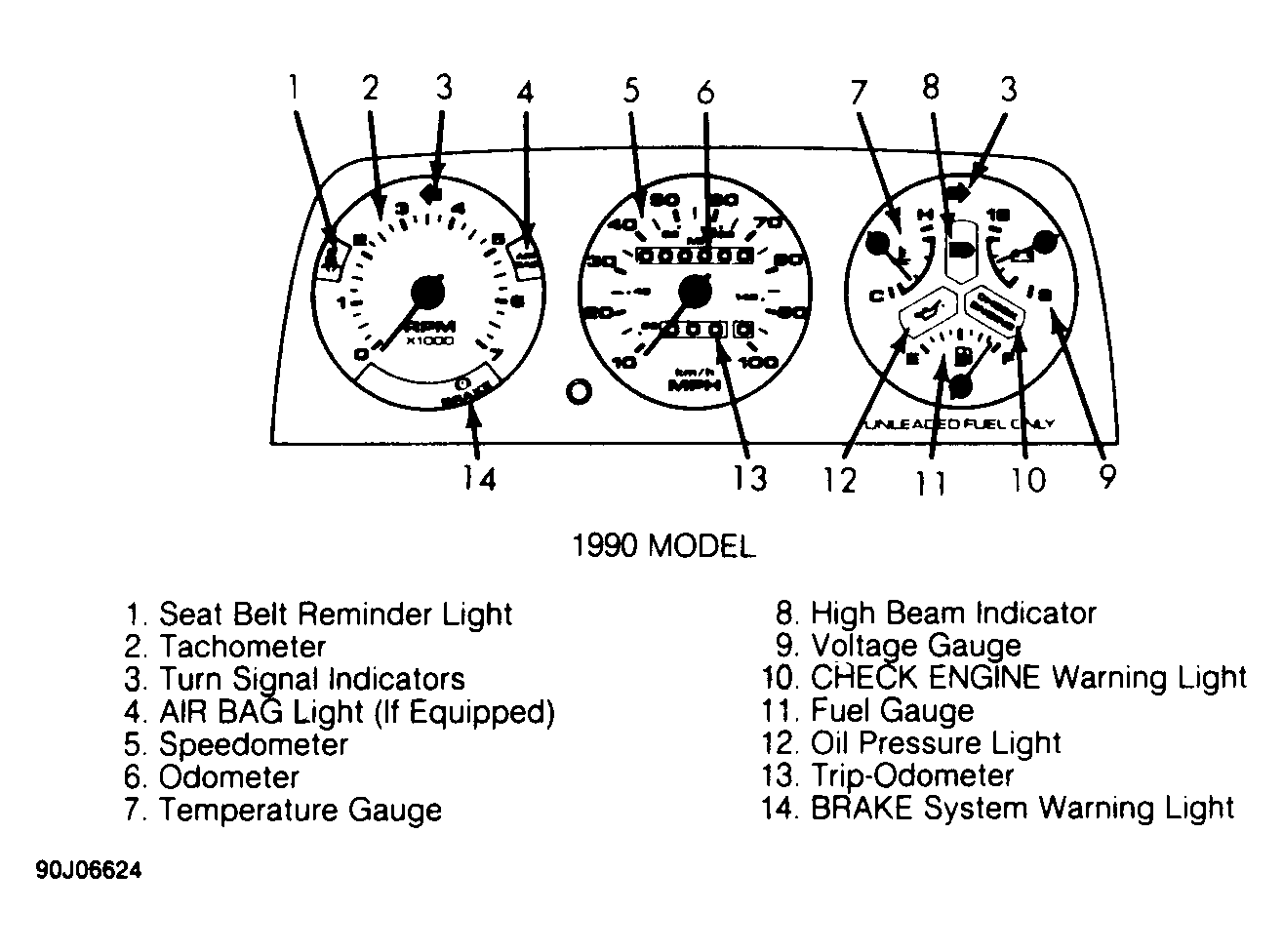

Fig 3: 1990 Instrument Panel Identification

Courtesy of CHRYSLER MOTORS.
