Dr-34, Checking Oxygen Sensor

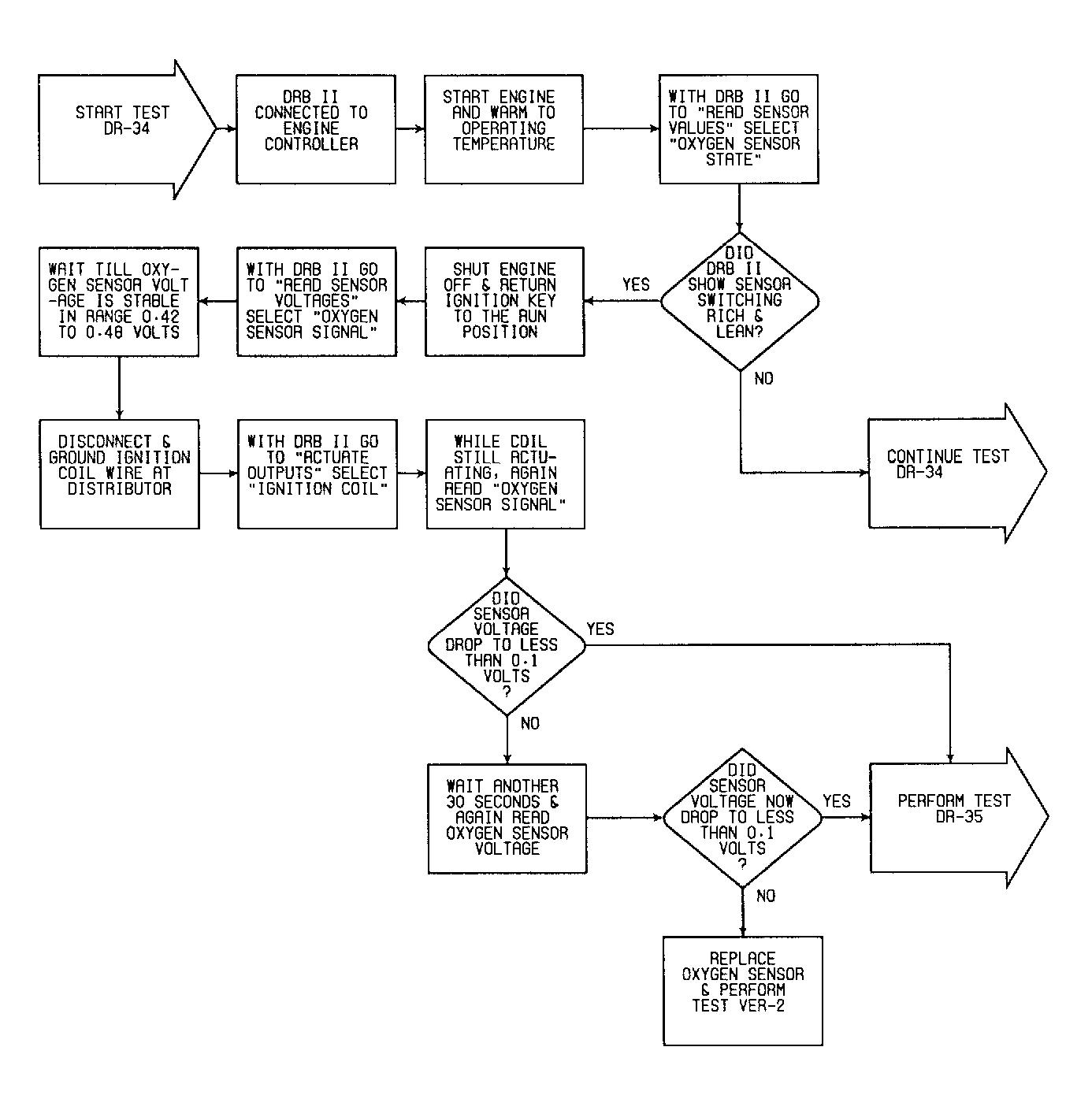

Fig 1: DR-34, Checking Oxygen Sensor (1 of 4)
G107283

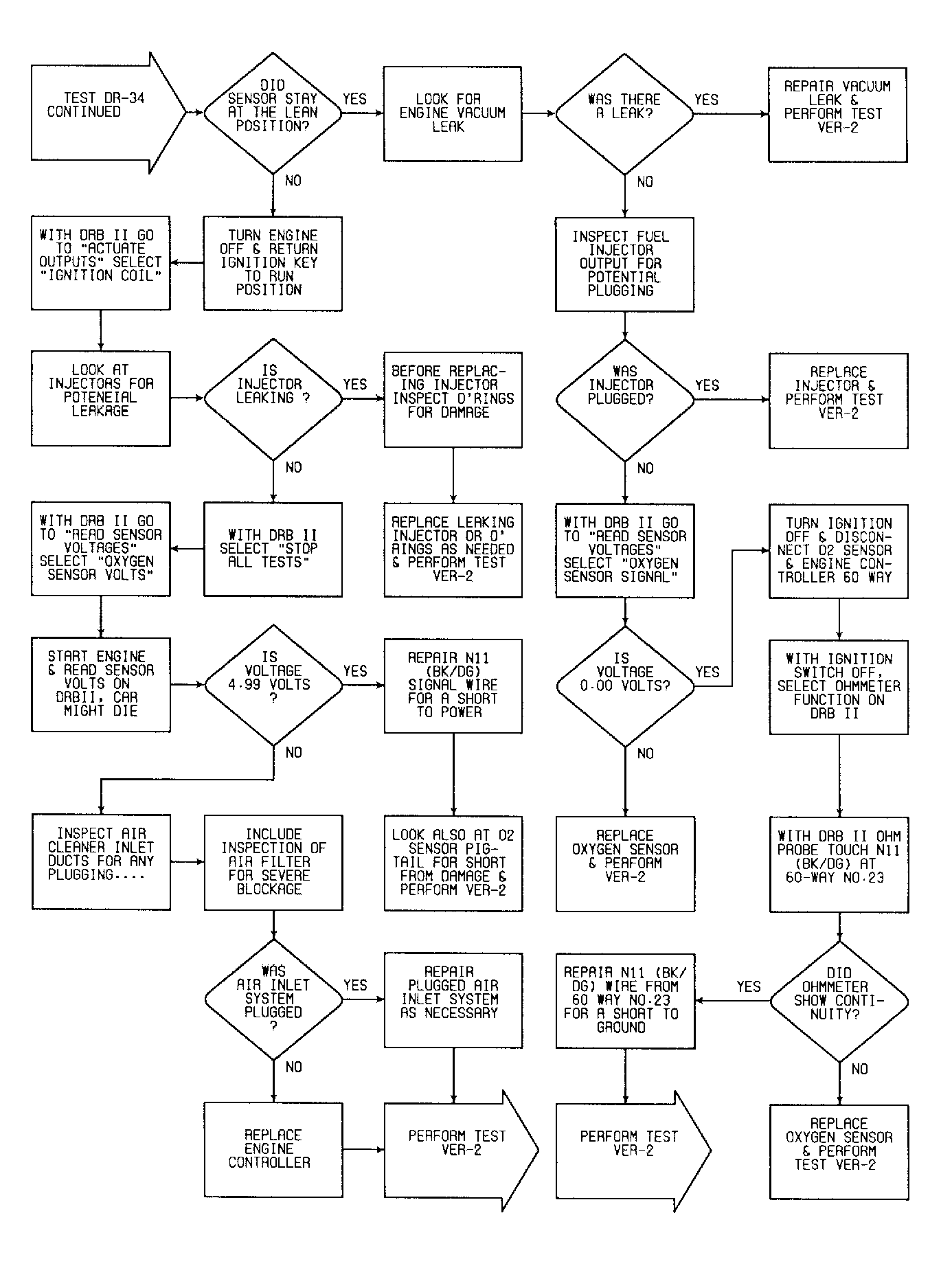

Fig 2: DR-34, Checking Oxygen Sensor (2 of 4)
G107284
Fig 3: DR-34, Checking Oxygen Sensor (3 of 4)
G107285

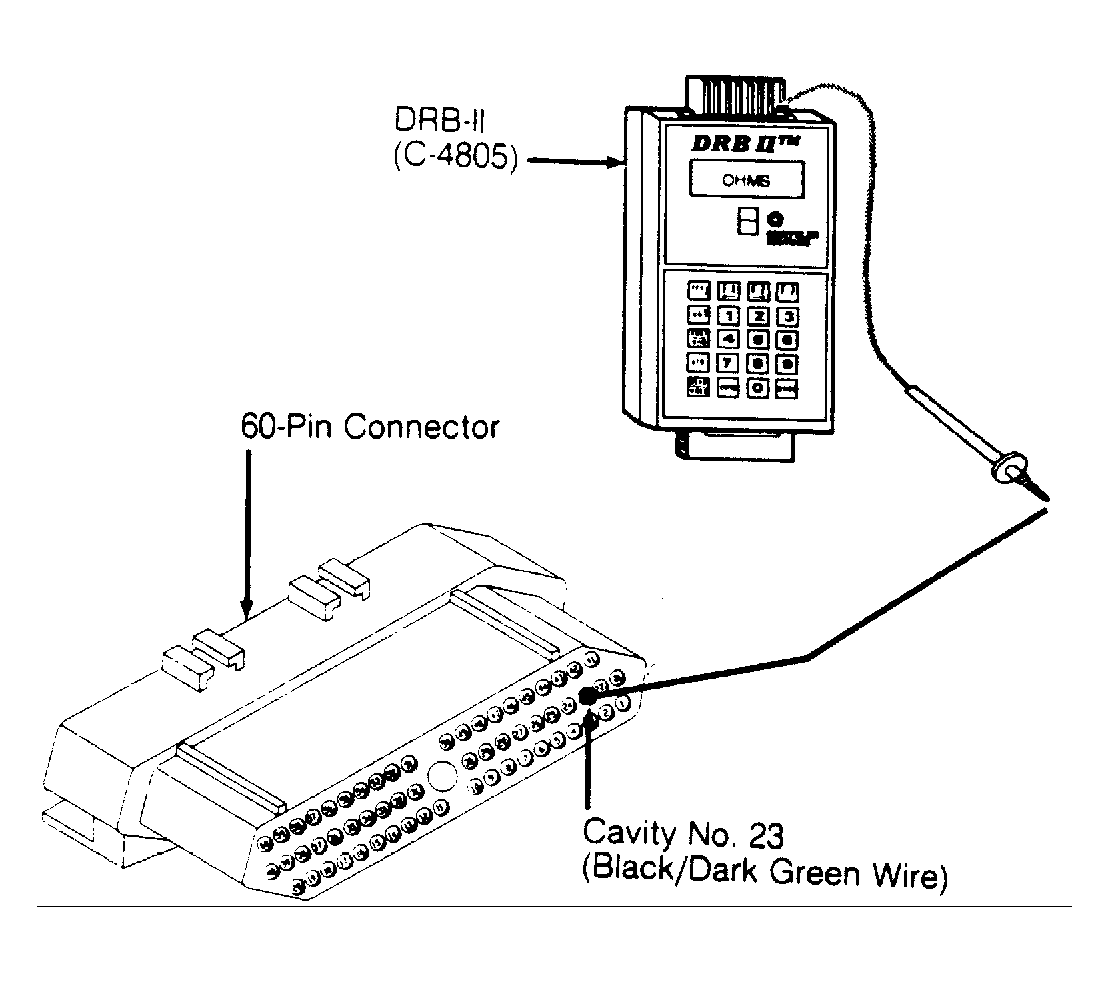

Fig 4: DR-34, Checking Oxygen Sensor (4 of 4)
G107286
