2.2L/2.5L SPFI Tests/Code
>>
DRIVEABILITY Tests
>>
Dr-32, Checking Secondary Ignition System
Dr-32, Checking Secondary Ignition System

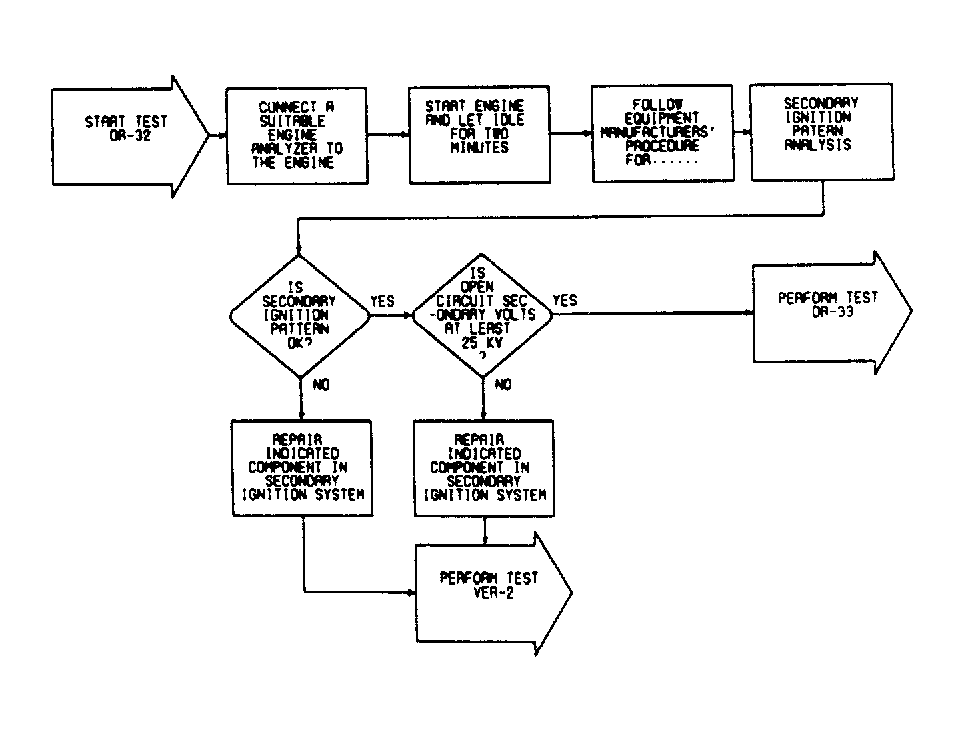

Fig 1: DR-32, Checking Secondary Ignition System
