Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| A/C Compressor Clutch Diode | In compressor clutch connector, ground side. | |

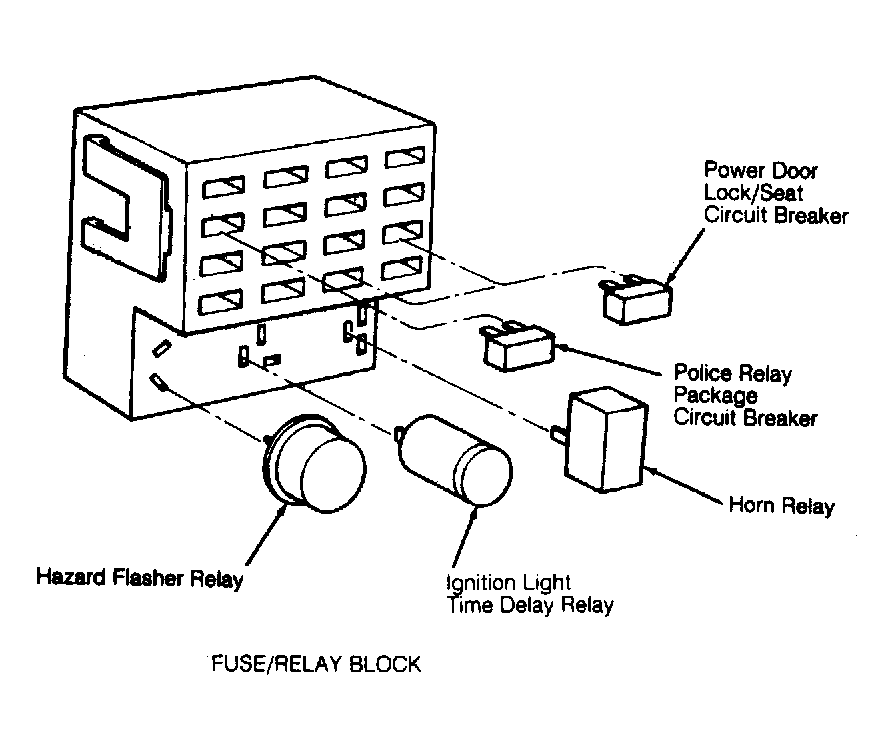

| Fuse/Relay Block | Under lower left side of dash. See Figure . | |
| Fusible Links | ||
| Accessories (Red) | At rear of left front wheelwell. | |
| Charging System (Black) | At rear of left front wheelwell. | |
| Hazard Flasher (Orange) | Behind battery. | |
| Headlight Switch (Gray) | At rear of left front wheelwell. | |
| Ign./Starter System (Orange) | At rear of left front wheelwell. | |
| Ignition System (Gray) | At rear of left front wheelwell. | |
| Instrument Cluster (Black & Red) | At rear of left front wheelwell. | |
| Police Relay Package Circuit Breaker | On fuse/relay block. See Figure . | |
| Power Door Lock/Window Circuit Breaker | On fuse/relay block. See Figure . | |
