Door Lock Power Relay

Check for continuity between terminals. See Fig 1 .

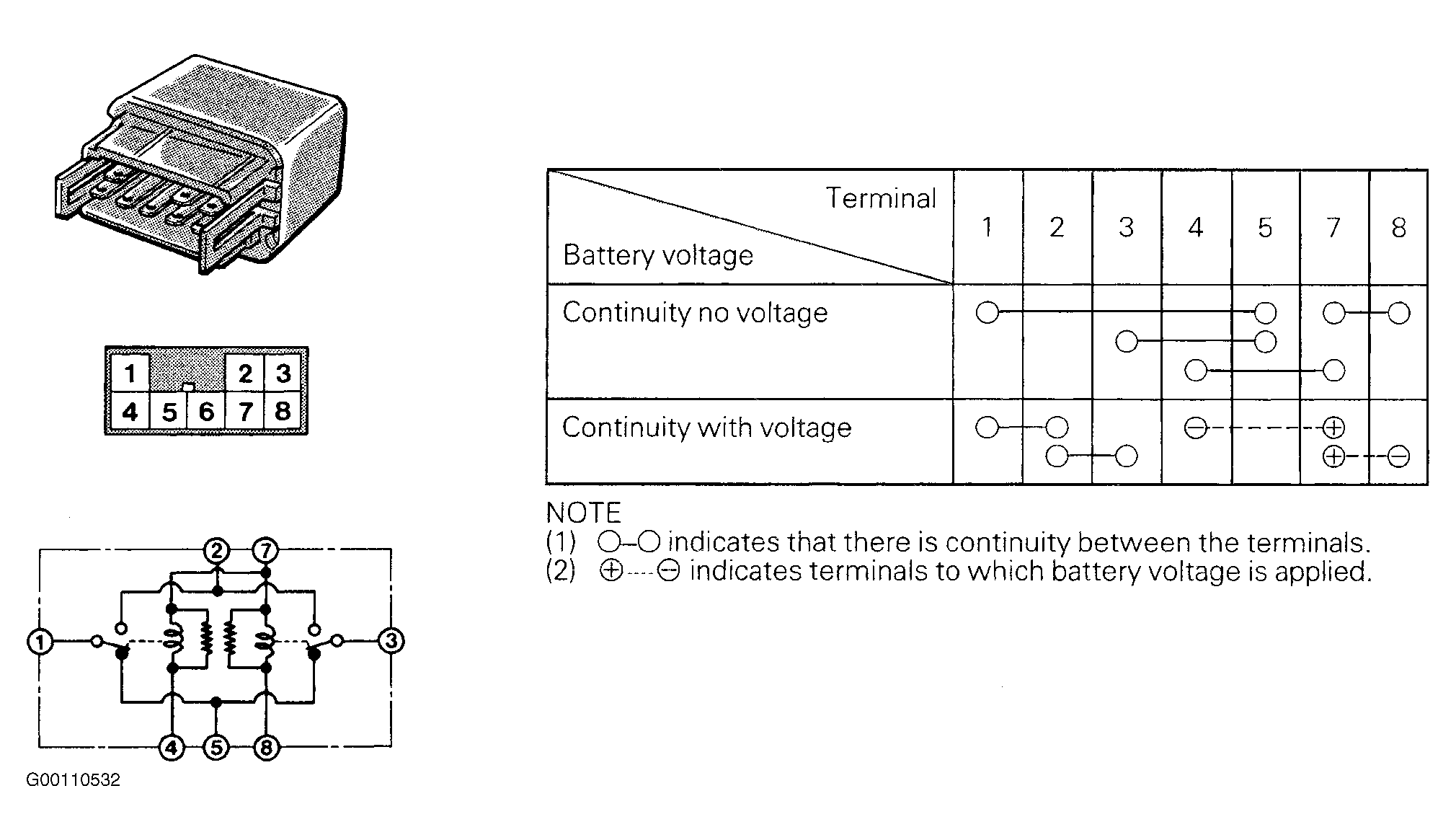

Fig 1: Door Lock Power Relay Continuity Test
G00110532Courtesy of CHRYSLER CORP.
