Throttle Body

  1. Disconnect negative battery cable. Remove air cleaner hose at throttle body. Remove throttle cable and transaxle linkage. Disconnect AIS and TPS connectors. See Fig 1.
  2. Disconnect and mark vacuum hoses from throttle body. Remove throttle body retaining nuts. Remove throttle body. To install, reverse removal procedure.

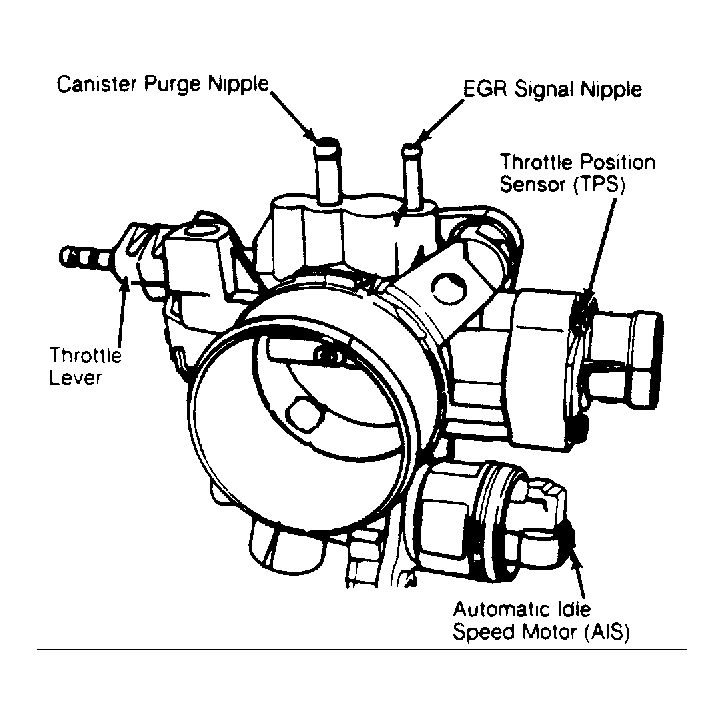

Fig 1: Throttle Body Connections
G12516Courtesy of CHRYSLER MOTORS.
