Wiring Diagrams

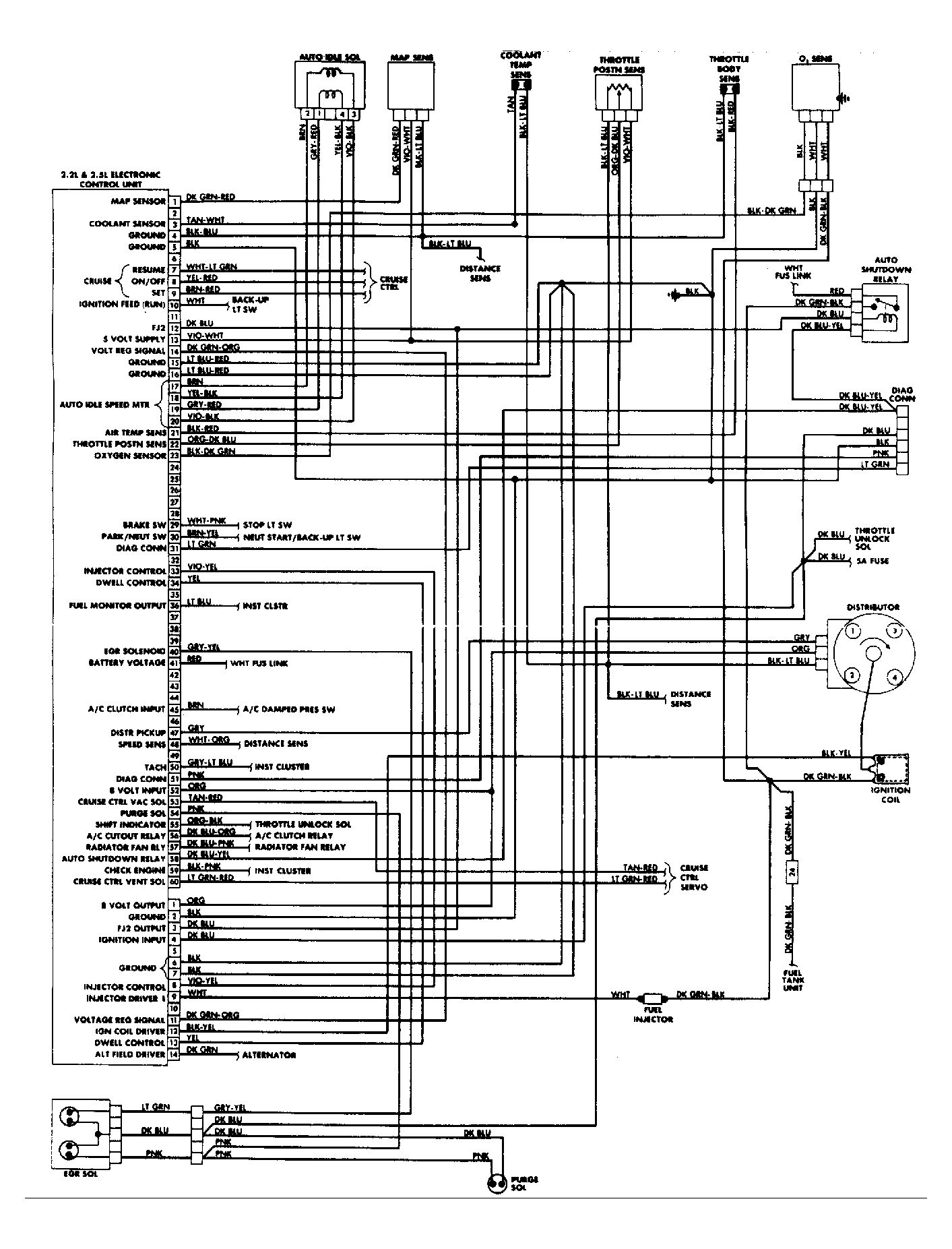

Fig 1: TBI System Wiring Diagram (Except Horizon & Omni)

G54308

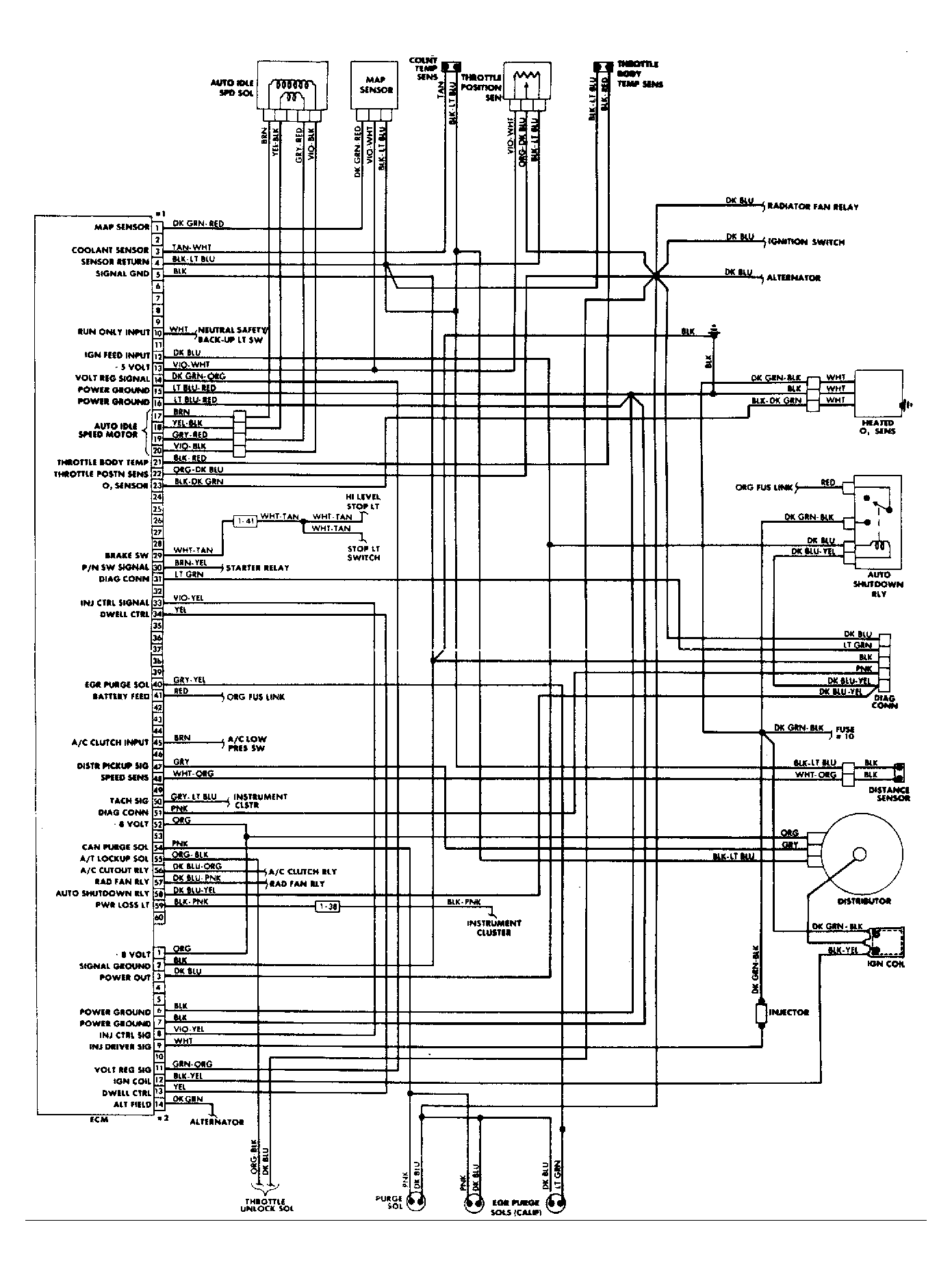

Fig 2: TBI System Wiring Diagram (Horizon & Omni)

G54309
