Home >> Plymouth >> 1988 >> Colt Vista 4WD >> Repair and Diagnosis >> Engine Performance >> System >> MPI System >> Wiring Diagrams

Wiring Diagrams

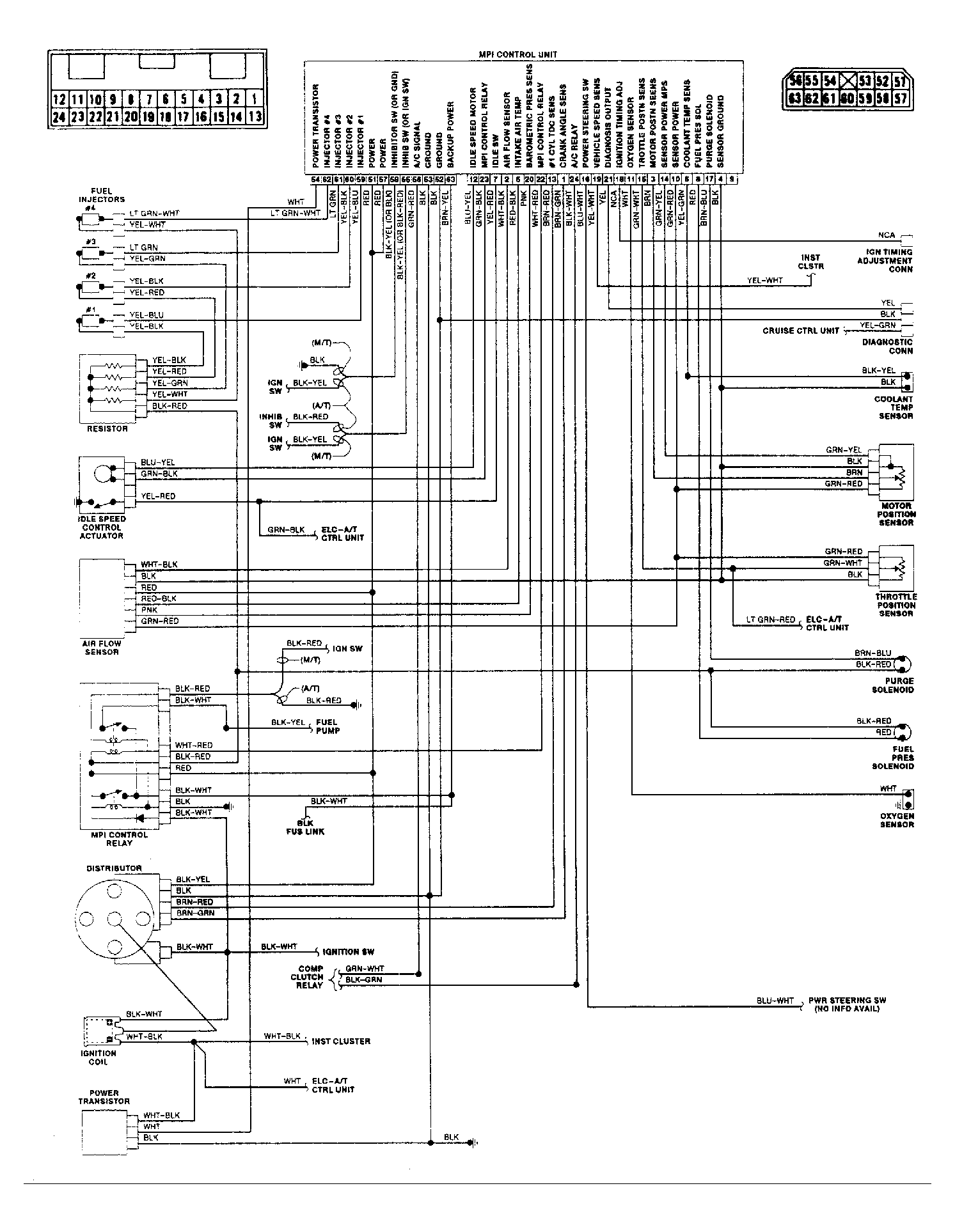

Fig 1: Wiring Diagram for Colt Vista

G94462
